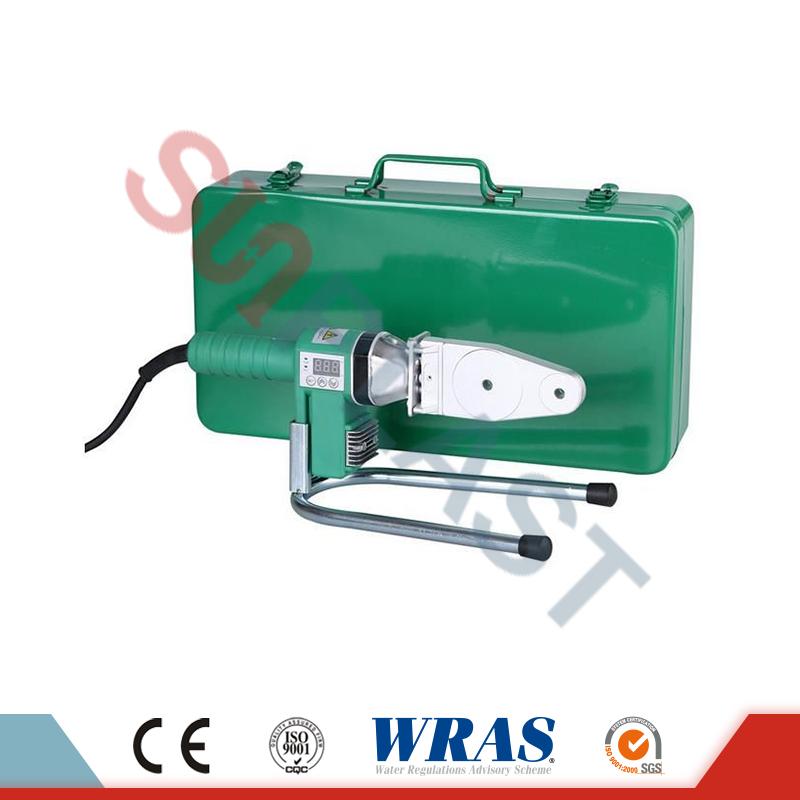

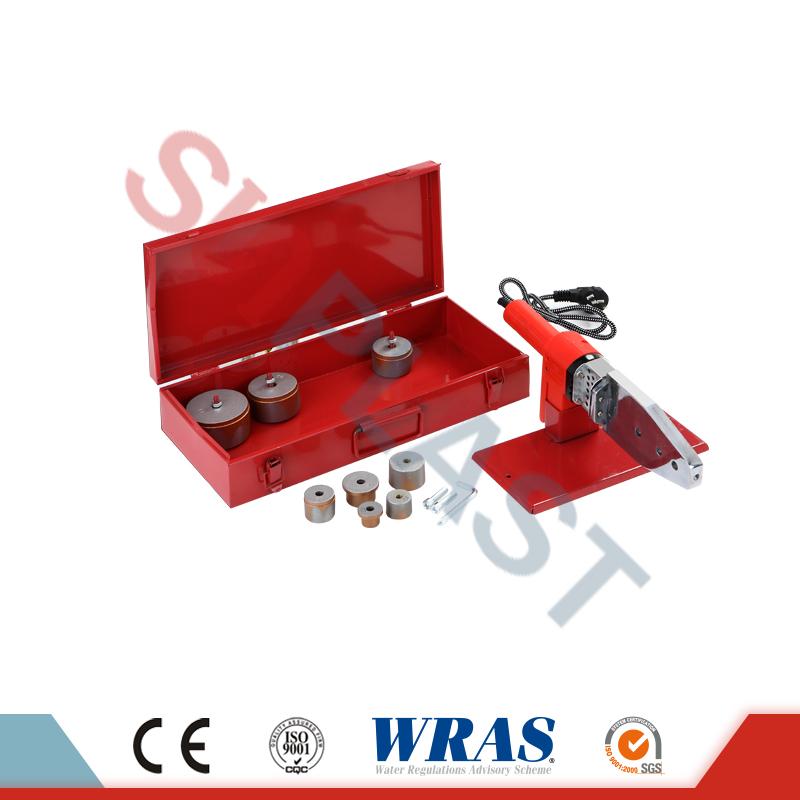

20-32mm Socket Fusion Welding Machine For PPR Pipe & HDPE Pipe
  • Air Pro20-32mm Socket Fusion Welding Machine For PPR Pipe & HDPE Pipe
  • Air Pro20-32mm Socket Fusion Welding Machine For PPR Pipe & HDPE Pipe
  • Air Pro20-32mm Socket Fusion Welding Machine For PPR Pipe & HDPE Pipe

20-32mm Socket Fusion Welding Machine For PPR Pipe & HDPE Pipe

Socket fusion welding machine for PPR pipe & HDPE pipe, available 20-110mm, easy operated,high quality warranted with 5 years, durable service time,competitive wholesale prices. Contact us for more details!!!

Send Inquiry

Product Description

20-32mm Socket Fusion Welding MachineSocket Fusion Welding Machine

Socket fusion is a major welding method for small diameter pipes. Socket fusion welding machine is mainly used for welding pipes made from HDPE, PPR. Socket fusion welding involves the use of a fitting. The process operation is generally manual. The welding cycle consists of a heating phase and a cooling phase. In socket fusion welding, a socket mounted on a hot plate is used to heat the outside surface of the pipe being welded. On the opposite side of the hot plate, a spigot is used to heat the inside surface of the injection moulded fitting.


SUNPLAST socket fusion welding machine are practical, easy to handle and safe, the welding machine is available with an adjustable electronic thermoregulator (TE), or with a fixed electronic thermostat (TFE).

This new TFE control system features a new self-diagnostic device, provided with an alarm, which would alert the operator in case of anomaly; at the same time, the heating element would switch off automatically. Thanks to an algorithm PID micro-controller, combined with a platinum sensor, the temperature control system can react faster to the external temperature fluctuations, and guarantee higher reliability and longer durability.


Product Detail

Product name

20-32mm Socket fusion welding machine for HDPE pipe & PPR pipe

Model

RS20-32SW

Welding range

20mm, 25mm, 32mm

Voltage

220V,50Hz

Input Power

600W / 800W / 1000W

Working Temperature

300℃±10%

Net Weight:

3.55kgs / set

Packing

Set / CTN

3 set / CTN

Weight / CTN

11kgs / CTN

Size / CTN

40*22*25 cm

Samples available

Free sample available if small quantity need.

Packing method

Cartons

MOQ

Negotiable

Production lead time

Depending on the order quantity.
     Normally about 20 days for a 20ft container

Warranty time

1 years for normal using

Payment term

T/T or LC at sight

FOB loading port

Ningbo or Shanghai China

Place of origin

Zhejiang, China


Contact us

Contact us freely for any inquiries on our products by following:
Email:
  export@sunplastpipe.com

           sunplastpipe@gmail.com
Telephone: 0086-574-87226883
Fax: 0086-574-87467583
Mob: 0086-15968493053

24 hours on line contact:
whatsApp: 0086-15968493053
Skype: polypipe-manufacturer


Sunplast, through over 15 years' development, is now known as one of the leading manufacturers and suppliers of 20-110mm socket fusion welding machine for ppr pipe & hdpe pipe in China. Our factory has introduced many advanced technologies and equipments into it. Please be free to buy the quality and low price products made in China from us.
