280-450mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

280-450mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn280-450mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Model:SPH450

Send Inquiry    PDF DownLoad

Product Description

280-450mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe


Butt fusion welding is the most popular welding method for HDPE piping system, and butt fusion welding machine is an industrial machine which is extensively demanded for welding purposes.


The SPH450 Hydraulic butt fusion welding machine are made of four parts, including: planing tools, heating plate, basic frame & hydraulic unit (if hydraulic type), see the structure as below:

400-630mm HDPE Pipe Butt Welding Machine


Features

※ Suitable for butt welding of plastic pipes and fittings made of HDPE, PPR and PVDF in a ditch in worksite or workshop.

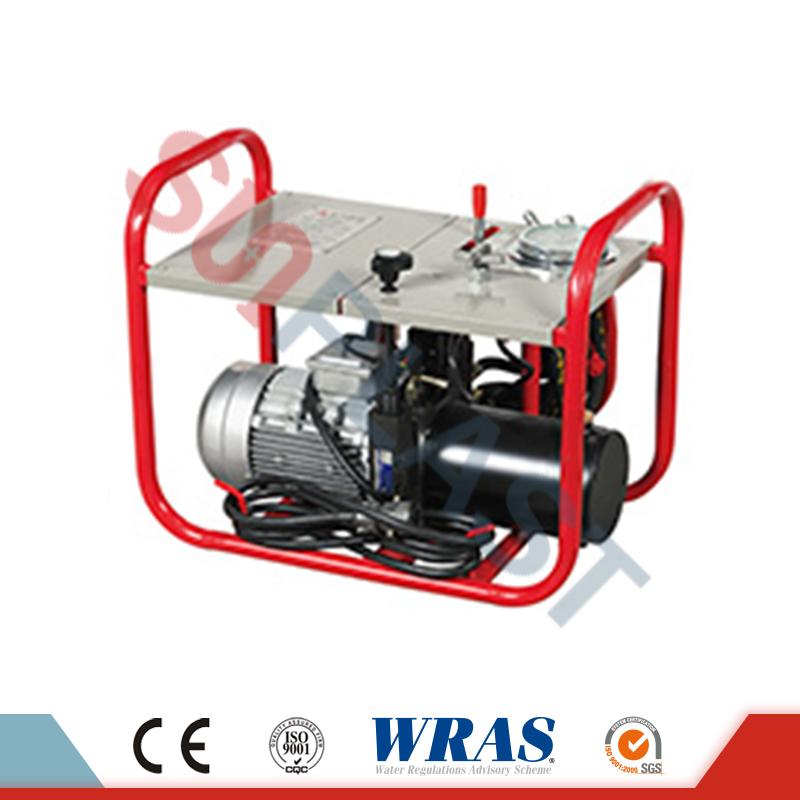

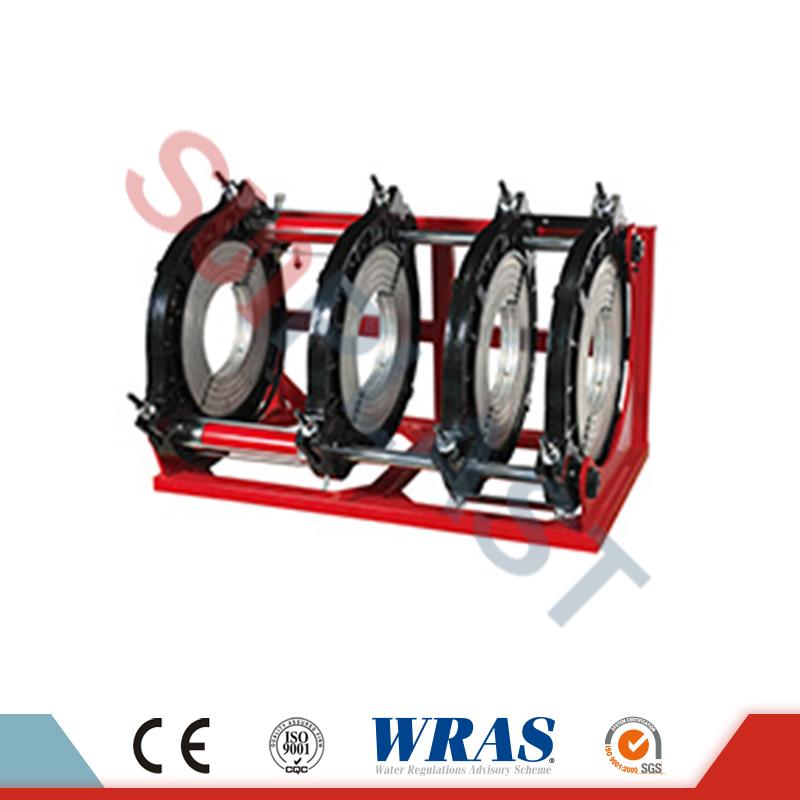

※ Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.

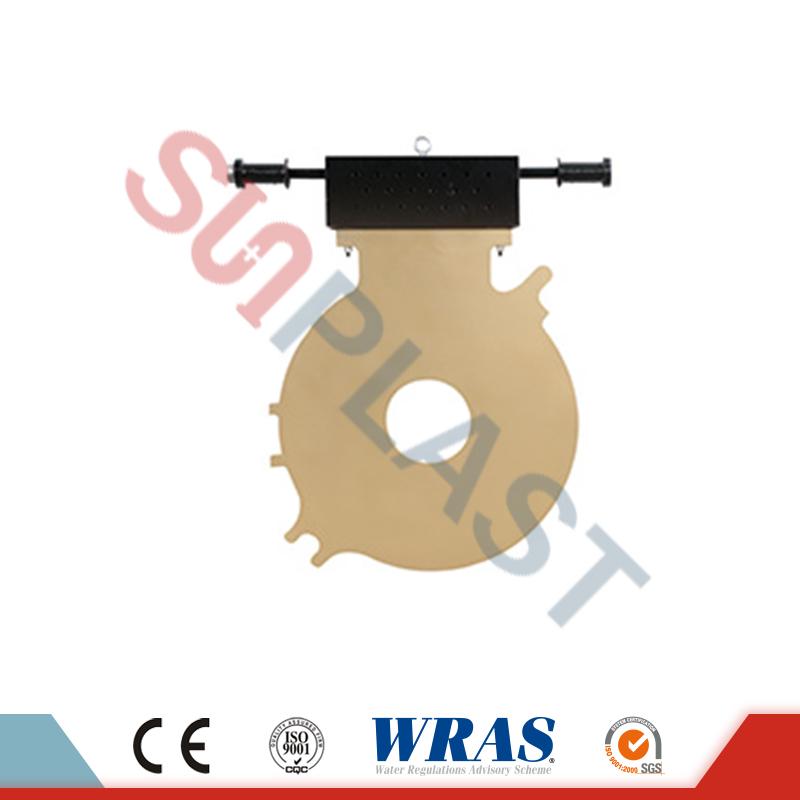

※ Removable PTFE coated heating plate with high accurate temperature control system;

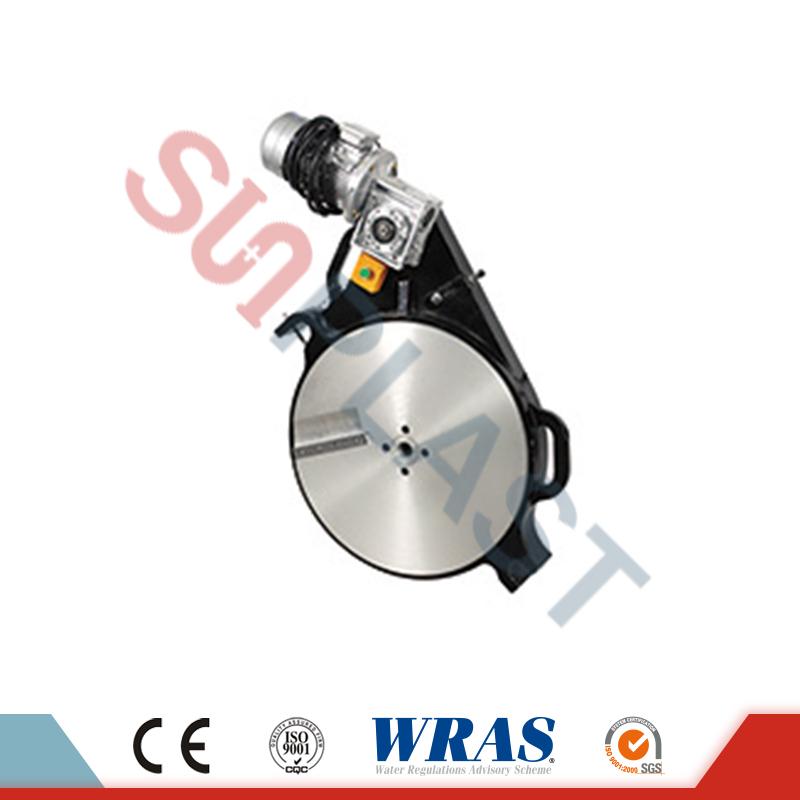

※ Electrical planing tool.
※ Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
※ Low starting pressure ensures reliable welding quality of small pipes.
※ Changeable welding position enables to weld various fittings more easily.
※ High accurate and shockproof pressure meter indicates clearer readings.

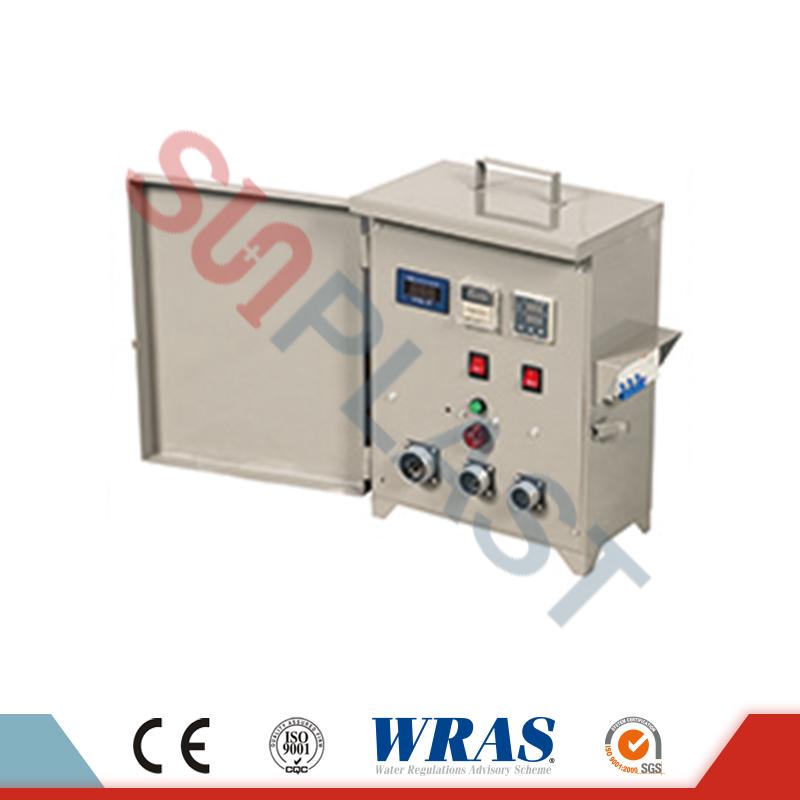

※ Separate two-channel timer records time in soaking and cooling phases.


Technical Parameter

Welding Range

280-450 (mm)

Temperature variable

± 5 ℃

Power supply

380V, 50-60HZ

Power of heating plate

5.2KW /380V

Max tolerance of welding Jointing

0.3mm

Power of planing tool

1.52KW / 380V

Power of hydraulic station

1.5KW / 380V

Total Power

8.22KW /380V

Heating plate Max. Temp.

300

Overall weight (kg)

400KGS

Clamp Size: 280,315.355,400,450mm

Packing size: three plywood cases 148*91*105, 86*101*123, 74*49*62(cm)  ;  Total  2.7 CBM
