90-250mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

90-250mm HDPE pipe butt fusion welding machine in manual or hydraulic operation, available size from dn90-250mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Model:SPH250

Send Inquiry

PDF Download

Product Description

SPH250 (90-250) Hydraulic Butt Fusion Welding Machine For HDPE Pipe

Butt fusion welding is the most popular welding method for HDPE piping system, and butt fusion welding machine is an industrial machine which is extensively demanded for welding purposes.

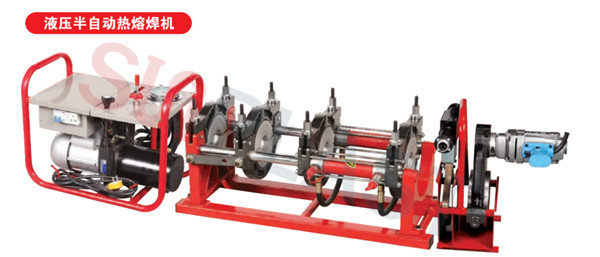

The SPH250 Hydraulic butt fusion welding machine are made of four parts, including: planing tools, heating plate, basic frame & hydraulic unit (if hydraulic type), see the structure as below:

160-315mm HDPE Butt Welding Machine


Features

※ Suitable for butt welding of plastic pipes and fittings made of HDPE, PPR and PVDF in a ditch in worksite or workshop.

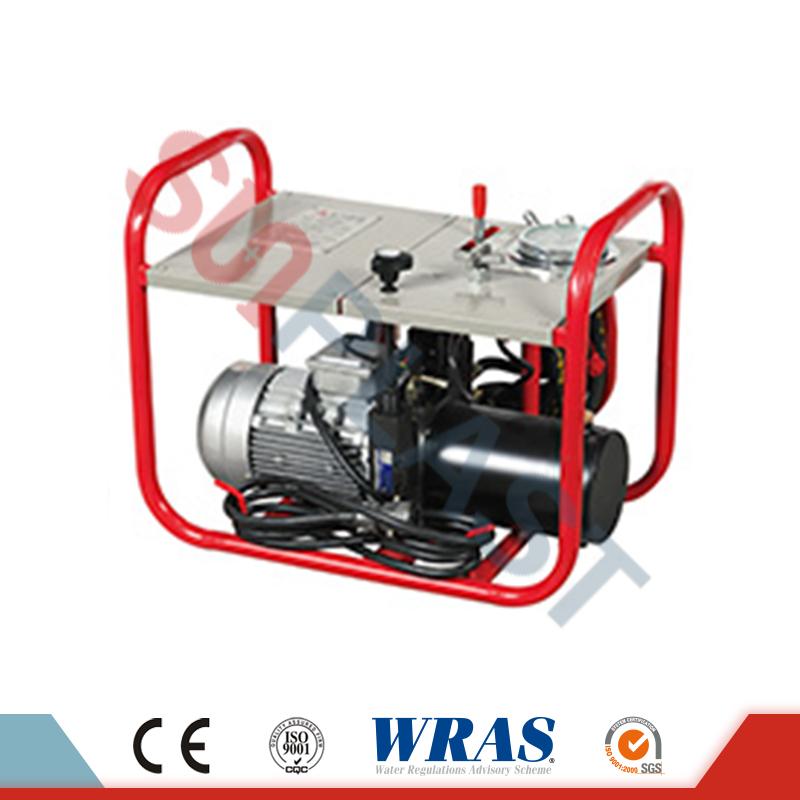

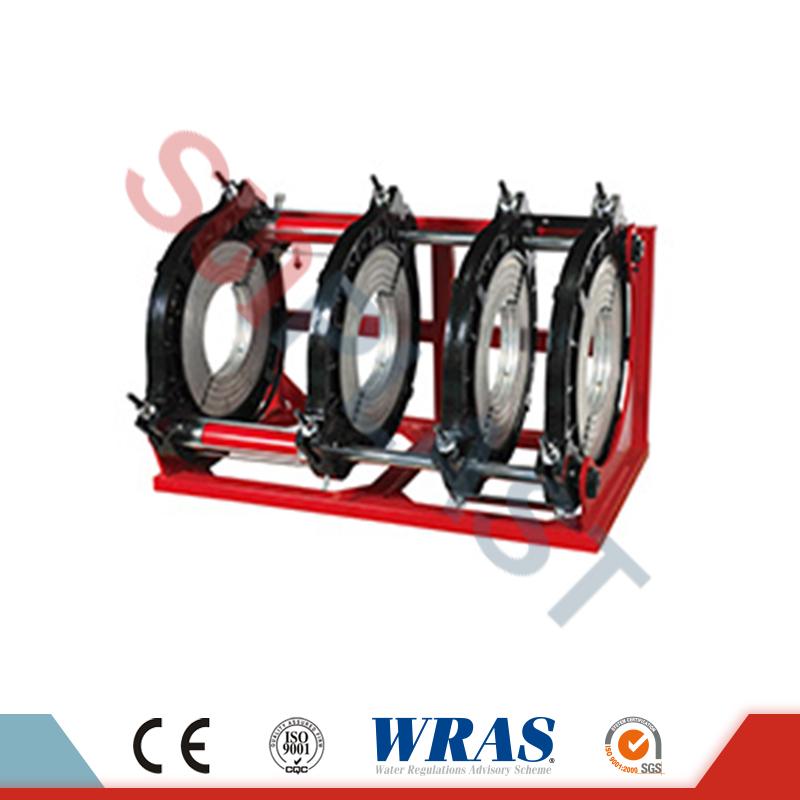

※ Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.

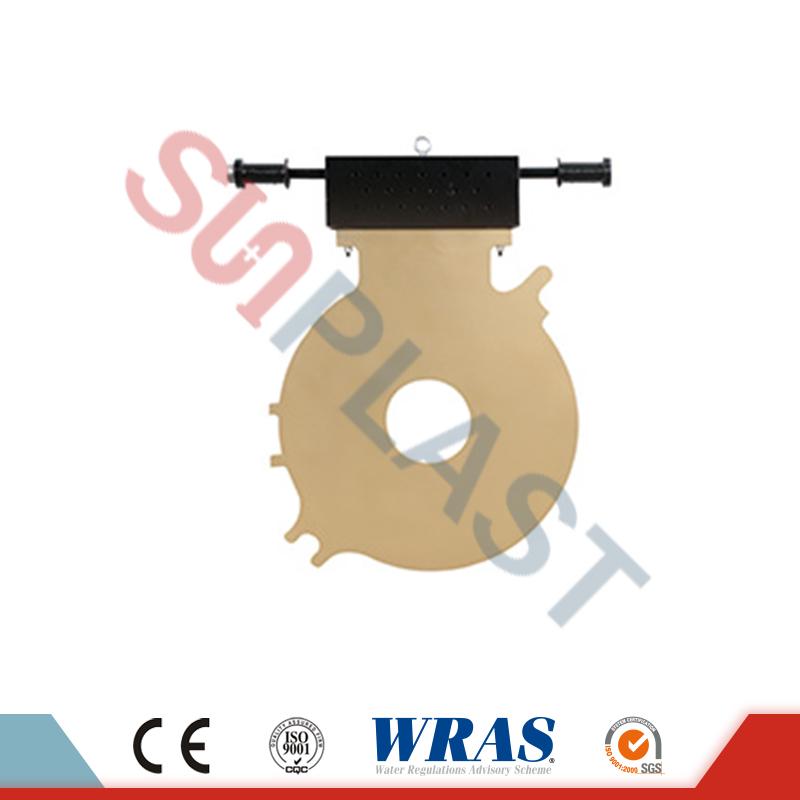

※ Removable PTFE coated heating plate with high accurate temperature control system;

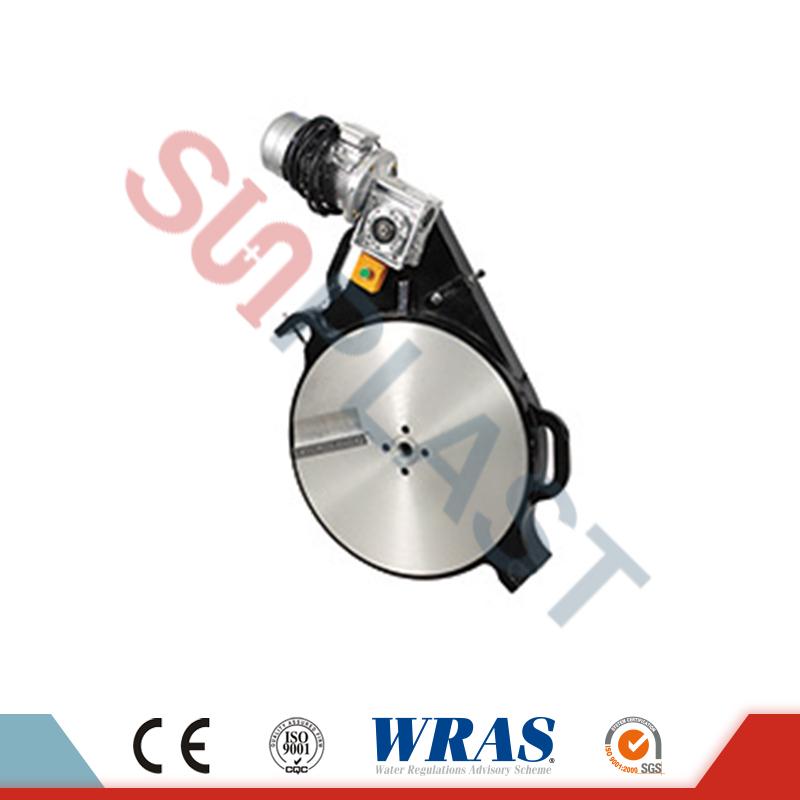

※ Electrical planing tool.
※ Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
※ Low starting pressure ensures reliable welding quality of small pipes.
※ Changeable welding position enables to weld various fittings more easily.
※ High accurate and shockproof pressure meter indicates clearer readings.
※ Separate two-channel timer records time in soaking and cooling phases.


Technical Parameter

Welding Range

90-250 (mm)

Temperature variable

± 3 ℃

Power supply

220V, 50-60HZ

Power of heating plate

2.0KW /220V

Max tolerance of welding

0.2mm

Power of planing tool

1.1KW / 220V

Power of hydraulic station

0.75KW / 220V

Total Power

3.85KW /220V

Heating plate Max. Temp.

300

Overall weight (kg)

145KGS

Clamp Size: 90,110,125,140,160,180,200,225,250mm

Packing size: three plywood cases 98*58*55, 59*55*72, 74*49*57(cm)  ;  Total  0.75 CBM
