HDPE Electrofusion Welding Machine Manufacturers

HDPE electrofusion welding machine is a indispensable welding tools for the connection of HDPE pipe & HDPE electrofusion fittings that SUNPLAST provide.



SUNPLAST HDPE electrofusion welding machine can weld HDPE pipe fittings dn20-630mm, and it is a special connecting device used to electrofusion connect the HDPE pipe for both water plumbing & & out door gas distribution. Our HDPE electrofusion welding machine is manufactured & designed according to ISO12176, and all the characteristics of electrofusion machine can achieved or exceed based on standards.



SUNPLAST HDPE electrofusion welding machine adopts advanced MCU control technology, which assure the reliability & durability during the use. The electrofusion welding machine has large size LCD screen as man-machine interface, supports multiple languages. The customers can easily set the welding data during the welding process. By using imported IGBT module and fast recovery diode as output power device, the whole HDPE electrofusion welding machine has the characteristics of small size, light weight, energy saving and so on.



SUNPLAST HDPE electrofusion welding machine can be divided/provided into four models, based on output power & available welding diameter: SPE315, SPE400, SPE500, SPE630

Product name

Model

Working Power

Available Welding Range

HDPE Electrofusion Welding Machine

HDPE Pipe Electrofusion Machine

SPE315

3.5KW

20-315

SPE400

4.2KW

20-400

SPE500

5.0KW

20-500

SPE630

15KW

20-630

 Download the price list HDPE ELECTROFUSION WELDING MACHINE

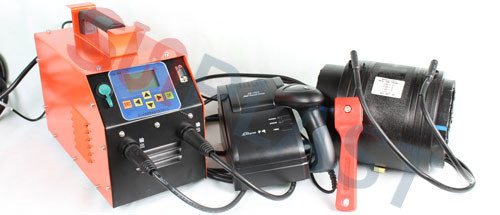

HDPE electrofusion machine


The main benefits that SUNPLAST HDPE electrofusion welding machine has as below:

※  Design & manufactured into ISO12176 international standard for HDPE electrofusion welding machine

※ High level MCU control core, large LED screen display, showing all welding parameter.

※ Light weight, small size, easy to operate, save manual costs.

※ Full welding process monitoring, can terminate & improve the abnormal welding process immediately.

※ More than 500 welding records memory available.

※ Intelligent welding by bar code scan for automatic welding, or manual set welding parameter

※ Good retroactivity, all welding parameter can be stored or download in a U disk


The technical parameter of SUNPLAST HDPE electrofusion welding machine:

Model

SPE315

SPE400

SPE500

SPE630

chine Parameter and main ability



Precision Voltage Control

0.5%

Precision Current Control

0.5%

stability

0.2%

load rate

95%

80%

Data Record Quantities

500

USB

USB Reading & Writing Abilities

Scanner

Scanner Ability

Printer

Printing welding record abilities

Weight

≤ 10Kg

12Kgs

20Kg

≤ 34Kg

Working Time

It can work 24 hours constantly

Working Model

Constant Voltage, Constant Current

Dimension

42mmx23mmx39mm

42mmx23mmx39mm

45mmx25mmx42mm

48mmx28mmx45mm

Input Voltage

Voltage AC220v ±20%
Frequency 50-60HZ

Voltage AC380v ±20% or AC220v ±20%
Frequency 50-60HZ

Output Voltage

Voltage 10~75V
Frequency 50-60HZ

Voltage 10~75V
Frequency 50-60HZ

Voltage 10~75V
Frequency 50-60HZ

Voltage 10~210V
Frequency 50-60HZ

Output Current

55A

55A

65A

80A

Working Power

3.5KW

4.2KW

5KW

15KW

Protection

Power Supply

Over-voltage Protection and under-voltage Protection,suits all kinds of electrical grid working environment

Outpower

short circuit,open circuit protection

Overheating

Overheating Protection

IGBT Protection

Using Importation IGBT chip,improving frequency of electricity power transition and stability prominently

Resistance  Value identity

It can detect the Resistance value of Resistance wire in electrofusion fittings interior, eliminate failure due to Resistance wire damage after welding process.

Environment

Utility Environment

-15~45ºC

Storage temperature

-30~70ºC

temperature

20%~90%RH,no water Coagulation

Elevation height

Below 1000 meters

Environment Temperature reimbursement

Equip with temperature reimbursement ability, it can adjust temperature via chip control


SUNPLAST is ready to provide our best quality HDPE electrofusion welding machine to all customers around the world.
