SPL160-4M Manual Butt Fusion Welding Machine
  • SPL160-4M Manual Butt Fusion Welding MachineSPL160-4M Manual Butt Fusion Welding Machine
  • SPL160-4M Manual Butt Fusion Welding MachineSPL160-4M Manual Butt Fusion Welding Machine
  • SPL160-4M Manual Butt Fusion Welding MachineSPL160-4M Manual Butt Fusion Welding Machine

SPL160-4M Manual Butt Fusion Welding Machine

SPL160-4M Manual Butt Fusion Welding Machine,available welding sizes from dn63-160mm, high quality warranted with 1 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!

Model:SPL160-4M

Send Inquiry

Product Description

SPL160-4M Manual Butt Fusion Welding Machine For HDPE Pipe
Butt fusion welding is the most popular welding method for HDPE piping system, and butt fusion welding machine is an industrial machine which is extensively demanded for welding purposes.

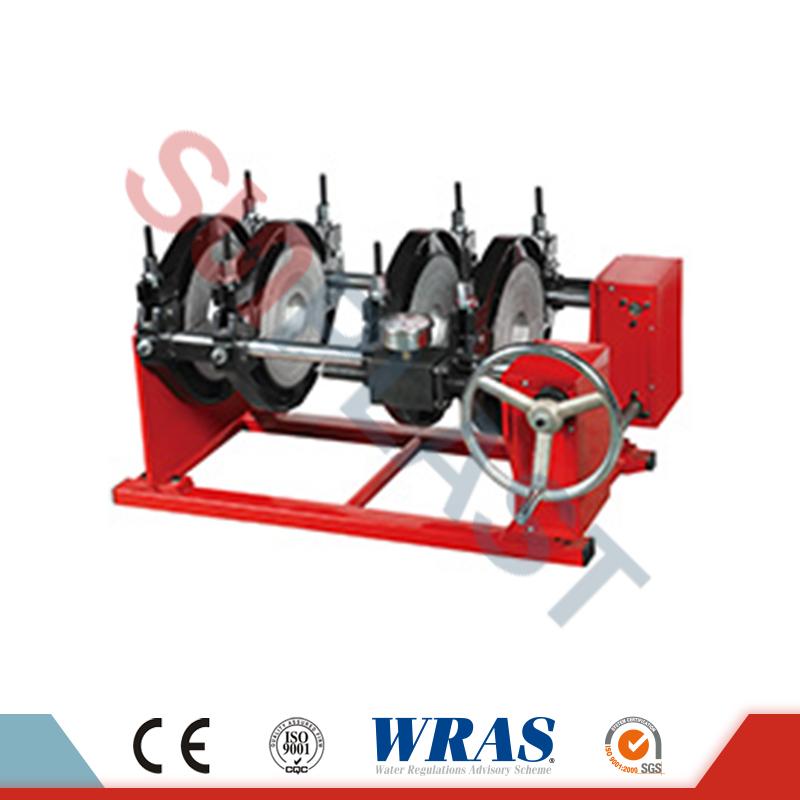

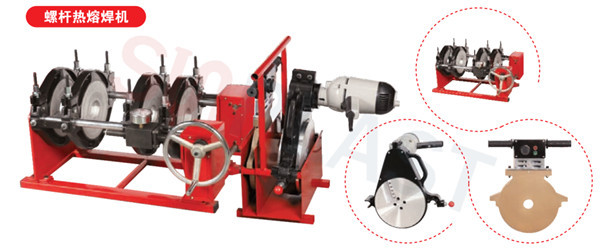

The SPL160-4M manual butt fusion welding machine are made of three parts, including: planing tools (trimmer), heating plate, basic frame.



Features

1. Applied to connect PE, PP &. PVDF pipe and pipe fitting on construction site, and in workshop.

1. Consist of Basic frame, trimmer, Heater, and support of heater & trimmer

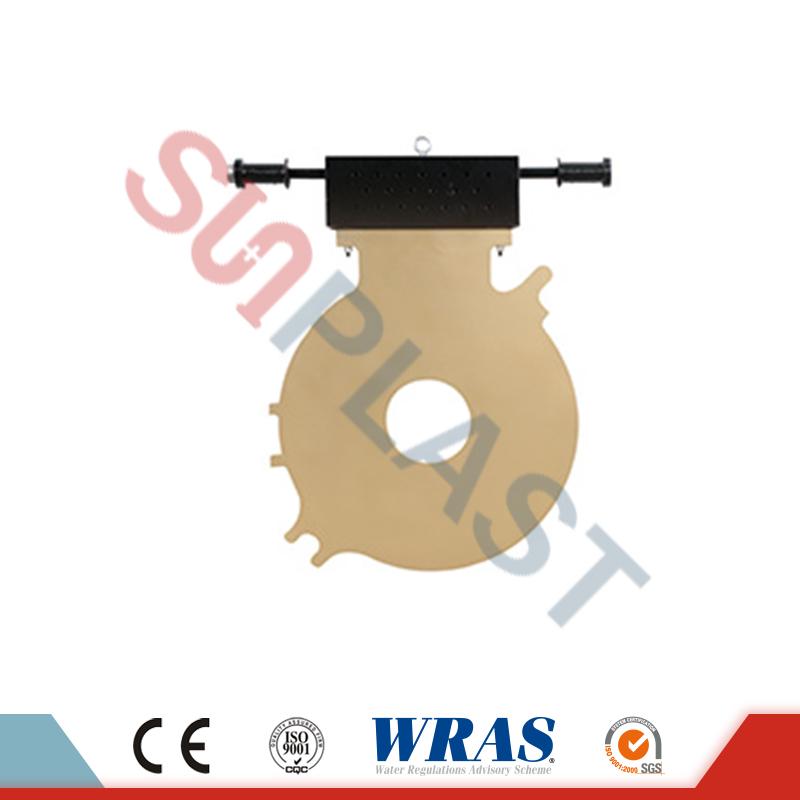

2. Removable PTFE coated heating plate with separate temperature control system.

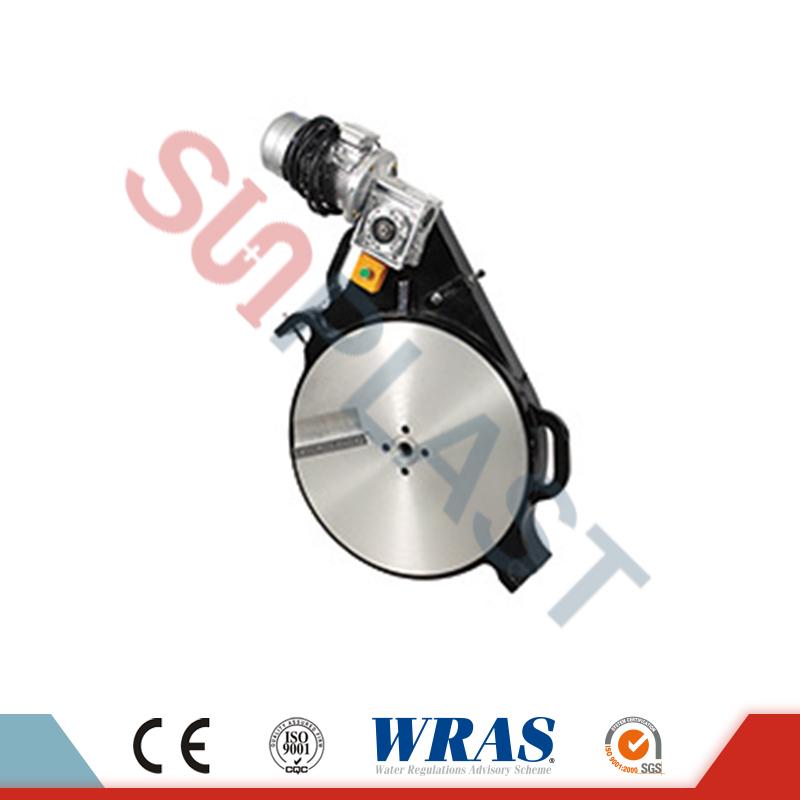

3.  Electric Trimmer with reversible double cutting edge blades.
4. Be made of Aluminum  material, easy to carry and transport.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the time and temperature.

7. International warranty for 12 months.


Technical Parameter

Welding Range

63-160 (mm)

Temperature variable

± 3

Power supply

220V, 50-60HZ

Power of heating plate

1KW /220V

Max tolerance of welding

0.2mm

Power of planing tool

0.9KW / 220V

Power of hydraulic station

--

Total Power

1.9KW /220V

Heating plate Max. Temp.

300

Overall weight (kg)

52KGS

Clamp Size: (50),63,75,90,110,125,140,160mm

Packing size: one plywood cases 77*57*45(cm)  ;  Total  0.2 CBM
