Dredge Pipe Floater/floats

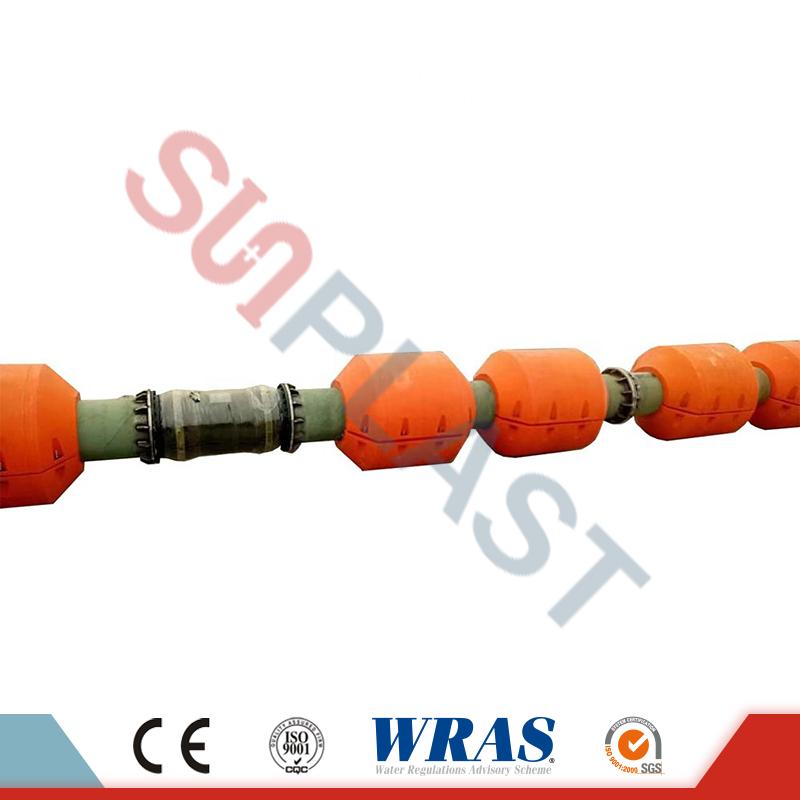

Dredge Pipe Floats/Floater for offshore discharge dredge work. Dredge Pipe Floats/Floater is made of LDPE outer shell & filled with PU foam inside. The Dredge pipe Floats/Floater is a ideal solution for dredge work. Contact us for more deatils of prices for Dredge pipe Floats/Floater for your dredge work!

Send Inquiry

Product Description

Dredge Pipe Floats/Floaters for offer-shore dredge work

HDPE Dredge Pipe

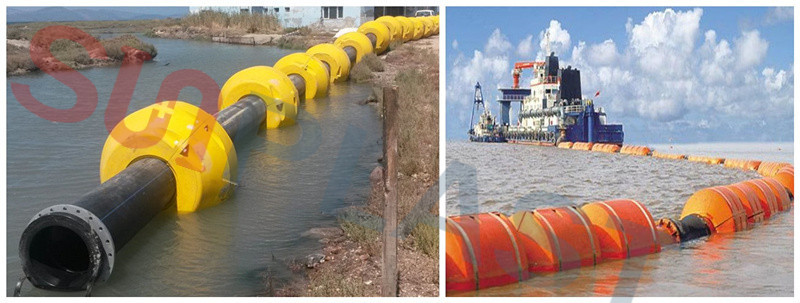

Dredge Pipe Floats/Floaters' outer shell is made from high wear resistant LDPE material with excellent flexibility by rotational molding technology, filled inside with high strength polyurethane closed-cell foam. The Dredge Pipe Floats/Floaters are designed to be supplied with SUNPLAST HDPE dredge pipe & flexible rubber hoses, and it can provide sufficient buoyancy to assure the dredge pipeline floating above the water level.

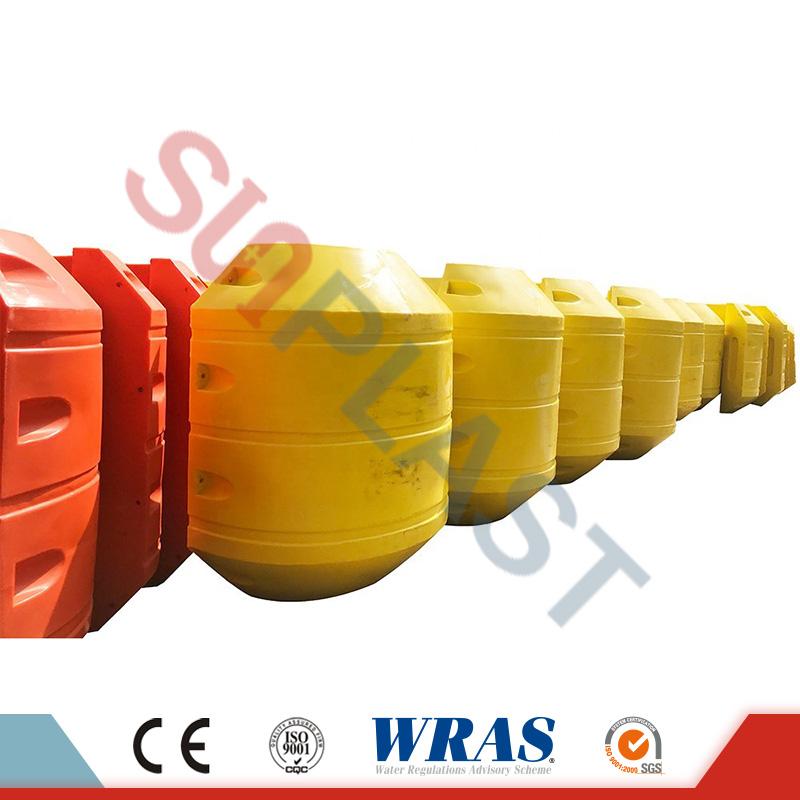

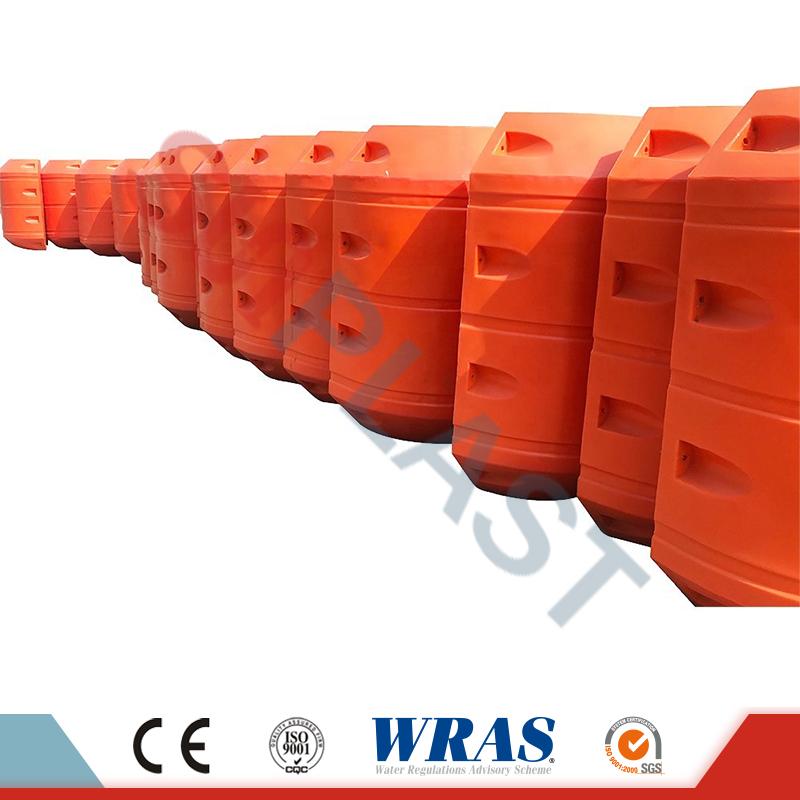

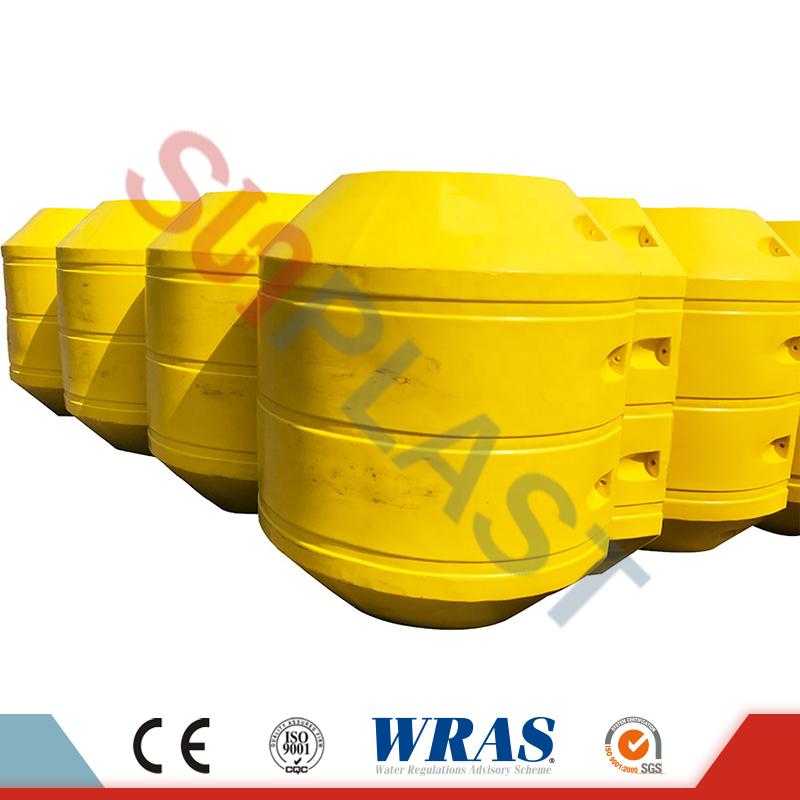

SUNPLAST Dredge Pipe Floats/Floaters are normally produced into YELLOW or BLUE colors that to act as warning signs to other vessels nearby. The other colors can also be made as per requests.


To assure long-time service outside, a UV stabilizer must be added to while manufacturing, which ensure the Dredge Pipe Floats/Floaters have a good UV-stabilization.


SUNPLAST Dredge Pipe Floats/Floaters are composed by two halves, the inside diameter of pipe floats will be same (or slight smaller) to HDPE dredge pipe's outer diameter, so the Dredge Pipe Floats can be fixed tightly on the HDPE dredge pipe without slipping. Two halves of pipe floats are connected by bolts/nuts that are made by galvanized steel (or stainless steel if request).


Thanks to the excellent structure, the Dredge Pipe Floats/Floaters can absorb or reduce the energy from vessel collision and protect the dredge pipelines that they are supporting. Double reinforced bolts/nuts on every float ensures a safe and secure connection to the pipe.


The Dredge Pipe Floats/Floaters have become the ideal solution & a necessity for moden dredge work.

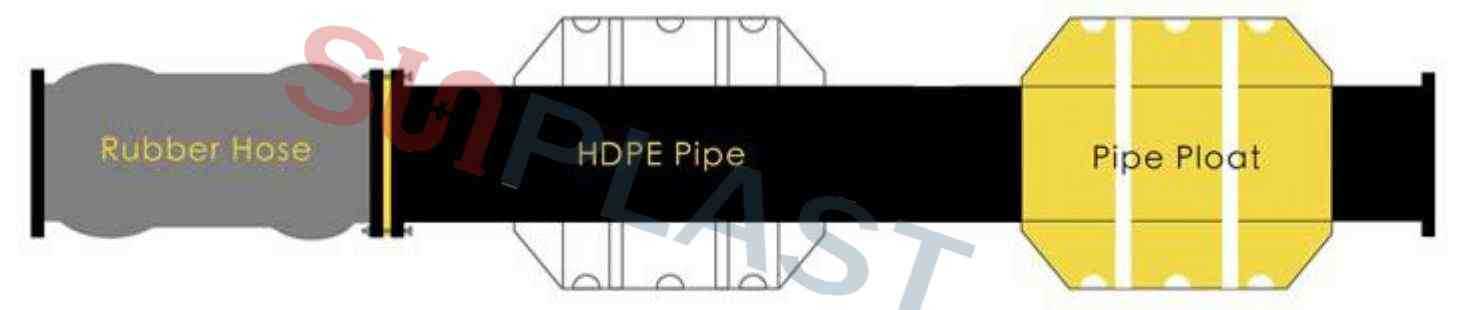

HDPE Dredge Pipe - Pipe Floats


Features of Dredge Pipe Floats/Floaters

The Dredge Pipe Floats/Floaters have been the first choice of dredge work, because they have many excellent performance:

※ The pipe floats' floating structure is equipped with shock and wave resistance, compact and reasonable structure, easy installation and excellent performance.
※ Good Toughness, strong environmental stress cracking resistance (ESCR), which assure dredge pipe floats/floaters being appropriate for offshore and lake construction
※ Light weight, high resistance to wear, being convenient to install and transport, and low cost of transportation and transformation.
※ Resistance to corrosion and climate, the dredge pipe floats/pipe floats are 3 times more than steel buoy in terms of life span.
※ Easy, fast and flexible assembling diversified modeling.
※ Low price and cost performance is significantly better than that of steel buoy.
※ resistance to impact, and acid-proof alkaline, anti-corrosive etc, which allows the dredge pipe floats/floaters servicing for long time on the sea.
※ Simple installation and low maintenance costs
※ service temperature range-60°C-80°C


Specification Of Dredge Pipe Floats/Floaters

SUNPLAST can provide different specifications of Dredge Pipe Floats/Floaters for customers' options, covering most of all HDPE dredge pipe that we can provide.


The dredge pipe floats/floaters' I.D. shall be same or slight smaller than HDPE dredge pipe's O.D., so they will not slip while fixed on the HDPE dredge pipe.

Floater I.D.

 (HDPE Dredge Pipe O.D.)
(mm)

Floater O.D.

(mm)

Floater Length

(mm)

Thickness Of MDPE Shell

 (mm)

Net Buoyancy

(kg/pcs)

160/180

500

800

6

300

200/225

600

700

7

250

250/280/315

700

900

7

410

315

1100

1000

7

500

355

1100

1100

7

550

400/450

1200

1200

8

1200

450/500

1300

1300

8

1250

500/560

1300

1500

9

1350

560/630

1400

1600

9

1600

630

1480

1600

11

1950

630/710

1550

1800

12

2200

710

1620

1900

12

2300

710/800

1700

2000

13

2700

800

1850

2100

14

3200

900

2000

2400

15

4600

1000

2040

2500

16

4900

1200

2400

2600

16

6500

Downlaod Catalogue: HDPE Dredge Pipe - Dredge Pipe Floats -  Rubber Hose


Technical Index Of Dredge Pipe Floats/Floaters

SUNPLAST Dredge pipe floats/floaters are made into superior quality that can service for long-time, the pipe floats can fully meet with the below technical index:

Item

Technical Index Of Hull

Item

Technical Index Of PU foam

Tensile Strength

12Mpa

Water Absorption

2g/100cm³

Break Elongation

≥10.1%

Breaking Strength

0.08-0.1Mpa

Impact Strength

31.4KJ/

Breaking Elongation

4-6%

Bending Strength

≥15.7Mpa

Compressive Strength

0.18-0.24Mpa


Loading & Shipment

SUNPLAST Dredge Pipe Floats/Floaters have been exporting to more than 20 countries, such as Bangladesh, India, Singapore, South Africa, Zambia, Netherlands, Denmark, Paraguay.,etc. Thanks to the superior quality, all customers are satisfied about our products.


SUNPLAST Dredge Pipe Floats/Floaters have become the first choice for our customers.

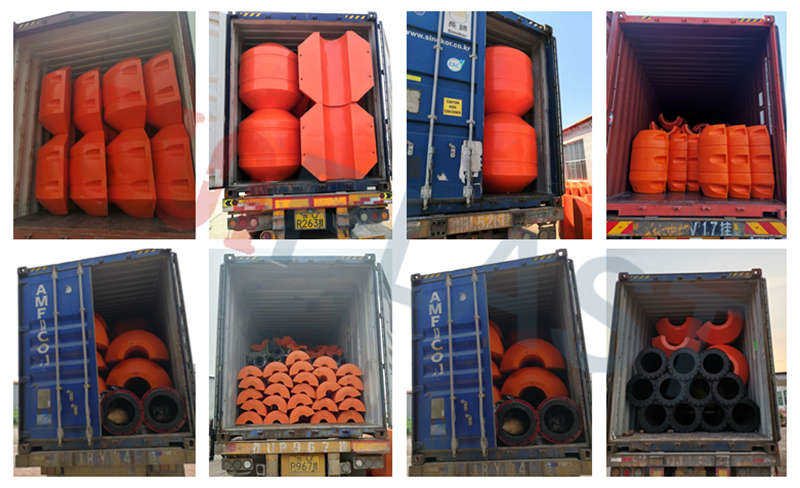

Dredge Pipe Floats Loading
