HDPE Pipe Welding Machine Manufacturers

Whats HDPE pipe welding machine?

Normally, HDPE pipe is supplied in bars of 5.8m or 11.8m. To connect the pipes together or connect the pipes & fittings, HDPE pipe welding machine is a necessary tools.


HDPE pipe welding machine, also called HDPE pipe fusion machine or HDPE pipe welding equipment, is a kind of heat-fusion machine, which is designed for HDPE pipe. By fusion the surface of pipe ends (or fittings ends) to make the molecular structure recombined, so the HDPE pipes (or HDPE pipe fittings) connected together.


What kind of HDPE pipe welding machine can SUNPLAST provide?

SUNPLAST can provide the HDPE pipe welding machines for various models, which are available for pipe diameter dn20-dn1200mm.


The HDPE pipe welding machine can be divided into three categories:


HDPE PIPE BUTT WELDING MACHINE

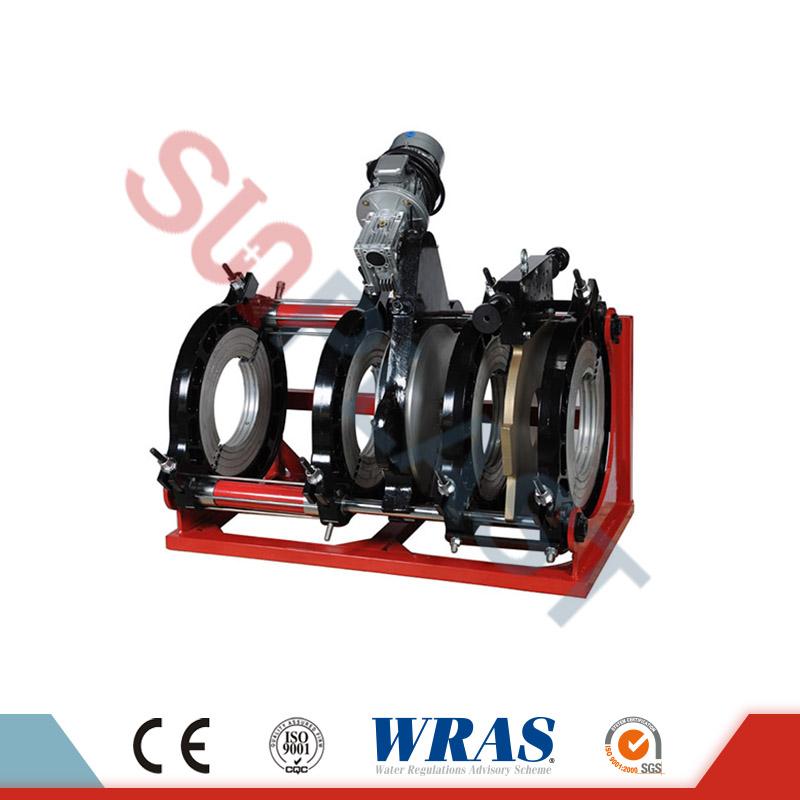

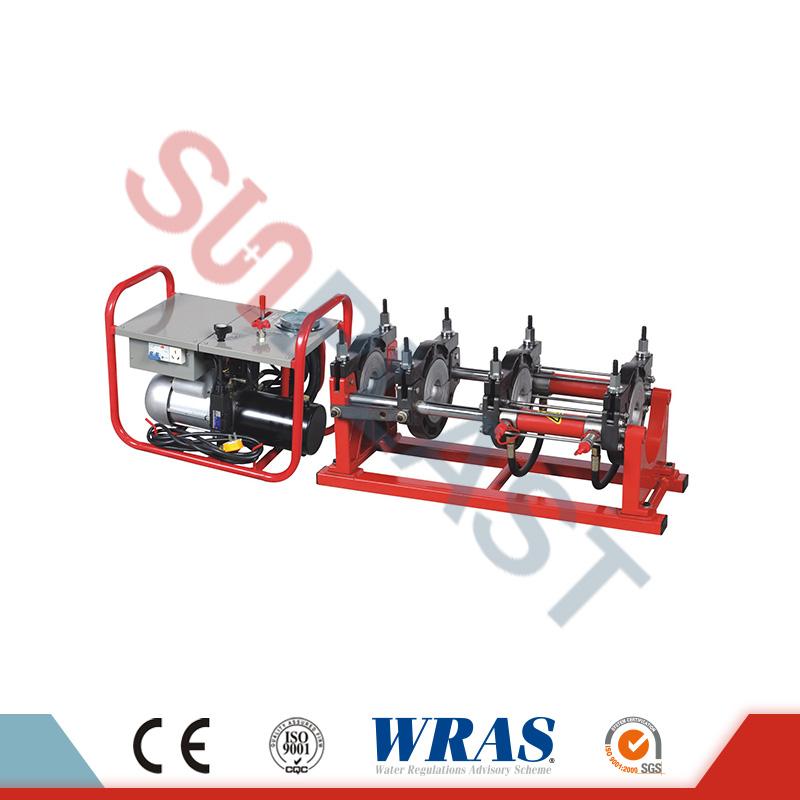

HDPE Pipe Butt Fusion Machine

HDPE pipe butt fusion machine is the most common machine that be used for HDPE pipe welding, which can cover almost all diameters larger to 50mm.


The butt welding process is performed by HDPE pipe butt welding machine, using a heating plate to fusion both HDPE pipe (or fittings) planed ends, and then remove the heating plate, finally two pieces are pressed together and allowed to cool under pressure, forming the desired bond.


The HDPE pipe butt fusion machines normally consist five parts, which are: basic frame, hydraulic unit, electric planing tool, frame support & heating plates.,etc.


Most of our HDPE pipe butt fusion machine we provide are HYDRAULIC type, but at the same time, we can also provide MANUAL type HDPE pipe butt fusion machine for small diameter:

Welding Machine Type

Models or specifications available

HDPE Pipe Butt Fusion Machine - Manual Type

50-160mm, 63-200mm, 90-250mm

HDPE Pipe Butt Fusion Machine - Hydraulic Type

50-160mm, 63-200mm, 90-250mm, 110-315mm, 160-355mm, 280-450mm, 280-500mm, 450-630mm, 630-800mm, 710-1000mm, 1000-1200mm

download the price lists    HDPE PIPE BUTT FUSION MACHINE



HDPE electrofusion machine

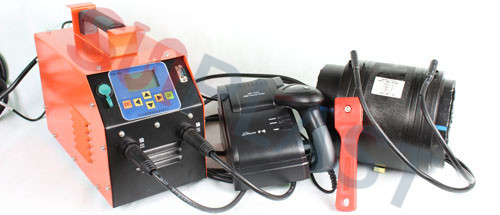

HDPE Pipe Electrofusion Machine

HDPE pipe electrofusion machine is normally designed & used for the HDPE electrofusion fittings that SUNPLAST can provide.


The HDPE electrofusion fittings have been implanted brass coils placed around two ends. The HDPE pipe electrofusion machine heats the brass coils to make it fusion the interior surface of fittings & exterior surface of the pipe, so the HDPE molecular structure recombined to bond together.


Thanks to light weight & small packing size, HDPE pipe electrofusion machine is welcomed under poor construction conditions, where access is difficult, such as in trenches or around other pipes. The HDPE pipe electrofusion machine provides a simple way for the welding of HDPE piping systems.


SUNPLAST can provide two models of HDPE pipe electrofusion welding machine for options:

Welding Machine Available

Working Power

Models or specifications available

HDPE Pipe Electrofusion Machine

(Model: SPE315)

3.5KW

20-315mm

HDPE Pipe Electrofusion Machine

(Model: SPE400)

4.2KW

20-400mm

HDPE Pipe Electrofusion Machine

(Model: SPE500)

5.0KW

20-500mm

HDPE Pipe Electrofusion Machine

(Model: SPE630)

15KW

20-630mm

Download the price list of HDPE PIPE ELECTROFUSION MACHINE


HDPE pipe socket fusion machina

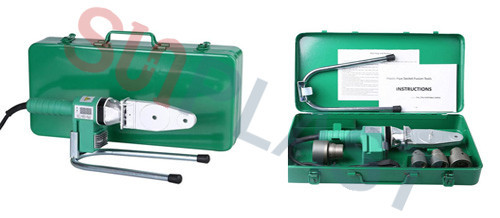

HDPE Pipe Socket Fusion Machine

HDPE pipe socket fusion machine is mainly for fusion of small diameter pipes dn20-110mm


Whats the major performances of SUNPLAST HDPE pipe welding machine?

SUNPLAST HDPE pipe welding machine, as a irreplaceable tools for HDPE piping, has many superior performances:

※ various models & options

The HDPE pipe welding machine can be provided in various models that can cover all diameter dn20-1200mm, from which you can always find a model that can meet your requests.


For smaller diameter DN50-250mm, we can also provide manual type HDPE pipe welding machine, which is cheaper prices than hydraulic type machine.


※ Wide welding range & save costs.

SUNPLAST HDPE pipe welding machine can weld wide ranges. A welding machine can be used for welding many diameter of HDPE pipes. For examples: SHP315 hydraulic type HDPE pipe butt fusion machine, it can weld the diameter DN110-315mm, which can cover most regular diameters. This will greatly reduce the costs.


※ Light weight design, Easy handling.

The HDPE pipe welding machine is designed & manufactured in Light-weight, and a lot aluminum material is used to forge the body of machine. The light-weight design allows our HDPE pipe welding machine is capable to service in certain environments, such as in mountain area.


Durable for use.

By adopting the best quality material, SUNPLAST HDPE pipe welding machine is reliable & durable for use for 5-10 years or even longer.



Whats the warranty time for SUNPLAST HDPE pipe welding machine?

SUNPLAST assure all HDPE pipe welding machine is well pre-tested before delivery.


For the whole set of HDPE pipe welding machines, SUNPLAST will provide a quality guarantee of 12 months for normal use.



Can SUNPLAST HDPE pipe welding machine be used for welding the HDPE pipes & fittings from the other suppliers?

Yes, our HDPE pipe welding machine can weld the pipes & fittings from the other suppliers.


Whats the difference between manual type HDPE pipe butt fusion machine & hydraulic type HDPE pipe butt fusion machine?

The main difference between manual type welding machine & hydraulic type welding machine is the hydraulic type machine consists a hydraulic unit, which can provide hydraulic strength to move or remove the two pipes while butt fusion process, and keep a certain & stable pressure while two pipes are bonded.


Manual type HDPE pipe butt fusion machine doesn’t consist a hydraulic unit, so the pipe move/remove shall be made manually.


The other important element is hydraulic unit can provide a stable pressure while two pipes are bonded, and this ensure the best welding results.


So, obviously, hydraulic type HDPE pipe butt fusion machine is better than manual type.


Can SUNPLAST HDPE pipe welding machine weld the PPR pipes?

Yes, the HDPE pipe welding machine can weld HDPE PP &. PVDF pipe and pipe fitting.


Whats the packing methods for HDPE pipe welding machine?

The HDPE pipe welding machine is regularly wrapped by wooden cases, with inside filled with buffer materials to prevent the collision during the transport.



Can SUNPLAST HDPE pipe welding machine be provided in different colors? Can we print our logo on it?

Yes, the HDPE pipe welding machine can be painted in different colors, and your logo can be printed, but the quantity of order shall meet our requests.



Can HDPE pipe welding machine be provided in stock?

Yes, we keep large stock for HDPE pipe welding machine, and a short delivery can be satisfied.



How to inquire to SUNPLAST for a quote of HDPE pipe welding machine?

 SUNPLAST is ready to provide our best quality HDPE pipe welding machine to all customers around the world.



For 24 hours contact details as below:

Email: export@ sunplastpipe.com

            sunplastpipe@gmail.com

Tel: 0086-574-87226883/87467583

Mobile/whatsApp/Wechat: 0086-15968493053/18858041865


View as

63-160mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

63-160mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

63-160mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe, available size from dn63-160mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
63-200mm Manual / Hydraulic Butt Fusion Welding Machine For HDPE Pipe

63-200mm Manual / Hydraulic Butt Fusion Welding Machine For HDPE Pipe

63-200mm Manual / Hydraulic Butt Fusion Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn63-200mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
90-250mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

90-250mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

90-250mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn90-250mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
160-315mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

160-315mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

160-315mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn160-315mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
280-450mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

280-450mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

280-450mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn280-450mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
400-630mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

400-630mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

400-630mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn400-630mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
