HDPE Butt Fusion Welding Machine Manufacturers

The HDPE butt fusion welding machine is the most widely used welding equipment for HDPE pipe & fittings, since butt fusion has become the method for joining that are most preferred & used by our customers. By using a HDPE butt fusion welding machine, the HDPE pipe with individual lengths and pipe to HDPE pipe fittings can be connected in a butt fusion methods.



The butt fusion is normally adopted in a diameter larger to 63mm (or 50mm), the HDPE pipe diameter 20/25/32/40mm is not recommended to use butt fusion methods, due to too small diameter & thinner wall. When delivery, a operate manual will be attached. The install worker shall strictly follow to our guide when operate the HDPE butt fusion welding machine.



SUNPLAST can provide HDPE butt fusion welding machine in various models with excellent performance, which can cover wide diameter dn50-dn1200mm. In addition, our HDPE butt fusion welding machine can be divided into two types: hydraulic type & manual type:

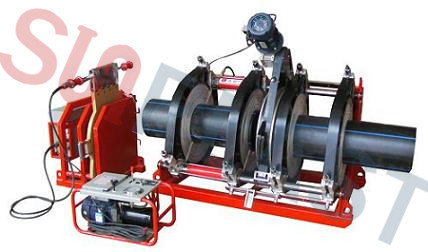

Hydraulic type HDPE butt fusion welding machine

The Hydraulic type HDPE butt fusion welding machine consists a hydraulic unit, which can provide a sustained and stable hydraulic strength & pressure during the surface planing, melting, which can assure a perfect welding result, by avoid the failure of welding caused by unstable pressure during the welding process.



Hydraulic type HDPE butt fusion welding machine can be provided from dn63 to dn1200mm

Product name

Model

Available Welding Ranges

HDPE butt fusion welding machine

(Hydraulic Type)

Hydraulic HDPE butt fusion welding machine

SPH63-160

63/75/90/110/125/140/160

SPH63-200

63/75/90/110/125/140/160/180/200

SPH90-250

90/110/125/140/160/180/200/225/250

SPH160-315

160/180/200/225/250/280/315

SPH200-400

200/225/250/280/315/355/400

SPH280-450

280/315/355/400/450

SPH280-500

280/315/355/400/450/500

SPH400-630

400/450/500/560/630

SPH630-800

630/710/800

SPH710-1000

710/800/900/1000

SPH800-1200

800/1000/1200

 Download our price lists of HDPE PIPE BUTT FUSION WELDING MACHINE

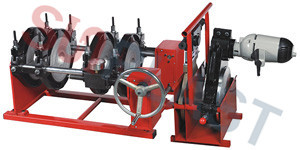

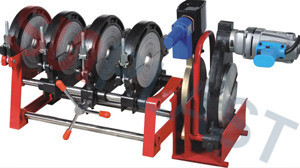

Manual type HDPE butt fusion welding machine

Manual type HDPE butt fusion welding machine is normally used for the small diameter DN63-250mm.

Product name

Model

Available Welding Ranges

HDPE butt fusion welding machine (Manual Type)

Manual Type HDPE butt fusion welding machine

SPA160-4M

63/75/90/110/125/140/160

SPA160-4M

63/75/90/110/125/140/160/180/200

SPA160-4M

90/110/125/140/160/180/200/225/250

HDPE butt fusion welding machine (Manual Type)

Manual HDPE Butt welding machine

SPL160-4M

63/75/90/110/125/140/160

SPL160-4M

63/75/90/110/125/140/160/180/200

SPL160-4M

90/110/125/140/160/180/200/225/250

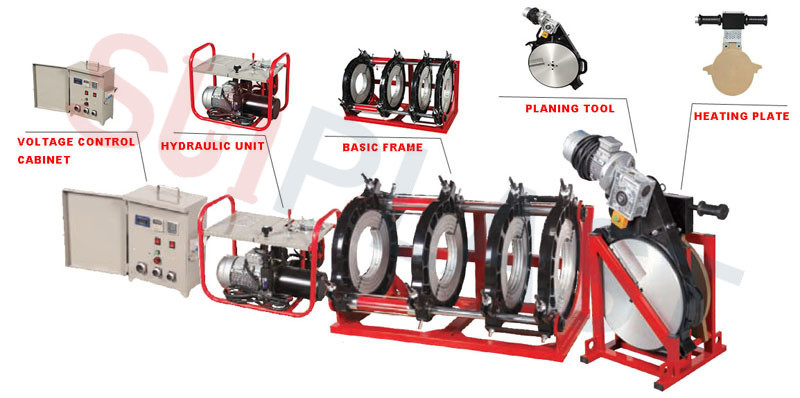

SUNPLAST HDPE butt fusion welding machine are consisted of five parts, including: Basic frame, Hydraulic unit, planing tool, Heating plate, and Electric Control Unit.




The HDPE butt fusion welding machine has excellent characteristic:

※ Removable PTFE coated heating plate with separate temperature control system.

※  Electric Trimmer with reversible double cutting edge blades.

 ※ Hydraulic unit provides welding machine with compressing power.

※ Be made of Aluminum  material, easy to carry and transport.

※ Low starting pressure ensures reliable welding quality of small pipes.

※ Temperature Controller and Timer, easy to know the time and temperature.

※ Durable service time, guaranteed for 12 months for normal use.



SUNPLAST has large stock, and most regular models of HDPE butt fusion welding machines are available to be provided in the stock.



Our regular exporting packing method is by wooden cases filled with anti-collision foam. For hydraulic type HDPE butt fusion welding machine, they are packed by 2-3 wooden cases seperately, and the customers need to assemble them together by our guide when receive it.



SUNPLAST is ready to provide our best quality HDPE butt fusion welding machine to all customers around the world.



For 24 hours contact details as below:



Email: export@ sunplastpipe.com

            sunplastpipe@gmail.com

Tel: 0086-574-87226883/87467583

Mobile/whatsApp/Wechat: 0086-15968493053/18858041865


View as

63-160mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

63-160mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

63-160mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe, available size from dn63-160mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
63-200mm Manual / Hydraulic Butt Fusion Welding Machine For HDPE Pipe

63-200mm Manual / Hydraulic Butt Fusion Welding Machine For HDPE Pipe

63-200mm Manual / Hydraulic Butt Fusion Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn63-200mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
90-250mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

90-250mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

90-250mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn90-250mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
160-315mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

160-315mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

160-315mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn160-315mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
280-450mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

280-450mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

280-450mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn280-450mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
400-630mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

400-630mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe

400-630mm Hydraulic Butt Fusion Welding Machine For HDPE Pipe in manual or hydraulic operation, available size from dn400-630mm, high quality warranted with 5 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!!!

Read MoreSend Inquiry
