PP Clamp Saddle

PP Clamp Saddle

Clamp Saddle for HDPE pipe, available 20-110mm in PN16 & PN10, high quality warranted with 15 years, competitive wholesale prices, prompt delivery available. Contact us for more details of Clamp Saddle!!!

Send Inquiry

PDF Download

Product Description

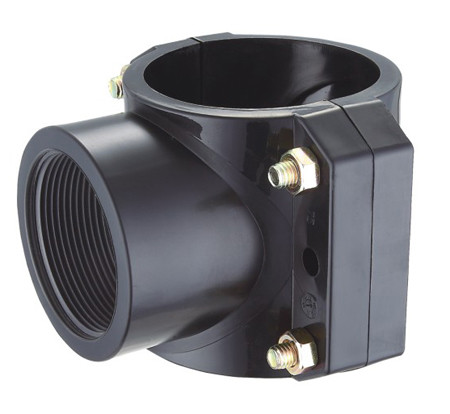

Clamp Saddle
PP clamp saddles are the ideal solution for branching from existing pipelines for water and irrigation applications.PP Compression fittings


SUNPLAST PP clamp saddles are manufactured in compliance with the requirements of standards  EN 712/713/715/911; ISO 3501/3503/3458/3459.The fittings can be installed on HDPE pipes which are in compliance with standards ISO 11922; DIN 8072/8074; UNE 53131. The threaded versions are manufactured in compliance with standard ISO 7; DIN 2999.


SUNPLAST PP clamp saddles are designed with single branch out, coupling with pipes from DN20mm up to DN315 mm, threaded branches from 1/2” to 4”. Provided with 2, 4 or 6 bolts according to the diameters and metal reinforcing ring on the threaded branches.


Product name

PP clamp saddles

Specification available

DN25-250mm

Pressure ratings

PN10 bars

Material

Saddle body in PP black co-polymer, nuts and bolts in zinc galvanized steel, o-ring gasket in NBR, reinforcing ring in AISI 430

Colors available

Black

Standards follow to

EN 712/713/715/911; ISO 3501/3503/3458/3459.

Markings

Customers logo can be stamped

Samples available

Yes, sample available for small quantity

Packing method

Cartons

MOQ

Negotiable

Production lead time

10-15 days for a 20ft container, 25-30 days for a 40ft container

Warranty time

5 years for normal using

Payment term

T/T or LC at sight

FOB loading port

Ningbo or Shanghai China

Place of origin

Zhejiang, China


Product Specifications
SUNPLAST can provide PP clamp saddles from 25mm to 250mm, with the specifications as below:

Product Name

Specification



PP Clamp Saddle


PP Clamp Saddle

25×1/2"

50×1-1/2"

75×1-1/4"

90×3"

125×1-1/4"

200×3/4"

25×3/4"

50×2"

75×1-1/2"

90×4"

125×1-1/2"

200×1"

32×1/2"

63×1/2"

75×2"

110×1/2"

125×2"

200×1-1/4"

32×3/4"

63×3/4"

75×2-1/2"

110×3/4"

160×1/2"

200×1-1/2"

32×1"

63×1"

75×3"

110×1"

160×3/4"

200×2"

40×1/2"

63×1-1/4"

90×1/2"

110×1-1/4"

160×1"

200×3"

40×3/4"

63×1-1/2"

90×3/4"

110×1-1/2"

160×1-1/4"

200×4"

40×1"

63×2"

90×1"

110×2"

160×1-1/2"

250×3/4"

50×1/2"

63×2-1/2"

90×1-1/4"

110×3"

160×2"

250×1"

50×3/4"

75×1/2"

90×1-1/2"

110×4"

160×3"

250×2"

50×1"

75×3/4"

90×2"

125×3/4"

160×4"

250×3"

50×1-1/4"

75×1"

90×2-1/2"

125×1"

200×1/2"

250×4"
