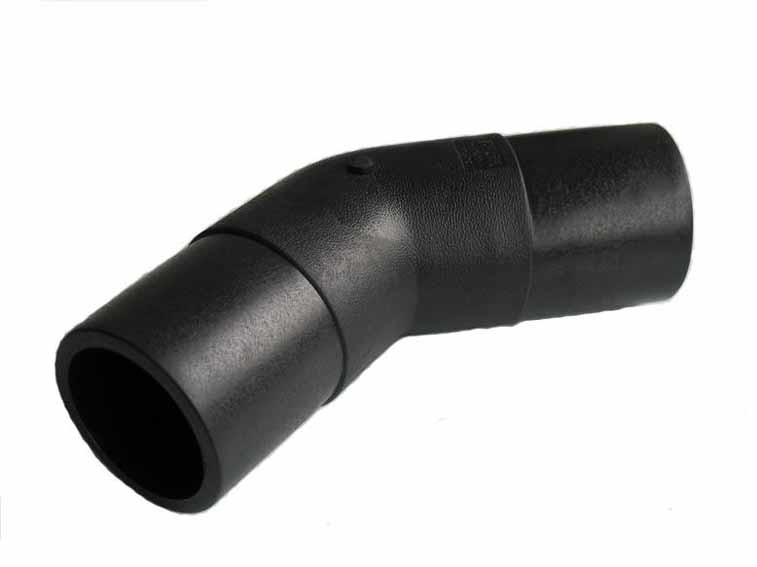

HDPE Butt Fusion 22.5 Degree Elbow

HDPE Butt Fusion 22.5 Degree Elbow

Injection moulded HDPE Butt Fusion 22.5 Degree Elbow for HDPE pipes, available 110-800mm in SDR11 & SDR17, high quality warranted with 15 years, competitive wholesale prices, stock available for regular sizes, prompt delivery available. Contact us for more details of HDPE Butt Fusion 22.5 Degree Elbow!!!

Send Inquiry    PDF DownLoad

Product Description

HDPE Butt Fusion 22.5 Degree ElbowHDPE Butt Fusion Fittings
The butt fusion method of joining is by far the most common method of connecting polyethylene pipe in all diameters. The ends of polyethylene pipe when heated and brought together under pressure with specialized equipment form one continuous "leak proof" pipeline. Properly made, a pipe fusion is as strong as the pipe itself and has the same life expectancy.

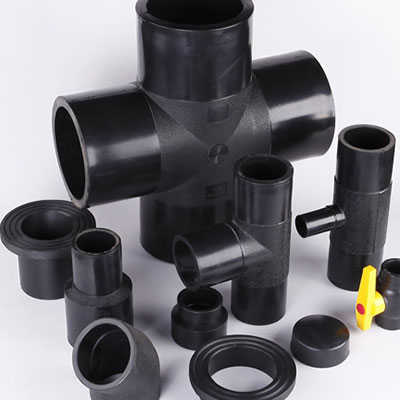

SUNPLAST HDPE butt fusion fittings are made by imported PE80 or PE100 raw material from famous suppliers that has high resistance, they are mainly used in SUNPLAST HDPE piping system for water & gas. The HDPE butt fusion fittings can fully comply with EN12201-3, EN1555 & EN ISO 15494 standard. SUNPLAST has the ability to provide HDPE butt fittings fittings in a wide variety of sizes from DN63mm to DN800mm in SDR11 & SDR13.6 / SDR17, including: end cap, stub flange, steel backing rings, equal tee, reducing tee, reducer, elbow 45deg, elbow 90deg.,etc.


Note: SUNPLAST has a lot of stock for normal sizes, can be delivered in a short time!!


Product name

HDPE Butt Fusion 22.5 degree elbow

Specification available

DN110-800mm (outer diameter)

SDR/pressure ratings

SDR11 & SDR13.6 / SDR17

Material to be used

Virgin PE80 or PE100 raw material

Colors available

Black, blue & yellow, or as per request.

Standards that follow to

EN12201-3, EN1555, EN ISO 15494

Samples available

Yes, samples available for small quantity.

Packing method

Small dia. 63-280mm be packed by cartons, big dia.315-800mm be wrapped by PP bags

MOQ

Negotiable

Production lead time

7-10 days for a 20ft container, 10-15 days for a 40ft container.

Warranty time

15 years for normal use

Payment term

T/T or LC at sight

FOB loading port

Ningbo or Shanghai China

Place of origin

Ningbo, China


Product Specifications

HDPE 22.5 degree elbows can be provided from dn110mm to dn800mm, with the dimensions as below:

Product Name

Specification

SDR17

SDR11

HDPE Butt Fusion 22.5 Degree Elbow

(HDPE 22.5 Degree Elbow)

HDPE 22.5 Degree Elbow

110



125



140



160



180



200



225

250

280

315

355

400

450

500

560

630

710



800


Raw Material
Material of excel performance is one of the qualification with produce the topping piping system. SUNPLAST company generally adopts TOP QUALITY raw materials from worldwide reputed factories  in the production of pipes and fittings.Those materials are recognized as the top raw material by the professional in this vocation. The preferable performance of those materials and their stability establish the high quality station of SUNPLAST piping products and fittings on the markets.




Loading & Shipment
SUNPLAST HDPE pipe fittings owe high reputation of good quality in our exporting markets. The fittings have been exporting to more than 15 countries, and all our customers are satisfied on us.









Contact us
Contact us freely for any inquiries on our products by following:
Email: export@sunplastpipe.com

           sunplastpipe@gmail.com
Telephone: 0086-574-87226883
Fax: 0086-574-87467583
Mob: 0086-15968493053

24 hours on line contact:
whatsApp / wechat: 0086-15968493053

Skype: polypipe-manufacturer


Sunplast, through over 15 years' development, is now known as one of the leading manufacturers and suppliers of hdpe pipe (poly pipe) / HDPE Pipe Fittings / HDPE Pipe Welding Machine  in China. Our factory has introduced many advanced technologies and equipments into it. Please be free to buy the quality and low price products made in China from us.
