HDPE Water Pipe

ISO4427/4130/BS EN 12201 standard HDPE Water Pipe in black/blue color for Water Supply,produced from dn20-1200mm with pressure rating of PN5-PN20 bars,high quality warranted with 15 years,approved by CE certificate & BS6920 test report, complete HDPE pipe fittings available. Contact us for more details of HDPE water supply pipe from SUNPLAST!!

Send Inquiry PDF DownLoad

Product Description

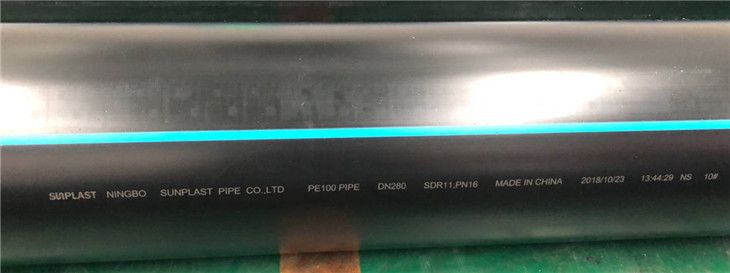

HDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply

HDPE pipe, also called high density polyethylene pipe or poly pipe, which is a ideal solution for drinkable water supply. SUNPLAST HDPE pipe is made by superior quality PE80 or PE100 raw material from worldwide material suppliers. The HDPE water pipe can fully meet with ISO4427 standard, at the same time, it can also comply with AS/NZS 4130, EN 13244/12201 & DIN 8077/8078 standards. The pipe from SUNPLAST has passed strict hygiene test in the creditable UK test center called BS6920 test, which proves our HDPE pipe are health & suitable for drinkable water supply.

Below please see the brief information of our HDPE pipes:

Product name	HDPE water pipe
Specification available	DN20-1000mm (outer diameter)
SDR/pressure ratings	SDR0-PN20, SDR11-PN16, SDR13.6-PN12.5, SDR17-PN10, SDR21-PN8, SDR26-PN6, SDR33-PN5
Material to be used	virgin PE80 or PE100 raw material
Colors available	Black color with blue strips or blue color, or as per request
Standards that follow to	ISO 4427, AS/NZS 4130, BS EN 13224/12201, DIN 8077/8078, other international standards.
Markings on the pipe	As per customer's request.
Samples available	Yes, samples available for small quantity.
Packing method	Pipe dia. dn20-63mm can be in coils with 50/100/200/300m length, pipe dia. dn75-1200mm be in bars with 5.8m or 11.8m length
MOQ	Negotiable
Production lead time	7-10 days for a 20ft container, 10-15 days for a 40ft container.
Warranty time	15 years for normal use
Payment term	T/T or LC at sight
FOB loading port	Ningbo or Shanghai China
Place of origin	Ningbo, China

Product Specifications
SUNPLAST can provide HDPE pipes from dn20 to dn1200mm, with the specification as below:

SDR Ratings	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9
Normal Pressure (Mpa)	0.5	0.6	0.8	1.0	12.5	16	20
Norminal Diameter dn (mm)	Wall Thickness e (mm)
20						2.0	2.3
25					2.0	2.3	3.0
32				2.0	2.4	3.0	3.6
40			2.0	2.4	3.0	3.7	4.5
50		2.0	2.4	3.0	3.7	4.6	5.6
63		2.5	3.0	3.8	4.7	5.8	7.1
75		2.9	3.6	4.5	5.6	6.8	8.4
90		3.5	4.3	5.4	6.7	8.2	10.1
110		4.2	5.3	6.6	8.1	10.0	12.3
125		4.8	6.0	7.4	9.2	11.4	14.0
140		5.4	6.7	8.3	10.3	12.7	15.7
160		6.2	7.7	9.5	11.8	14.6	17.9
180		6.9	8.6	10.7	13.3	16.4	20.1
200		7.7	9.6	11.9	14.7	18.2	22.4
225		8.6	10.8	13.4	16.6	20.5	25.2
250		9.6	11.9	14.8	18.4	22.7	27.9
280		10.7	13.4	16.6	20.6	25.4	31.3
315	9.7	12.1	15.0	18.7	23.2	28.6	35.2
355	10.9	13.6	16.9	21.1	26.1	32.2	39.7
400	12.3	15.3	19.1	23.7	29.4	36.3	44.7
450	13.8	17.2	21.5	26.7	33.1	40.9	50.3
500	15.3	19.1	23.9	29.7	36.8	45.4	55.8
560	17.2	21.4	26.7	33.2	41.2	50.8	62.5
630	19.3	24.1	30.0	37.4	46.3	57.2	70.3
710	21.8	27.2	33.9	42.1	52.2	64.5	79.3
800	24.5	30.6	38.1	47.4	58.8	72.6	89.3
900	27.6	34.4	42.9	53.3	66.2	81.7
1000	30.6	38.2	47.7	59.3	72.5	90.2
1200	36.7	45.9	57.2	67.9	88.2

HDPE Fittings & HDPE Pipe Welding Machine

To support the connection of HDPE pipe, SUNPLAST can also provide complete range of HDPE fittings & welding machine. The fittings we can provide as below: SUNPLAST HDPE Fittings

※ DN20-110mm HDPE socket fusion fittings

※ DN20-110mm PP compression fittings

※ DN63-800mm injection mouded HDPE butt fusion fittings

※ DN315-1000mm HDPE fabricated fittings

※ DN20-630mm HDPE electrofusion fittings

The HDPE pipe welding machines we can provide as below:

※ DN20-110mm HDPE pipe socket fusion welding machine

※ DN63-800mm HDPE pipe butt fusion welding machine

※ DN20-630mm HDPE pipe electrofusion welding machine

Raw Material
Material of excel performance is one of the qualification with produce the topping piping system. SUNPLAST company generally adopts TOP QUALITY raw materials from worldwide reputed factories in the production of pipes and fittings.Those materials are recognized as the top raw material by the professional in this vocation. The preferable performance of those materials and their stability establish the high quality station of SUNPLAST piping products and fittings on the markets.

Loading & Shipment
Thanks to superior quality, we have been establishing a close & long business partner relationship with the customers from more than 30 countries, and we've gotten so many positive feedback regarding the quality.

Contact us
Contact us freely for any inquiries on our products by following:
Email: export@sunplastpipe.com

sunplastpipe@gmail.com
Telephone: 0086-574-87226883
Fax: 0086-574-87467583
Mob: 0086-15968493053

24 hours on line contact:
whatsApp: 0086-15968493053

Skype: polypipe-manufacturer

Sunplast, through over 15 years' development, is now known as one of the leading manufacturers and suppliers of hdpe pipe (poly pipe) for water sewer & drainage in China. Our factory has introduced many advanced technologies and equipments into it. Please be free to buy the quality and low price products made in China from us.
