PN25 PPR Pipe

PN25 PPR Pipe for Water Plumbing & heating, sized from dn20-110mm in PN16, PN20, PN25,green/grey/white colors for choice, produced by superior quality that are warranted with 15 years, best competitive wholesale price & prompt delivery can be met. Contact us for more details of PPR pipes from SUNPLAST!!!

Send Inquiry    PDF DownLoad

Product Description

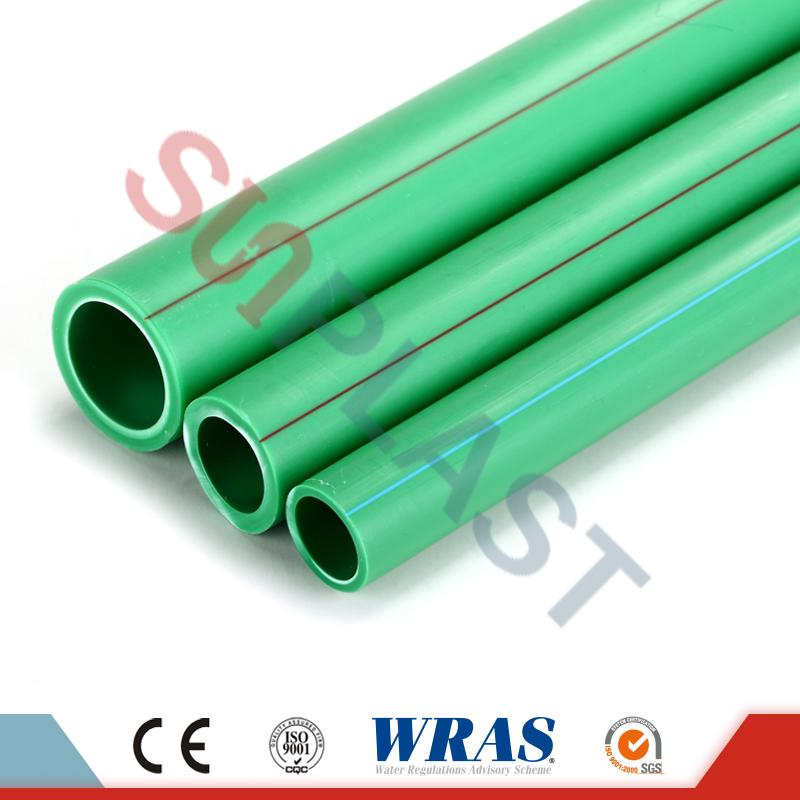

PN25 PPR Pipe

PPR pipes and fittings are manufactured from polypropylene random copolymer, which is also called type 3.


Featured by excellent cleanness, cost effectiveness, applicability and advantage in safety, PPR pipes and fittings are currently considered as the most favorable pipe material for cold (PN10) and hot (PN20) water system, water purifying engineering, underground heating system for wooden floor, chemical pipe works and so on. Under normal work pressure and condition, the life of Pipe system can reach 50 years at least.

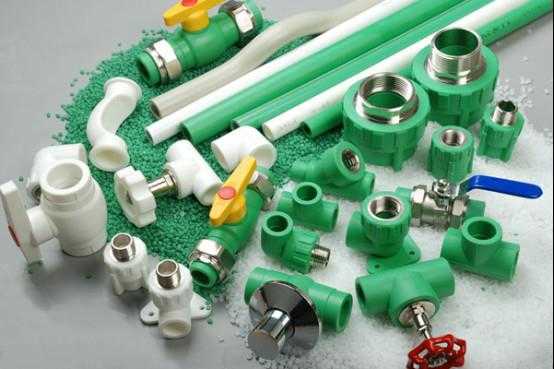

PPR Pipe PN20.jpg



SUNPLAST PPR pipes & fittings are manufactured according to our domestic GB/T 18742 standards with sizes ranging from 20mm up to 110mm, at the same time, they can also comply with DIN8077/8078 & EN ISO15874 standards too. The outstanding temperature rating up to 95℃ and pressure rating up to 25 bars make PPR piping system the ideal solution for variety of applications including:

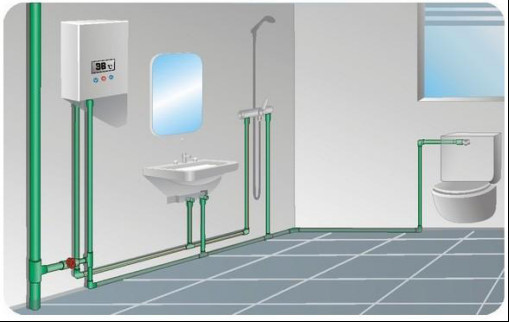

※ Hot and cold potable water piping networks in residential and commercial buildings.
※ Heating systems.
※ Chilled water networks in air conditioning systems, as an effective light weight and corrosion free substitute for steel pipes.
※ Transport of wide range of chemicals in the industry.
※ Piping networks for rainwater utilization systems and swimming pools facilities.
※ Compressed air installations and other industrial applications.

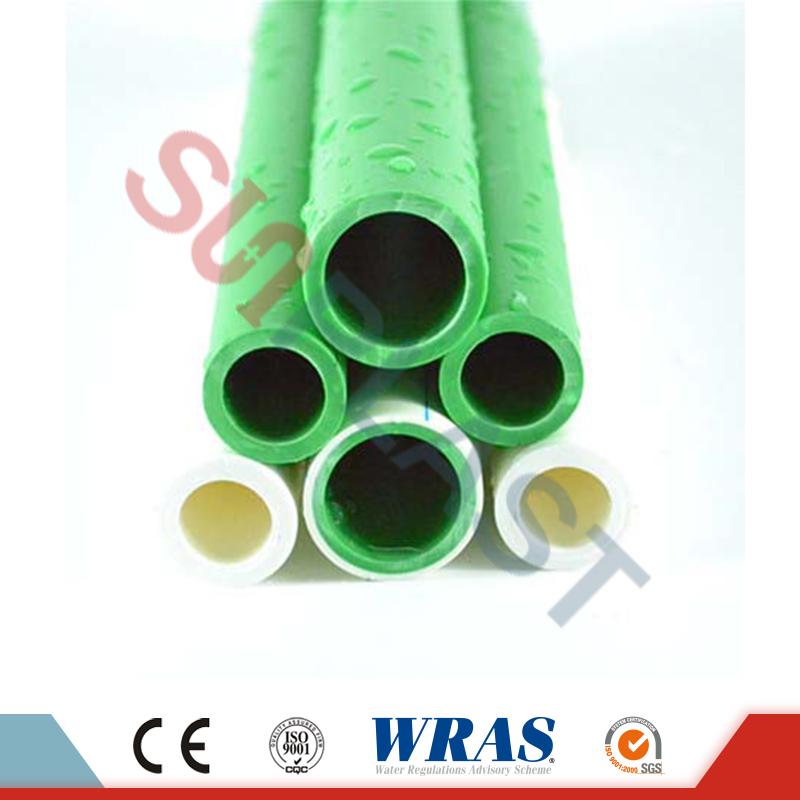

PPR Water Pipe .jpg


Product name

PPR pipe

Sizes available

DN20-110mm

Pressure rating

PN12.5 bars, PN16 bars, PN20 bars, PN25 bars

Material used

High quality PPR raw material

Colors available

Green, grey & white, or as per request

Standards follow to

GB/T 18742 , DIN 8077/8078, EN ISO 15874

OEM available

Available

Samples available

Yes, sample available for small quantity.

Packing method

Pipe in bars with 4m length, each package be wrapped by PP bags, or as per request

MOQ

Negotiable

Production lead time

About 10-15 days for a 20ft container, 20-25 days for a 40ft container

Warranty time

15 years for normal using

Payment term

T/T or LC at sight

FOB loading port

Ningbo or Shanghai China

Place of origin

Zhejiang, China



Product Specifications:

PPR Pipe (GB/T 18742 , DIN 8077/8078, EN ISO 15874)

S5/ PN12.5bars

S4/ PN16bars

S3.2/ PN20bars

S2.5/ PN25bars

20×2.0

20×2.3

20×2.8

20×3.4

25×2.3

25×2.8

25×3.5

25×4.2

32×2.9

32×3.6

32×4.4

32×5.4

40×3.7

40×4.5

40×5.5

40×6.7

50×4.6

50×5.6

50×6.9

50×8.3

63×5.8

63×7.1

63×8.6

63×10.5

75×6.8

75×8.4

75×10.3

75×12.5

90×8.2

90×10.1

90×12.3

90×15.0

110×10.0

110×12.3

110×15.1

110×18.3


Question:
※ Could SUNPLAST PPR Pipes & fittings be used at high temperature water systems?
A: Yes, PPR pipes & fittings can be used at max. 95℃ hot water for 50 years in normal use.

※ Can SUNPLAST PPR pipes be used in underfloor heating systems?
A: Yes, PPR pipes & fitting have a good performance when they are used for hot water. Thus, they can be used as underfloor heating pipe.

※ What’s the main difference between HDPE pipe & PPR pipe? How can i make a choice?
A: HDPE pipe made by polyethylene is NOT suitable for hot water supply. PPR pipe can be used at max. 95℃ temperature hot water.
For piping system for hot water, then PPR pipe is a good choice. Otherwise for cold water, HDPE pipe can do it very well.
