Poly Drain Pipe

Poly Drain Pipe made by top quality virgin PE80/PE100 raw material from China, available from dn20-1000mm.Contact us for more details of HDPE drainage pipe!!!

Send Inquiry PDF DownLoad

Product Description

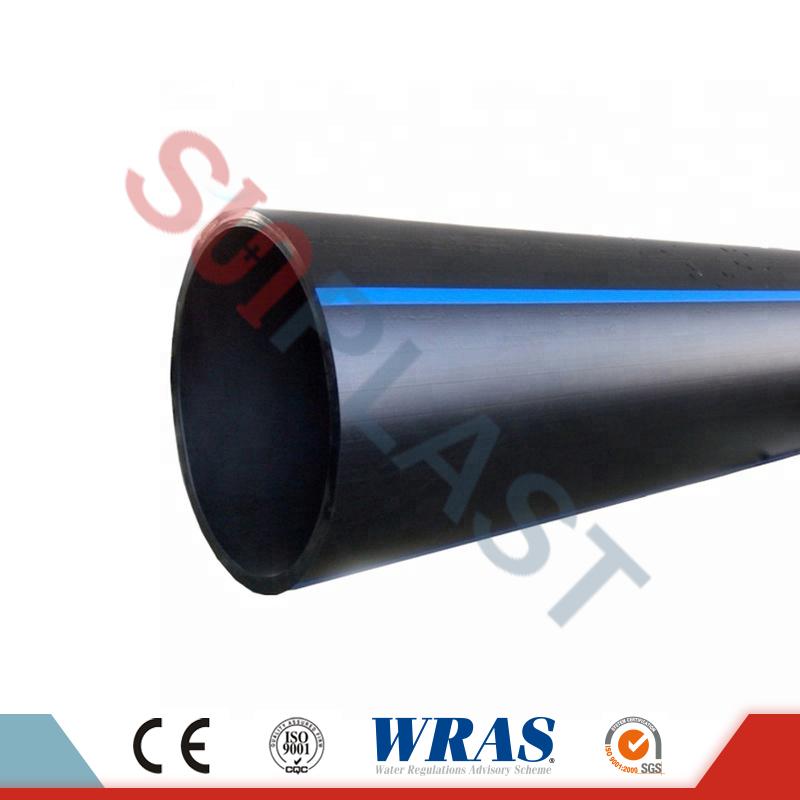

Poly Drain Pipe

SUNPLAST HDPE pipe, which is made by HDPE (high density polyethylene), is a perfect solution for municipal drainage/sewerage system. The HDPE pipe is more & more popular used for water supply & drainage in worldwide, because the following advantages:

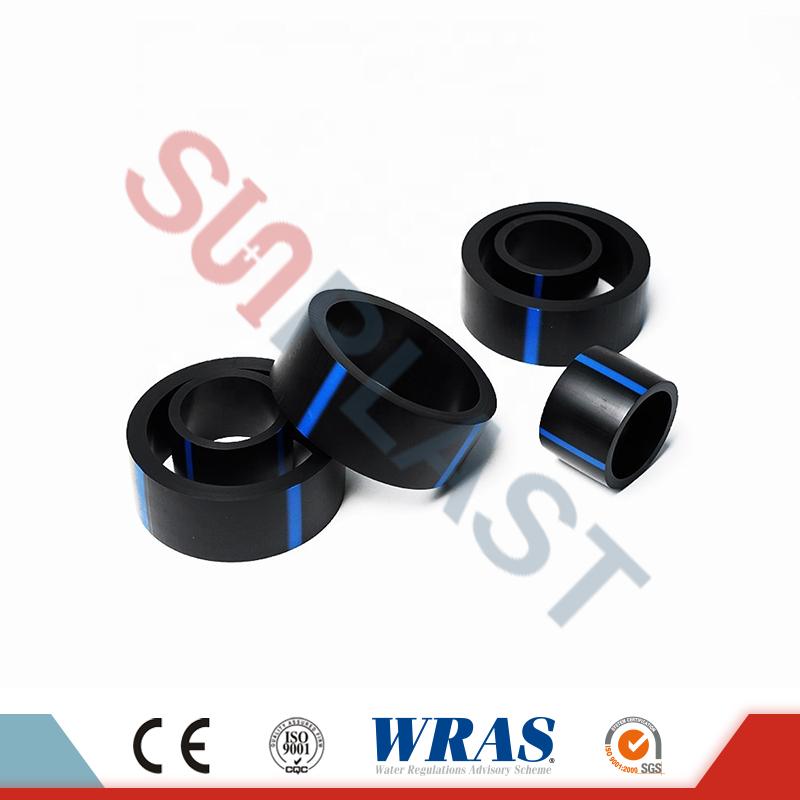

HDPE Pipe In SDR11 ※ Non-toxic, health: HDPE pipe material non-toxic, tasteless, through the strict health monitoring, it belongs to green building materials, never scaling, which can effectively improve the water quality.

※ Corrosion resistance: HDPE belongs to inert materials, can resistance to various chemical media.

※ No leakage: HDPE pipe is connected by heat melting, its interface strength higher than tube itself.
※ High toughness: fracture extension rate of HDPE pipe, commonly more than 500%. As to the uneven settlement of the base, its adaptive ability is very strong, good aseismic performance.
※ Excellent resistance to quickly crack propagation (RCP) ability.

※ Excellent flexible and resistance to scratches ability.

※Good wear resistance, low wall friction coefficient, small flow resistance, excellent conveying ability.
※ Trenchless installation: Can use a variety of trenchless ways, great convenient for construction and installation.
※ Low system cost, less maintenance costs, can dramatically reduce the cost for the project.
※ Long service life: dark bury HDPE pipe normal uses more than fifty years.

※ Recyclable and environment-friendly: HDPE material can be reused, complete with the concept of efficient environmental protection which our state advocates

The below please see the brief details:

Product name	HDPE drainage pipe
Specification available	DN20-1000mm (outer diameter)
SDR/pressure ratings	SDR9-PN20, SDR11-PN16, SDR13.6-PN12.5, SDR17-PN10, SDR21-PN8, SDR26-PN6, SDR33-PN5
Material to be used	virgin PE80 or PE100 raw material
Colors available	Black color with blue strips or blue color, or as per request
Standards that follow to	ISO 4427, AS/NZS 4130, BS EN 13224/12201, DIN 8077/8078, other international standards.
Markings on the pipe	As per customer's request.
Samples available	Yes, samples available for small quantity.
Packing method	Pipe dia. dn20-63mm can be in coils with 50/100/200/300m length, pipe dia. dn75-1200mm be in bars with 5.8m or 11.8m length
MOQ	Negotiable
Production lead time	7-10 days for a 20ft container, 10-15 days for a 40ft container.
Warranty time	15 years for normal use
Payment term	T/T or LC at sight
FOB loading port	Ningbo or Shanghai China
Place of origin	Ningbo, China

Product Specifications

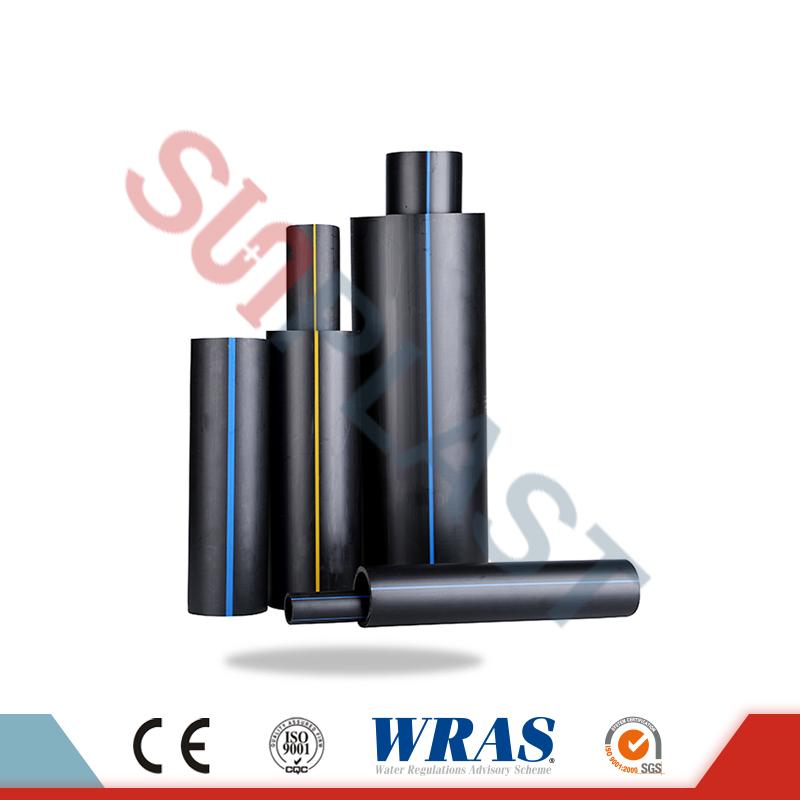

SUNPLAST can provide HDPE pipes from dn20 to dn1200mm, with the specification as below:

SDR Ratings	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9
Normal Pressure (Mpa)	0.5	0.6	0.8	1.0	12.5	16	20
Norminal Diameter dn (mm)	Wall Thickness e (mm)
20						2.0	2.3
25					2.0	2.3	3.0
32				2.0	2.4	3.0	3.6
40			2.0	2.4	3.0	3.7	4.5
50		2.0	2.4	3.0	3.7	4.6	5.6
63		2.5	3.0	3.8	4.7	5.8	7.1
75		2.9	3.6	4.5	5.6	6.8	8.4
90		3.5	4.3	5.4	6.7	8.2	10.1
110		4.2	5.3	6.6	8.1	10.0	12.3
125		4.8	6.0	7.4	9.2	11.4	14.0
140		5.4	6.7	8.3	10.3	12.7	15.7
160		6.2	7.7	9.5	11.8	14.6	17.9
180		6.9	8.6	10.7	13.3	16.4	20.1
200		7.7	9.6	11.9	14.7	18.2	22.4
225		8.6	10.8	13.4	16.6	20.5	25.2
250		9.6	11.9	14.8	18.4	22.7	27.9
280		10.7	13.4	16.6	20.6	25.4	31.3
315	9.7	12.1	15.0	18.7	23.2	28.6	35.2
355	10.9	13.6	16.9	21.1	26.1	32.2	39.7
400	12.3	15.3	19.1	23.7	29.4	36.3	44.7
450	13.8	17.2	21.5	26.7	33.1	40.9	50.3
500	15.3	19.1	23.9	29.7	36.8	45.4	55.8
560	17.2	21.4	26.7	33.2	41.2	50.8	62.5
630	19.3	24.1	30.0	37.4	46.3	57.2	70.3
710	21.8	27.2	33.9	42.1	52.2	64.5	79.3
800	24.5	30.6	38.1	47.4	58.8	72.6	89.3
900	27.6	34.4	42.9	53.3	66.2	81.7
1000	30.6	38.2	47.7	59.3	72.5	90.2
1200	36.7	45.9	57.2	67.9	88.2

HDPE Fittings & HDPE Pipe Welding Machine

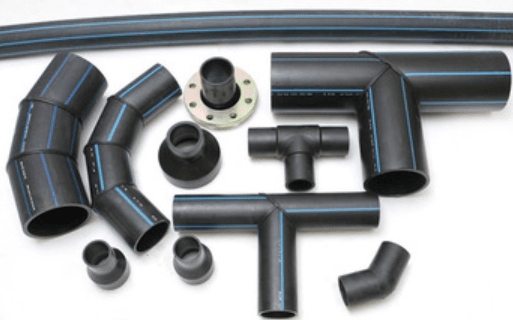

To support the connection of HDPE pipe, SUNPLAST can also provide complete range of HDPE fittings & welding machine. The fittings we can provide as below: SUNPLAST HDPE Fittings

※ DN20-110mm HDPE socket fusion fittings

※ DN20-110mm PP compression fittings

※ DN63-800mm injection mouded HDPE butt fusion fittings

※ DN315-1000mm HDPE fabricated fittings

※ DN20-630mm HDPE electrofusion fittings

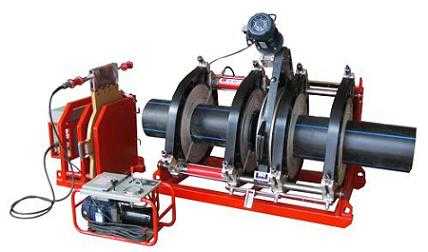

The HDPE pipe welding machines we can provide as below:

※ DN20-110mm HDPE pipe socket fusion welding machine

※ DN63-800mm HDPE pipe butt fusion welding machine

※ DN20-630mm HDPE pipe electrofusion welding machine

Raw Material
Material of excel performance is one of the qualification with produce the topping piping system. SUNPLAST company generally adopts TOP QUALITY raw materials from worldwide reputed factories in the production of pipes and fittings.Those materials are recognized as the top raw material by the professional in this vocation. The preferable performance of those materials and their stability establish the high quality station of SUNPLAST piping products and fittings on the markets.

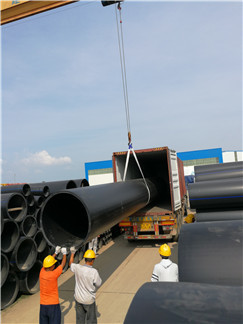

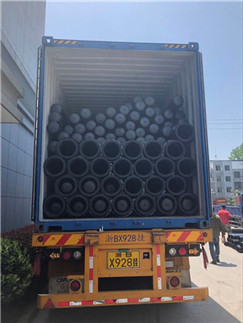

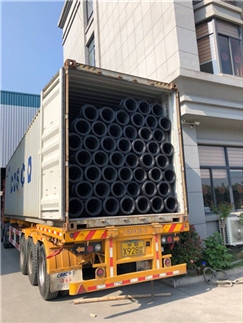

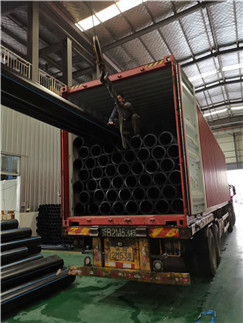

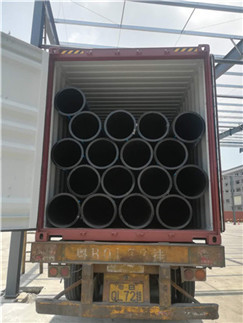

Loading & Shipment
Thanks to superior quality, we have been establishing a close & long business partner relationship with the customers from more than 30 countries, and we've gotten so many positive feedback regarding the quality.

Contact us
Contact us freely for any inquiries on our products by following:
Email: export@sunplastpipe.com

sunplastpipe@gmail.com
Telephone: 0086-574-87226883
Fax: 0086-574-87467583
Mob: 0086-15968493053

24 hours on line contact:
whatsApp / wechat: 0086-15968493053

Skype: polypipe-manufacturer

Sunplast, through over 15 years' development, is now known as one of the leading manufacturers and suppliers of hdpe pipe (poly pipe) for water sewer & drainage in China. Our factory has introduced many advanced technologies and equipment into it. Please be free to buy the quality and low price products made in China from us.
