What Pressure Ratings Should You Consider When Selecting HDPE Pipe Fittings?

Selecting the correct pressure rating is one of the most critical decisions when choosing HDPE Pipe Fittings for water supply, gas distribution, mining slurry, irrigation, and industrial pipeline systems. The pressure class directly determines whether the pipeline system can operate safely, efficiently, and sustainably for decades. If the rating is too low, the system risks leakage or failure. If it is too high, project costs increase unnecessarily. Therefore, understanding pressure ratings is not optional but essential.

When evaluating What Pressure Ratings Should You Consider When Selecting HDPE Pipe Fittings?, you must examine pipe SDR value, working pressure, temperature derating, surge pressure, safety factors, and long-term hydrostatic strength. At Ningbo Sunplast Pipe Co., Ltd., we help global buyers determine the correct pressure class based on application conditions, engineering standards, and installation environments. Our factory manufactures high-performance HDPE Pipe Fittings designed for long-term pressure stability, ensuring safety margins that meet international requirements.

Table of Contents

1. What Do Pressure Ratings Mean in HDPE Pipe Systems?
2. Why Does SDR Value Directly Affect Pressure Capacity?
3. How Do Working Pressure and Surge Pressure Influence Selection?
4. What Product Specifications Should You Compare Before Purchasing?
5. Conclusion
6. FAQ

What Do Pressure Ratings Mean in HDPE Pipe Systems?

Pressure rating refers to the maximum internal pressure that HDPE Pipe Fittings and pipes can safely withstand over a defined service life, typically 50 years at 20 degrees Celsius. It is commonly expressed in PN values such as PN6, PN8, PN10, PN12.5, PN16, and PN20. Each PN rating corresponds to a specific maximum allowable operating pressure measured in bar.

Understanding What Pressure Ratings Should You Consider When Selecting HDPE Pipe Fittings? begins with distinguishing between several key technical parameters:

1. Nominal Pressure PN

• PN6 equals 6 bar working pressure
• PN10 equals 10 bar working pressure
• PN16 equals 16 bar working pressure
• Higher PN means thicker wall and stronger resistance

2. Long-Term Hydrostatic Strength

HDPE materials such as PE80 and PE100 are classified based on Minimum Required Strength. PE100 provides higher pressure resistance at the same diameter compared to PE80. Our HDPE Pipe Fittings are manufactured using PE100 virgin raw materials to ensure superior mechanical performance.

3. Temperature Derating

Pressure ratings are based on 20 degrees Celsius. When fluid temperature increases, allowable pressure decreases. For example:

At Sunplast, our engineering team calculates derating factors for customers operating in high-temperature environments to ensure pipeline safety.

4. Design Safety Factor

International standards such as ISO 4427 and EN 12201 apply safety factors to ensure long service life. Our factory strictly follows these standards during production and hydrostatic testing.

Choosing the wrong rating can lead to:

• Joint failure under peak load
• Stress cracking over time
• Increased maintenance cost
• Shortened service life

This is why HDPE Pipe Fittings must match pipe class and system design pressure precisely.

Why Does SDR Value Directly Affect Pressure Capacity?

SDR stands for Standard Dimension Ratio. It represents the ratio between pipe outer diameter and wall thickness. The lower the SDR value, the thicker the wall and the higher the pressure resistance. When evaluating What Pressure Ratings Should You Consider When Selecting HDPE Pipe Fittings?, SDR classification becomes one of the most decisive factors.

Common SDR and Corresponding Pressure Ratings for PE100

Lower SDR means:

• Greater resistance to internal pressure
• Improved impact strength
• Higher material consumption
• Higher initial cost but longer service life

At Ningbo Sunplast Pipe Co., Ltd., our factory produces HDPE Pipe Fittings in SDR26 to SDR7.4 ranges, ensuring compatibility with various pressure classes. All fittings undergo pressure testing before shipment.

Engineering considerations include:

• Pipeline length
• Elevation differences
• Pump capacity
• Water hammer risk
• Soil load and external stress

Our technical department provides pressure calculation support to help clients avoid overspecification or underspecification.

How Do Working Pressure and Surge Pressure Influence Selection?

In real-world systems, pipelines rarely operate at constant pressure. Surge pressure caused by pump startup or valve closure can exceed nominal pressure temporarily. Therefore, selecting HDPE Pipe Fittings requires considering both steady working pressure and transient surge pressure.

Working Pressure

This is the normal operating pressure during regular system function.

Surge Pressure

Also known as water hammer pressure, this short-term pressure spike may exceed normal pressure by 30 to 100 percent depending on system design. To answer What Pressure Ratings Should You Consider When Selecting HDPE Pipe Fittings?, engineers typically apply this formula:

• Design Pressure equals Working Pressure plus Surge Pressure
• Chosen PN must exceed calculated design pressure

Example:

• Working pressure 10 bar
• Surge pressure 3 bar
• Design pressure 13 bar
• Recommended minimum PN16 system

At Ningbo Sunplast Pipe Co., Ltd., our HDPE Pipe Fittings are designed with high impact resistance and slow crack growth resistance. Our factory uses advanced injection molding equipment to ensure uniform wall thickness and structural strength.

Ignoring surge pressure may cause:

• Joint separation
• Electrofusion weld failure
• Long-term fatigue damage

We always recommend selecting one grade higher PN if frequent pressure fluctuations are expected.

What Product Specifications Should You Compare Before Purchasing?

Before finalizing procurement, buyers should evaluate detailed technical specifications beyond just PN rating.

Material Specification

• PE80 or PE100
• Virgin raw material only
• UV resistance additives

Dimensional Range

• 20mm to 1200mm available

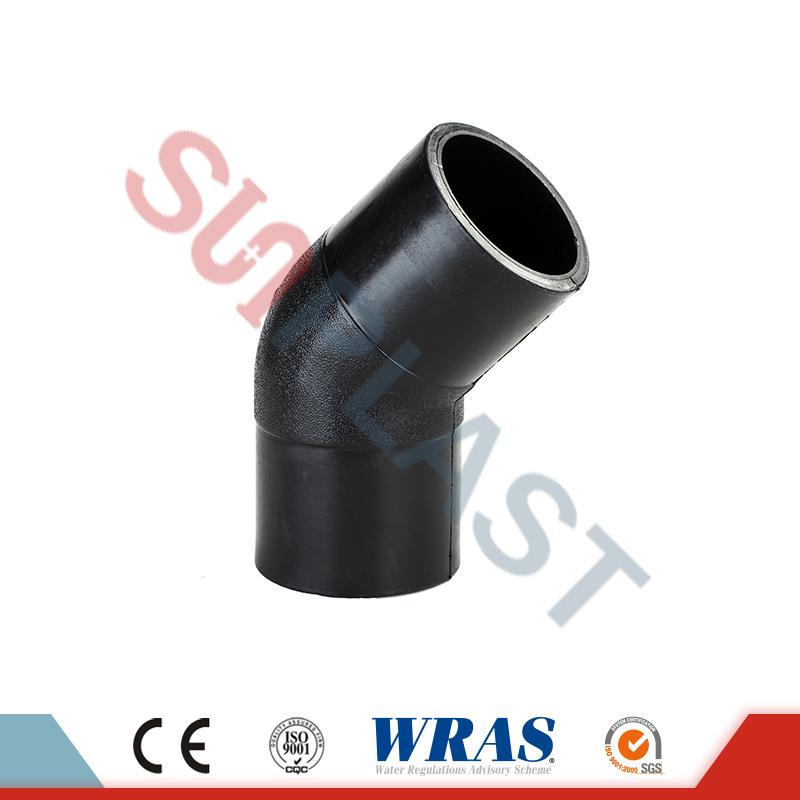

• Butt fusion fittings
• Electrofusion fittings
• Compression fittings

Technical Data of Our HDPE Pipe Fittings

At Ningbo Sunplast Pipe Co., Ltd., our quality control process includes:

• Raw material inspection
• Melt flow index testing
• Hydrostatic pressure testing
• Dimensional verification
• Impact resistance testing

Our factory ensures traceability for every production batch. Ningbo Sunplast Pipe Co., Ltd. supplies HDPE Pipe Fittings to municipal projects, mining industries, agricultural irrigation, and gas distribution sectors worldwide. Choosing a reliable manufacturer like Ningbo Sunplast Pipe Co., Ltd. guarantees consistent pressure performance and long-term reliability.

Conclusion

Understanding What Pressure Ratings Should You Consider When Selecting HDPE Pipe Fittings? requires evaluating PN rating, SDR value, working pressure, surge pressure, temperature derating, and safety factors. A properly selected pressure class ensures operational safety, extended service life, and cost efficiency.

Ningbo Sunplast Pipe Co., Ltd. provides complete technical support and high-quality HDPE Pipe Fittings manufactured under strict international standards. Our engineering team helps customers select appropriate pressure ratings based on real application scenarios. If you are planning a water supply, gas, or industrial pipeline project, contact Ningbo Sunplast Pipe Co., Ltd. today. Our factory is ready to provide customized solutions, competitive pricing, and reliable delivery for your next project.

FAQ

Q1: What Pressure Ratings Should You Consider When Selecting HDPE Pipe Fittings?

You should consider working pressure, surge pressure, SDR value, material grade such as PE100, temperature derating factor, and applicable safety standards. The selected PN must exceed the calculated design pressure including transient loads.

Q2: How does temperature affect pressure rating in HDPE systems?

As temperature increases above 20 degrees Celsius, allowable working pressure decreases. A reduction factor must be applied to ensure the fitting operates within safe stress limits over its service life.

Q3: Is PN16 always better than PN10 for HDPE Pipe Fittings?

PN16 provides higher pressure resistance but may increase project cost. The correct rating depends on calculated system pressure, surge allowance, and economic optimization rather than simply choosing the highest class.

Q4: Can HDPE Pipe Fittings handle water hammer?

Yes, when properly selected. The design pressure must include surge pressure values. Choosing one grade higher PN often improves resistance to transient pressure spikes.

Q5: What standards ensure reliable pressure performance?

International standards such as ISO 4427 and EN 12201 define pressure classes, testing methods, and safety factors. Compliance ensures long-term hydrostatic strength and structural reliability.
