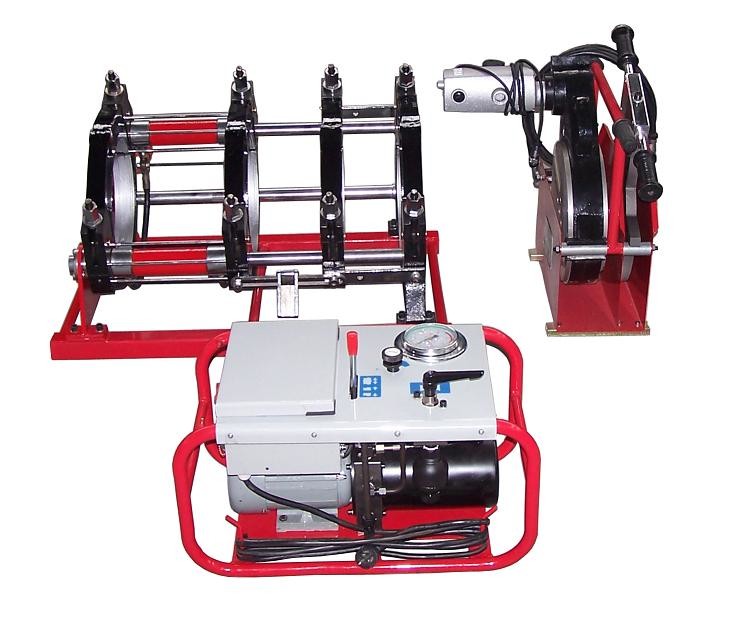

Automatic Butt Welding Machine with Hydraulic Station


Basic Info

  • Type: Butt Welders

  • Model: SP-012

  • HS Code: 85152900

  • Current: Alternating Current

  • Application: Aerospace

Product Description

SUNPLAST starts fusion machine and PE fittings production since 2000.
Products are widely distributed all over the world.


We are dedicated to provide the excellent products and service to our customer, and making the high quality pipe line.  Let the installation easier and faster is our target.

We take the customer's benefits is most important, the quality of our products is our life line.

After more than 8 years exporting, we have made so many friends and build the health relationships around the world. We are so proud that we are growing with friends together.

SUNPLAST wants to find more partner, please contact for more info and FREE samples for evaluation.

Our major products includes:
1: A complete range of EF fittings(Advantaged products: EF coupler up to 1400mm, EF saddle up to 2500*1000mm, Small Tapping Tee)
2: A complete range of BF fittings( Advantaged products: Flange Stub up to 1600mm in different standard, tee/elbow up to 630mm, reducer/cap up to 1000mm)
3: A complete range of drainge fittings for toliet and kitchen
4: A complete range of butt fusion machine up to 2000mm( Specially developped for Australian and South Africa market FM225 and FM355, Advantaged products: Automatic Fusion Machine for gas industry)
5: A complete range of electrousion machine up to 1000mm( English, Russian, Spanish Operation)
6: overseas technical support and service.

Any interest, pls contact with us. or check our website

Automatic Butt Fusion Machine Definition
The whole welding process is executed according to procedure which is programmed in the controlling center. The operator inputs specification of pipe and other related parameter, the machine will finish the whole welding process according to the order.
Welding parameter includes: Welding Temperature, Pressure in different welding phase.
Up to now, there is still no other way to check the quality of welding joint unless the operator destroys the joint.
Thus, to guarantee the joint quality, the only way is to implement welding regulation strictly. Automatic butt fusion machine can reduce the influence resulted from the man-made factor to the maximum extent.

Welding phase control
A: Automatically check whether the pipe is fixed well.
B: Automatically start the milling and finished the milling.
C: Automatically check the precise initial pressure.
D: Automatically control the height of fusion loop.
E: Automatically control the heat absorption time.
F: Automatically control the heating plate take-out time.
G: Automatically control the pressure increase process.
O: Automatically control the cooling process.

Item AFM-250 AFM-315
Pipe Range Φ 250-Φ 90 Φ 315-Φ 110
Power Supply 1-phase 220V                                          1-phase 220V
Heater Power 1.8KW 2.2KW
Facer Power 1.1KW                                                                1.1KW
Hydraulic Power 0.75W 0.75W
Total Power 3.65KW 4.05KW
Environ. Temp. -10-45  degree                                      -10-45degree
Heater Temp. Rise 20-30Min                                                        20-30Min
Pressure Range 0.3~7.6Mpa                                                0.3~7.6Mpa
Hydraulic Surface 1298mm2 954mm2
Standard TGS D2002China DVS2207-1German ISO11414International
