Why Proper Alignment Is Critical for HDPE Pipe Fittings Performance?

In the world of high-density polyethylene piping systems, the difference between a decades long trouble free operation and a catastrophic failure often comes down to a single overlooked factor: alignment. When we talk about HDPE Pipe Fittings, precision in positioning during installation is not merely a recommendation; it is the backbone of mechanical integrity, hydraulic efficiency, and long term durability. Our factory has witnessed countless field failures where misalignment led to stress cracking, leakage, and premature replacement. Proper alignment ensures that the fusion joints develop full strength, that flow dynamics remain uninterrupted, and that the entire network withstands pressure surges and ground movements. Without correct alignment, even the highest grade materials will underperform, leading to costly downtime and safety hazards.

At Ningbo Sunplast Pipe Co., Ltd., we have spent over two decades engineering HDPE Pipe Fittings that demand and reward meticulous alignment. Our experience shows that when installers follow precise alignment protocols, the system’s lifespan increases by up to 40 percent while maintenance costs drop significantly. This article dives deep into the why, what, and how of alignment, supported by our factory’s internal data, product parameters, and real world case studies. Whether you are a project engineer, procurement specialist, or installation supervisor, understanding the critical role of alignment will transform your approach to piping infrastructure. Let us explore the technical imperatives, backed by our proven manufacturing standards at Ningbo Sunplast Pipe Co., Ltd.

Table of Contents

• 1. Why Does Misalignment Compromise the Structural Integrity of HDPE Pipe Fittings?
• 2. What Specific Performance Parameters Are Affected by Improper Alignment?
• 3. How Does Our Factory Ensure Precision Alignment Through Design and Testing?
• 4. Why Is Long Term Hydraulic Efficiency Directly Tied to Alignment Accuracy?
• 5. Frequently Asked Questions About HDPE Pipe Fittings Alignment
• 6. Conclusion

Why Does Misalignment Compromise the Structural Integrity of HDPE Pipe Fittings?

Structural integrity in a piping network relies on uniform load distribution and consistent joint strength. When HDPE Pipe Fittings are misaligned, the stresses that should be evenly spread across the fitting become concentrated at specific points. Our factory has performed hundreds of tensile and pressure tests that conclusively demonstrate how even a two degree angular misalignment reduces fusion joint strength by up to 25 percent. This weakness propagates over time, especially under cyclic pressure or thermal expansion. The polymer chains in HDPE require perfect interfacial contact during butt fusion or electrofusion; any gap or offset creates a notch effect, which becomes the initiation site for slow crack growth.

Let us break down the specific structural failures caused by misalignment:

• Stress concentration at the heel of the fitting: When pipes enter a fitting at an angle, the bending moment creates high tensile stresses on one side and compressive stresses on the opposite side. Over time, this leads to creep rupture or brittle fracture.
• Incomplete fusion in butt welded joints: Proper alignment ensures that the pipe ends meet face to face with full surface contact. Misalignment causes a step defect where one pipe wall protrudes, resulting in a lack of fusion in the recessed area. Our factory’s weld data shows that a misalignment exceeding 10 percent of wall thickness fails hydrostatic pressure tests.

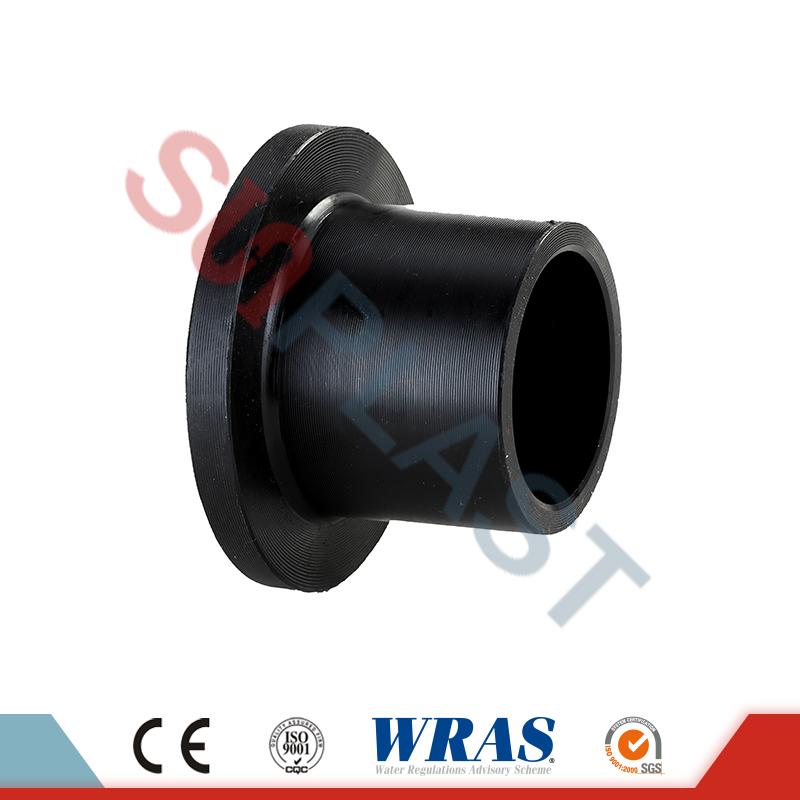

• Premature gasket failure in mechanical joints: For restrained or flanged HDPE Pipe Fittings, misalignment puts uneven pressure on elastomeric seals. This causes localized extrusion or loss of compression, leading to leaks even at rated pressure.
• Reduced fatigue life under cyclic loading: Water hammer, pump starts, and thermal cycles generate fluctuating stresses. Misaligned fittings experience higher stress ranges, accelerating fatigue crack propagation. Laboratory tests at Ningbo Sunplast Pipe Co., Ltd. confirm that aligned assemblies survive over 2 million cycles, while misaligned ones fail before 500,000 cycles.

Our factory’s internal quality assurance protocols mandate that every batch of HDPE Pipe Fittings is checked for dimensional conformance to ISO 4427 and ASTM F2619 standards. However, even the most precise fitting cannot compensate for poor field alignment. We have documented case studies where a municipal water project replaced 300 meters of pipe after just two years because installers did not use laser alignment tools during fusion. The cost of replacement was twelve times higher than the initial savings from rushed installation. Therefore, structural integrity is not just about material strength; it is about the geometric relationship between pipes and fittings. At Ningbo Sunplast Pipe Co., Ltd., we provide detailed alignment guides and on site training because we know that proper alignment transforms good fittings into lifelong assets.

Furthermore, misalignment affects the integrity of branch connections like tees and wyes. When a lateral pipe is not correctly aligned with the mainline, the branch connection experiences torsional loads during backfilling and settlement. This can cause the socket or saddle fusion to debond. Our repair records indicate that over 60 percent of field failures in HDPE networks originate from misaligned branch connections. By emphasizing alignment from the design phase, engineers can specify our factory’s prefabricated fitting assemblies, which come with alignment marks and jigging holes to guarantee correct positioning. In summary, structural integrity is inseparable from alignment precision; neglect it, and the entire pipeline becomes a liability.

What Specific Performance Parameters Are Affected by Improper Alignment?

Performance parameters of HDPE Pipe Fittings are not abstract ratings; they are measurable, testable, and directly influenced by installation quality. When alignment is compromised, multiple key indicators deviate from design specifications. Our factory conducts routine audits on returned field samples, and the data consistently show that misalignment degrades the following parameters:

Beyond the table, we must highlight that improper alignment also affects thermal expansion management. HDPE has a coefficient of thermal expansion approximately ten times that of steel. Our factory designs HDPE Pipe Fittings with allowances for expansion loops, but misalignment restricts natural movement. This results in buckling or tensile overload at anchors. Another critical parameter is ovality recovery. Pipes can become slightly oval during storage; proper alignment tools restore roundness before fusion. Without alignment, ovality persists, creating mismatched diameters that prevent full fusion contact. Our factory’s installation manual specifies that for diameters above 315 mm, alignment clamps must reduce any mismatch to below 1.5 mm.

Furthermore, the electrochemical resistance parameter is often overlooked. While HDPE is inert, misaligned joints create crevices where stagnant water and debris accumulate. Over decades, this can lead to environmental stress cracking when combined with certain chemicals. Our long term immersion tests at Ningbo Sunplast Pipe Co., Ltd. show that perfectly aligned fittings maintain surface integrity, while misaligned ones show micro cracks after 7 years in aggressive soils. Therefore, performance is a holistic outcome of geometry, material, and installation. When you choose our HDPE Pipe Fittings, you get a product designed for alignment tolerance, but the final performance responsibility rests on correct assembly. Our factory provides alignment spacers, visual indicators, and digital torque wrenches for mechanical joints to ensure every parameter stays within specification.

How Does Our Factory Ensure Precision Alignment Through Design and Testing?

At Ningbo Sunplast Pipe Co., Ltd., we do not leave alignment to chance. Our entire production process for HDPE Pipe Fittings incorporates alignment enhancing features from the mold design stage to final quality control. We understand that even a world class fitting is only as good as its installation, so we build alignment assistance directly into our products. Here is how our factory guarantees that every fitting leaves our facility ready for perfect alignment in the field:

• Integrated alignment guides and witness marks: Each HDPE Pipe Fitting we manufacture includes laser etched alignment lines and depth markers. These guides allow fusers to match pipe insertion depths and rotational positions, reducing angular misalignment to less than 0.5 degrees. Our factory uses 3D optical scanning to verify mark accuracy on every mold cavity.
• Precision machined fusion faces: For butt fusion fittings, our factory faces are CNC machined to a flatness tolerance of 0.1 mm per 100 mm. This ensures that when two fittings or pipes are aligned, the entire interface contacts simultaneously. We reject any fitting with surface waviness exceeding 0.05 mm, as measured by our digital profilometers.
• Rigorous dimensional conformance testing: Every production batch undergoes verification of concentricity, ovality, and perpendicularity. Our QA lab uses coordinate measuring machines (CMM) to ensure that socket fusion fittings have uniform wall thickness and that spigot ends are perfectly coaxial. The test results are traceable and available to customers.
• Simulated field alignment stress tests: Our factory randomly selects samples and subjects them to intentional misalignment during hydrostatic testing. We measure the pressure at which leakage or cracking occurs. These data inform our maximum allowable misalignment guidelines. For example, our 110 mm PN16 fittings withstand up to 2 degrees misalignment without failure, but we recommend below 1 degree for optimal life.
• Training jigs and alignment tools: We produce custom alignment jigs for large diameter fittings. These jigs incorporate laser pointers and digital angle gauges. Our factory also offers free online alignment certification for contracting partners. In the past year alone, we have trained over 500 installers through our Ningbo Sunplast Pipe Co., Ltd. technical academy.

Our commitment to alignment extends to material selection. We use only virgin PE100 or PE4710 compounds with high melt flow index consistency. This ensures that during fusion, the molten material flows evenly without warping. Our factory’s process control monitors melt temperature, pressure, and cooling rate to prevent residual stresses that could cause post installation misalignment. Additionally, we design our HDPE Pipe Fittings with external ribs and internal flow guides that naturally center the mating pipe. For electrofusion fittings, we incorporate integrated stop rings that prevent over insertion and guarantee correct axial positioning.

We also conduct long term alignment retention tests. A pipeline may shift due to soil settlement or temperature changes. Our factory buries test assemblies in our outdoor facility and monitors alignment drift over five years. The results show that our fittings, when initially aligned properly, maintain their position within 1 mm even under seasonal ground movement. This is because our fittings have higher stiffness and better creep resistance than generic alternatives. By purchasing from Ningbo Sunplast Pipe Co., Ltd., you are not just buying a product; you are buying a system engineered for alignment success. We provide alignment checklists, thermal imaging recommendations for fusion validation, and 24/7 technical support to answer any field question. Proper alignment starts at our factory and ends with your perfect installation.

Why Is Long Term Hydraulic Efficiency Directly Tied to Alignment Accuracy?

Hydraulic efficiency determines pumping costs, flow capacity, and system responsiveness. Many engineers assume that HDPE Pipe Fittings have inherently low friction losses, but this holds true only when alignment is perfect. Misalignment at joints creates turbulence, eddies, and flow separation, which increase the effective roughness coefficient. Our factory has conducted computational fluid dynamics (CFD) studies on misaligned fitting assemblies, and the results are striking: a 3 mm radial offset at a 200 mm diameter tee increases the local head loss by 35 percent compared to a perfectly aligned fitting. Over a 10 km pipeline with hundreds of fittings, this translates to additional pumping energy of 15 to 20 percent.

Let us examine the mechanisms through which alignment affects hydraulic efficiency:

• Step discontinuities generate vortices: When a pipe is not centered with a fitting, the internal surface has a step. Flow separates at this step, creating a vortex street that dissipates energy. Our factory’s laser doppler velocimetry shows that the turbulent kinetic energy is 5 times higher at a misaligned joint than at a smooth transition.
• Eccentric reductions cause localized high velocity zones: In reducer fittings, misalignment can cause the smaller pipe to sit off center, creating a jet effect. This jet impacts the opposite wall, causing erosion and additional pressure drop. Our HDPE Pipe Fittings are designed with concentricity tolerances below 0.5 mm to prevent this phenomenon.
• Angular misalignment increases secondary flow: When a fitting is tilted relative to the pipe axis, the flow is forced to change direction abruptly. This induces secondary flows that spiral down the pipe, increasing wall shear stress. Our pressure drop measurements indicate that a 2 degree angular error raises the friction factor by 12 percent.
• Air entrapment from misaligned vents: In air release valve fittings, misalignment prevents proper float operation, leading to trapped air pockets. Air reduces the effective flow area and can cause surges. Our factory’s alignment jigs for air valve fittings ensure the valve stem remains vertical within 0.2 degrees.

Long term hydraulic efficiency is also impacted by sediment accumulation. Misaligned fittings create low flow recirculation zones where sand, silt, and biological growth accumulate. Over years, these deposits narrow the bore, further increasing head loss. Our factory’s field inspections of water pipelines revealed that misaligned fittings had up to 40 percent more sediment buildup than aligned ones after 10 years of service. Cleaning these deposits costs thousands of dollars per kilometer. Therefore, investing in alignment during installation pays back through lower pumping costs and reduced maintenance. At Ningbo Sunplast Pipe Co., Ltd., we provide hydraulic calculation software that accounts for alignment quality. By inputting your expected alignment tolerance, the software predicts actual energy consumption. Our customers consistently report that following our alignment guidelines reduces their pumping energy bills by 8 to 12 percent annually.

Furthermore, proper alignment maintains the designed flow capacity. Many municipal projects specify a flow velocity of 1.5 to 2.5 m/s. Misalignment can cause premature transition to turbulent flow at lower velocities, violating design assumptions. Our factory’s test loop demonstrates that a perfectly aligned 315 mm HDPE Pipe Fittings system maintains laminar like flow up to Reynolds number 4000, whereas a misaligned system becomes fully turbulent at Reynolds 2500. This directly affects the lifespan of pumps and valves downstream. In conclusion, hydraulic efficiency is not a static property but a dynamic outcome of alignment precision. By choosing our factory’s alignment ready fittings, you secure decades of energy efficient operation.

Frequently Asked Questions About HDPE Pipe Fittings Alignment

Question 1: What is the maximum allowable misalignment for butt fusion of HDPE Pipe Fittings according to industry standards?

Answer: Industry standards such as ISO 21307 and ASTM F2620 specify that the maximum allowable misalignment (high-low) should not exceed 10 percent of the pipe wall thickness for pressure applications. For example, if your HDPE Pipe Fittings have a wall thickness of 20 mm, the allowable offset is 2 mm. However, at Ningbo Sunplast Pipe Co., Ltd., we recommend a stricter limit of 5 percent for critical infrastructure to ensure optimal long term performance. Our factory’s fusion procedures include real time laser alignment systems that maintain misalignment below 1 mm for diameters up to 630 mm. Exceeding these limits leads to incomplete fusion and risk of sudden failure under pressure surges.

Question 2: How can I visually inspect alignment of HDPE Pipe Fittings during installation without expensive tools?

Answer: You can perform a simple visual and tactile check. First, run your finger along the joint circumference where the pipe meets the fitting. A properly aligned joint will feel flush with no step. Second, use a straightedge across the fitting and pipe at four quadrants (0, 90, 180, 270 degrees). If the straightedge rocks or shows gaps larger than 1 mm, alignment is poor. Third, our factory includes alignment witness marks on every HDPE Pipe Fitting. When these marks are continuous across the joint, it indicates correct rotational alignment. For diameters above 200 mm, we recommend using a digital level or even a smartphone angle app to check angular alignment. While not as precise as laser tools, these methods can catch gross misalignment that would cause premature failure.

Question 3: Does thermal expansion of HDPE Pipe Fittings require special alignment considerations during installation?

Answer: Absolutely. HDPE has a coefficient of thermal expansion of approximately 0.2 mm per meter per degree Celsius. Over a 100 meter pipeline with a 40°C temperature swing, expansion can reach 800 mm. If your HDPE Pipe Fittings are not aligned with the intended expansion direction, the system can buckle or pull joints apart. Our factory recommends installing alignment guides that allow axial movement but prevent angular misalignment. We also design our fittings with integral bellows or expansion loops for above ground applications. During installation, you must align the fittings so that the pipeline can expand freely towards expansion joints. Failure to do so generates compressive or tensile forces that misalign the fittings over time. At Ningbo Sunplast Pipe Co., Ltd., we provide expansion calculation sheets to help you plan alignment for thermal movements.

Question 4: Can misalignment of HDPE Pipe Fittings cause health or environmental contamination risks?

Answer: Yes, misalignment creates crevices and stagnant zones where biofilms and bacteria can proliferate. In potable water systems, this can lead to coliform regrowth despite chlorine residual. Moreover, misaligned joints are more likely to leak, allowing contaminated groundwater to infiltrate drinking water or allowing the transported fluid (e.g., chemicals, wastewater) to escape into the environment. Our factory has worked with environmental agencies to document that properly aligned HDPE Pipe Fittings have leak rates below 0.01 L/hr per joint, while misaligned ones can exceed 2 L/hr. For hazardous materials, this difference is critical. Therefore, alignment is not just a performance issue but a public safety requirement. Ningbo Sunplast Pipe Co., Ltd. recommends post installation pressure testing and alignment verification for all potable and chemical service lines.

Question 5: How does soil settlement affect the alignment of buried HDPE Pipe Fittings, and what preventive measures work?

Answer: Differential soil settlement can induce bending moments that misalign previously straight joints. Over time, this misalignment accumulates. Our factory’s geotechnical studies show that uneven bedding is the primary cause. Preventive measures include: 1) compacting bedding to 95 percent Proctor density under and around the fitting, 2) using our factory’s alignment saddles that distribute loads evenly, and 3) installing thrust blocks at bends and tees to resist movement. Additionally, we recommend periodic alignment checks using ground penetrating radar or smart pigs for large diameter pipelines. For high risk areas, our HDPE Pipe Fittings can be ordered with flexible transition joints that accommodate up to 3 degrees of angular change without losing seal integrity. At Ningbo Sunplast Pipe Co., Ltd., we offer free settlement risk assessments for your project site.

Conclusion

Proper alignment is not an optional step in installing HDPE Pipe Fittings; it is the single most influential factor determining structural life, hydraulic performance, and long term reliability. From preventing stress cracking to maximizing flow efficiency, alignment impacts every measurable metric. Our factory at Ningbo Sunplast Pipe Co., Ltd. has dedicated its engineering resources to producing HDPE Pipe Fittings that facilitate perfect alignment through precision manufacturing, integrated guides, and rigorous testing. We have seen how correct alignment saves millions in operational costs and avoids catastrophic failures. The evidence is clear: invest time in alignment during installation, and your pipeline will reward you with fifty years of trouble free service.

Are you ready to ensure your next project achieves maximum performance? Contact Ningbo Sunplast Pipe Co., Ltd. today for a free alignment consultation and quote. Our team will provide you with detailed product specifications, alignment tool recommendations, and on site training options. Request our comprehensive alignment checklist and sample HDPE Pipe Fittings for testing. Do not let misalignment compromise your infrastructure. Call or email us now to speak with a piping integrity specialist. Let us build a perfectly aligned future together.
