PERT-AL-PERT Multilayer Pipe

PERT-AL-PERT multilayer pipe is designed primarily for underfloor and radiator heating or being increasingly used on the installation of drinking water.

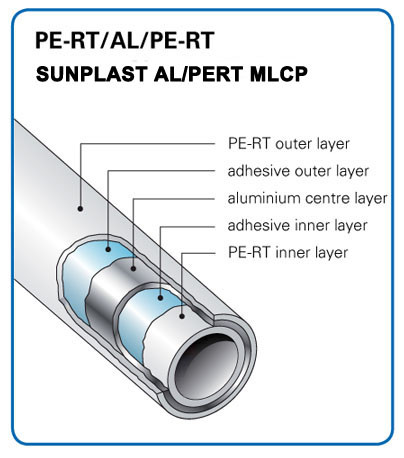

Same to PERT-AL-PERT pipe, PERT-AL-PERT multilayer pipe is also a composite pipe with 5 layers structure, called: “PERT-Adhesive-Aluminum-Adhesive-PERT”. The PERT material in outer & inner makes the pipe that can bear max. 95temperature water, the aluminum core layer that is welded by seamless laser welding (or overlap welding) greatly strength the pipe’s intensity, make it available to withstand max. PN1.0Mpa pressure for long time use. At the same time, the aluminum core is 100% oxygen-barrier. In a word, PERT-AL-PERT multilayer pipe has all benefits of both plastic pipe & steel pipe (such as flexible to bend, high temperature resistant, oxygen barrier, corrosion free.,etc.)



Specifications

SUNPLAST PERT-AL-PERT multilayer pipe comes in nominal pipe sizes ranging from 12mm to 32mm, also labelled as diameter (NPS) sizes from 3/8” to 1”.

Specification

Outer Dia.

Inner Dia.

Wall Thick

Alu. Thick

Coil Length

(mm)

(inch)

(mm)

(mm)

(mm)

(mm)

(m/coil)

0912

3/8"

12

9

1.5

0.15~0.20

50/100/200/300/500

1216

1/2"

16

12

2.0

0.16~0.20

50/100/200/300/500

1620

5/8"

20

16

2.0

0.20~0.25

50/100/200

2025

3/4"

25

20

2.5

0.25~0.30

50/100

2026

3/4"

26

20

3.0

0.25~0.30

50/100

2632

1"

32

26

3.0

0.25~0.30

50/100

P    PERT-AL-PERT MULTILAYER PIPE - click to view our price list



Main Features Of SUNPLAST PERT-AL-PERT Multilayer Pipe

PEX-AL-PEX Multilayer Pipe1. SUNPLAST PERT-AL-PERT multialyer pipe is made into GB/T18997 standard. At the same time, it can confirm to ASTM F 1281/1282 & EN ISO 21003 standard.



2. SUNPLAST mainly adopts the high quality PERT material from South Korea S.K. Company, which is recognized as one of the best quality material in the world.



3. SUNPLAST PERT-AL-PERT multilayer pipe can be serviced at max. 95℃ temperature water & withstand max. 1.0Mpa pressure for long time use.



4. SUNPLAST PERT-AL-PERT multilayer pipe is regularly supplied in various colors: white/red colors for hot water supply, yellow color for indoor gas. Other colors available as per customers’ request.

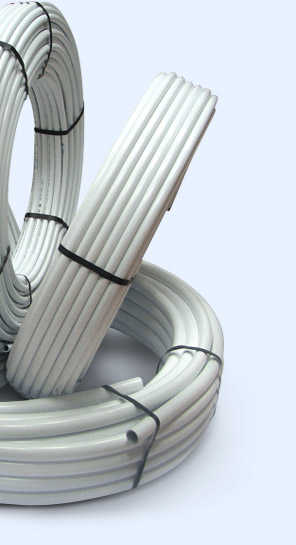

5. Our standard exporting packing method is by coils, 12/16/20mm pipe can be packed in 50-500m length while 25/26/32mm be in 50m/100m length. The outer packing can be  brown paper or cartons, inside be wrapped by plastic films.



6. SUNPLAST can also provide PEX-AL-PEX compression fittings & PEX-AL-PEX press fittings, which is designed for our PERT-AL-PERT multilayer pipe



7. PEX-AL-PEX pipe installation tools are also available in SUNPLAST, like cutter, reamer, bending springs, press tools that are auxiliary tools for PERT-AL-PERT multilayer pipe



8. SUNPLAST PERT-AL-PERT multilayer pipe can fully meet with all requirements that requested in our standard, with technical parameter as below:

Specif.

  (mm)

Min. pipe

burst pressure

(Mpa)

Min. pipe

 ring strength

(N)

Hydrostatic

strength

(Mpa)

Working

temperature

(℃)

Working

Pressure

(Mpa)

1216

6.0

2300

2.72

-4095

1.0

1418

6.0

2300

2.72

-4095

1.0

1620

5.0

2500

2.72

-4095

1.0

2025

4.0

2500

2.72

-4095

1.0

2026

4.0

2500

2.72

-4095

1.0

2632

4.0

2650

2.72

-4095

1.0





SUNPLAST is ready to provide our best quality PERT-AL-PERT Multilayer Pipe to all customers around the world.
