PEX-AL-PEX Press Fittings

Brass PEX-AL-PEX Press Fittings

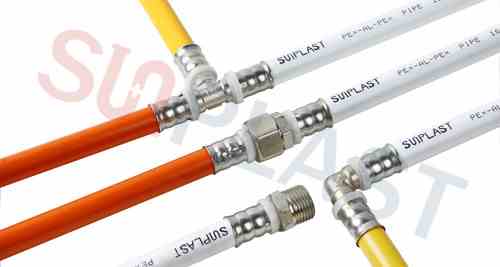

PEX-AL-PEX press fittings (U profile) are designed for PEX-AL-PEX multilayer pipe specially. It is an innovative fittings, which is developed according to the international advanced technology, and has been the mainstream fittings in Europe & the USA that are for PEX-AL-PEX multilayer pipe.

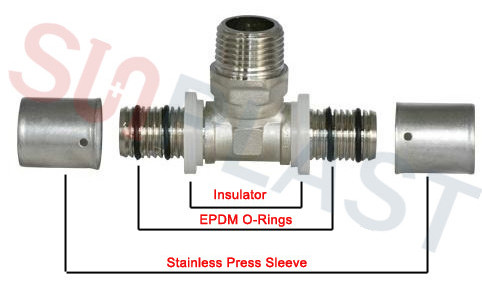

The PEX-AL-PEX press fittings (U profile) are consisted of four parts: brass body, stainless steel press sleeve, EPDM O-rings & Insulators:

Brass PEX-AL-PEX press fittings

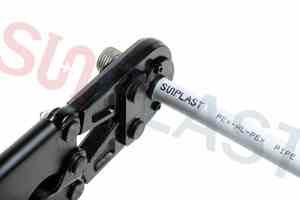

PEX-AL-PEX press fittings installationWhen connect the PEX-AL-PEX press fittings, a special press tools shall be used. The permanent compression plastic deformation of the stainless steel press sleeve by using the special press tool makes the PEX-AL-PEX press fittings are more stable & safer for long time use. The double EPDM O-rings design provides a perfect sealing performance & ensures a 100% leaking-free in the piping system for long-term use.


SUNPLAST PEX-AL-PEX press fittings can be manufactured in a diameter of 16mm, 20mm, 25mm or 26mm & 32mm, with regular with regular configurations: coupler, reducing coupler, female or male thread coupler, elbow, reducing elbow, female or male thread elbow, wall-plated female elbow, tee, reducing tee, female or male thread tee, end cap.,etc. Click to view PEX-AL-PEX PRESS FITTINGS to download our price list.


Main Features:

1. The PEX-AL-PEX press fittings are designed for PEX-AL-PEX multilayer pipe only, it is not suitable for PEX pipe.

2. The PEX-AL-PEX press fittings are "U" profile type, which can be connected by U profile jaws

3.  SUNPLAST can provide special press tools for the PEX-AL-PEX press fittings.

4. SUNPLAST PEX-AL-PEX press fittings are made of high quality brass material, like 58-2 brass, DZR brass or lead-free brass.,etc.

5. The PEX-AL-PEX press fittings are made into ASTM F 1281 standard and are compatible with all types and brands of PEX-AL-PEX multilayer pipe made to the same standard from the other suppliers.

6. The PEX-AL-PEX press fittings can be provided in two colors for option: original or nickel-plated.


Contact us freely if you are interested in our PEX-AL-PEX press fittings.
