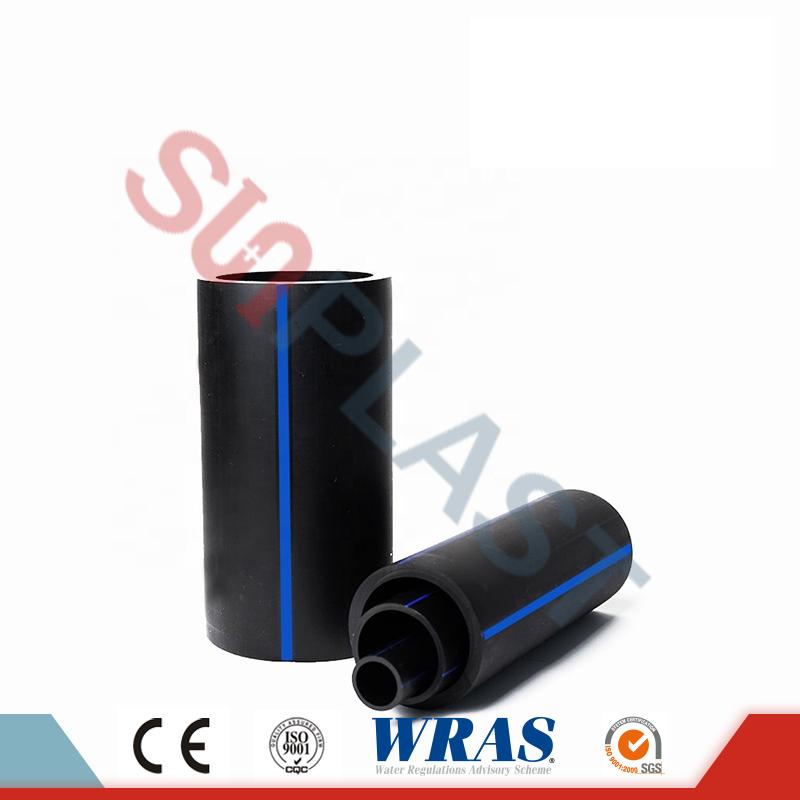

HDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply
  • HDPE Pipe (Poly Pipe) In Black/Blue Color For Water SupplyHDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply
  • HDPE Pipe (Poly Pipe) In Black/Blue Color For Water SupplyHDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply
  • HDPE Pipe (Poly Pipe) In Black/Blue Color For Water SupplyHDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply

HDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply

ISO4427/4130/BS EN 12201 standard HDPE Pipe (Poly Pipe) in black/blue color for Water Supply,produced from dn20-1200mm with pressure rating of PN5-PN20 bars,high quality warranted with 15 years,approved by CE certificate & BS6920 test report, complete HDPE pipe fittings available. Contact us for more details of HDPE water supply pipe from SUNPLAST!!

Send Inquiry    PDF DownLoad

Product Description

HDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply

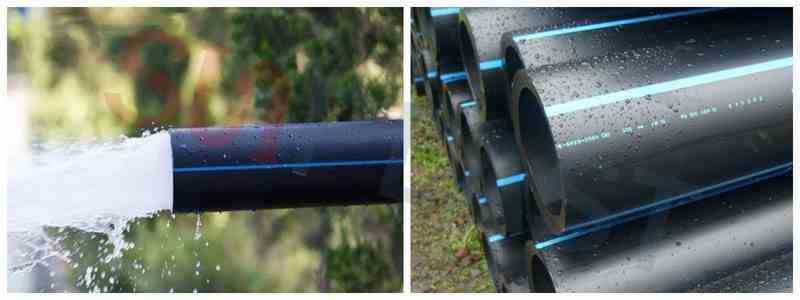

HDPE Pipe For Water

HDPE pipe, also called high density polyethylene pipe or poly pipe, which is a ideal solution for drinkable water supply. SUNPLAST HDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply, which is made by superior quality PE80 or PE100 raw material from worldwide famous material suppliers, are made into manufactured into ISO4427 standard, at the same time, it can also conform to EN12201/AS4130 standards.


Brief Details

Product name

HDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply

Specification available

DN20-1200mm (outer diameter)

SDR/pressure ratings

For HDPE Pipe be made of PE100 grade material:

SDR9-PN20, SDR11-PN16, SDR13.6-PN12.5, SDR17-PN10, SDR21-PN8, SDR26-PN6, SDR33-PN5

For HDPE pipe be made of PE80 grade material:

SDR9-PN16, SDR11-PN12.5, SDR13.6-PN10, SDR17-PN8, SDR21-PN6, SDR26-PN5, SDR33-PN5

Material to be used

Virgin PE80 or PE100 raw material  from worldwide famous suppliers, like Borealis, Sabic, Sinopec..etc

Colors available

Black color with blue strips or blue color, or as per request

Standards that follow to

ISO 4427, AS/NZS 4130, EN12201, DIN 8077/8078, other international standards.

Markings on the pipe

As per customer's request.

Samples available

Yes,small quantity of samples available.

Packing method

Pipe dia. dn20-63mm be in coils with 100m/200m length

Pipe dia. Dn75-1200mm shall be packed in bars with 5.8m or 11.8m length

MOQ

Negotiable

Production lead time

3-5 days for a 20ft container, 5-7 days for a 40ft container.

Warranty time

15 years for normal use

Payment term

T/T or LC at sight

FOB loading port

Ningbo or Shanghai China

Place of origin

Ningbo, China


Product Specifications

SUNPLAST HDPE Pipe (Poly Pipe) In Black/Blue Color For Water Supply can be supplied with a diameter dn20-1200mm, and the SDR ratings of SDR9/SDR11/SDR13.6/SDR17/SDR21/SDR26/SDR33.

SDR Ratings

SDR33

SDR26

SDR21

SDR17

SDR13.6

SDR11

SDR9

Normal Pressure (bars)

For PE100

5

6

8

10

12.5

16

20

For PE80

4

5

6

8

10

12.5

16

Norminal Diameter

dn (mm)

Wall Thickness

e (mm)

20











2.0

2.3

25









2.0

2.3

3.0

32







2.0

2.4

3.0

3.6

40





2.0

2.4

3.0

3.7

4.5

50



2.0

2.4

3.0

3.7

4.6

5.6

63



2.5

3.0

3.8

4.7

5.8

7.1

75



2.9

3.6

4.5

5.6

6.8

8.4

90



3.5

4.3

5.4

6.7

8.2

10.1

110



4.2

5.3

6.6

8.1

10.0

12.3

125



4.8

6.0

7.4

9.2

11.4

14.0

140



5.4

6.7

8.3

10.3

12.7

15.7

160



6.2

7.7

9.5

11.8

14.6

17.9

180



6.9

8.6

10.7

13.3

16.4

20.1

200



7.7

9.6

11.9

14.7

18.2

22.4

225



8.6

10.8

13.4

16.6

20.5

25.2

250



9.6

11.9

14.8

18.4

22.7

27.9

280



10.7

13.4

16.6

20.6

25.4

31.3

315

9.7

12.1

15.0

18.7

23.2

28.6

35.2

355

10.9

13.6

16.9

21.1

26.1

32.2

39.7

400

12.3

15.3

19.1

23.7

29.4

36.3

44.7

450

13.8

17.2

21.5

26.7

33.1

40.9

50.3

500

15.3

19.1

23.9

29.7

36.8

45.4

55.8

560

17.2

21.4

26.7

33.2

41.2

50.8

62.5

630

19.3

24.1

30.0

37.4

46.3

57.2

70.3

710

21.8

27.2

33.9

42.1

52.2

64.5

79.3

800

24.5

30.6

38.1

47.4

58.8

72.6

89.3

900

27.6

34.4

42.9

53.3

66.2

81.7



1000

30.6

38.2

47.7

59.3

72.5

90.2



1200

36.7

45.9

57.2

67.9

88.2






Technical parameter

The superior performances of SUNPLAST HDPE water pipes comply with the standard ISO4427, see the below table for its physical performance:

Item

Technical Index

Density (g/cm³)

0.941~ 0.965

Black Carbon Content

2 ~ 2.5%

Vica Softening Point  (℃)

≥126

Melt Flow Rate, 190℃, 5kg   (g/10min)

0.2 ~ 1.4

Longitudinal Shrinking Rate

≤3%

Elastic Modulus  (Mpa)

600 ~ 900

Coefficient Of Linear Expansion  (mm/m℃)

0.16 ~ 0.20

Oxidation Induced Time , 200℃ (min)

≥20

Extension Rate Break

≥350%

Hydraulic test for PE100 pipe

20℃,100h, Circumferential Stress 12.4Mpa

No leakage/no rupture

80℃,165h, Circumferential Stress 5.5Mpa

No leakage/no rupture

80℃,1000h, Circumferential Stress 5.0Mpa

No leakage/no rupture

Hydraulic test for PE80 pipe

20℃,100h, Circumferential Stress 9.0Mpa

No leakage/no rupture

80℃,165h, Circumferential Stress 4.6Mpa

No leakage/no rupture

80℃,1000h, Circumferential Stress 4.0Mpa

No leakage/no rupture

<Note>: Black Carbon Content is only applicable to HDPE water pipes with black color.


HDPE Fittings & HDPE Pipe Welding Machine

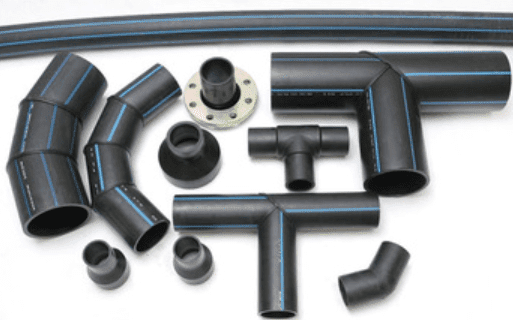

HDPE pipe fittings For Water

SUNPLAST is a integrated provider of HDPE piping systems. To support the connection of our HDPE pipe, we are also able to provide full ranges of HDPE pipe fittings & welding machines.

The HDPE pipe fittings that we can provide:

※ DN20-110mmPP compression fittings

※ DN63-800mminjection mouded HDPE butt fusion fittings

※ DN20-630mmHDPE electrofusion fittings

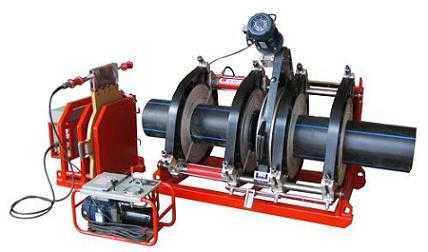

HDPE pipe welding machines for waterThe HDPE pipe welding machine available:

※ DN20-110mmHDPE pipe socket fusion welding machine

※ DN63-800mmHDPE pipe butt fusion welding machine

※ DN20-630mm HDPE pipe electrofusion welding machine


 Raw Material we use

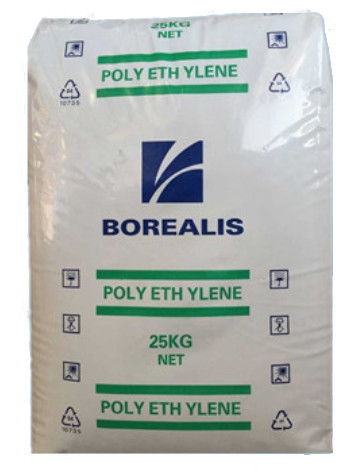

HDPE pipe materialMaterial of excellent performance is one of the qualification with produce the topping piping system. SUNPLAST company generally adopts TOP QUALITY raw materials from worldwide reputed suppliers, such as HE3490-LS from Borealis, P6006 from Sabic, YGH041T fromSinopec..etc, which is recognized as the most reliable HDPE material in the worldwide by PE100+ association (see:www.pe100plus.com). The preferable performance of those materials and their stability establish the high quality station of SUNPLAST HDPE piping products and fittings on the markets.


Quality Certificates

We always feel that all success of our company is directly related to the quality of the products we offer. They meet the highest quality requirements as stipulated in ISO9001, ISO14000:14001 guidelines and our stringent quality control system.



SUNPLAST HDPE pipes are approved by various certificates, such ISO4427 certificate, CE certificate, as well as BS6920 test reporters.

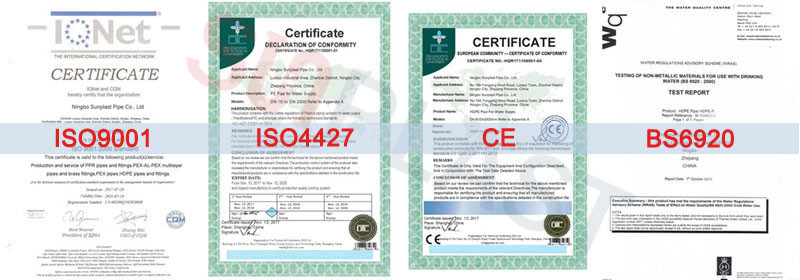

HDPE PIPE CERTIFICATE


Shipment

SUNPLAST is a premier manufacturer of HDPE piping systems in China, and our products have been exporting to more than 30 countries all over the world.



 SUNPLAST commits to provide the best quality HDPE piping systems to all customers in worldwide, and we look forward to becoming your reliable partner for HDPE pipe.

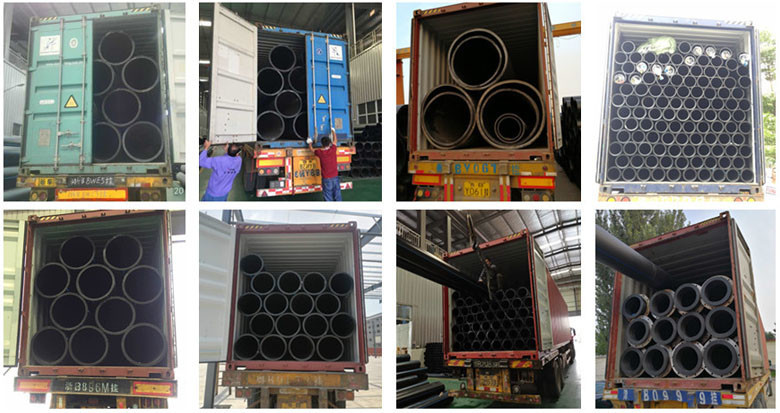

HDPE pipe shipment

Contact us

Contact us freely for any inquiries on our products by following:
Email: export@sunplastpipe.com

           sunplastpipe@gmail.com
Telephone: 0086-574-87226883
Fax: 0086-574-87467583
Mob: 0086-15968493053

24 hours on line contact:
whatsApp: 0086-15968493053

Skype: polypipe-manufacturer


Sunplast, through over 15 years' development, is now known as one of the leading manufacturers and suppliers of hdpe pipe (poly pipe) for water sewer & drainage in China. Our factory has introduced many advanced technologies and equipments into it. Please be free to buy the quality and low price products made in China from us.
