PEX-AL-PEX Pipe Fittings

To connect the PEX-AL-PEX multilayer pipe, PEX-AL-PEX pipe fittings are used. Unlike the other thermalplast pipe that can be connected by heat-fusion technology, PEX-AL-PEX multilayer pipe can be installed by mechanical fittings only.


SUNPLAST can offer PEX-AL-PEX pipe fittings in a diameter of 16mm, 18mm, 20mm, 26mm & 32mm, with regular configurations: coupler, reducing coupler, female or male thread coupler, elbow, reducing elbow, female or male thread elbow, wall-plated female elbow, tee, reducing tee, female or male thread tee, end cap.,etc.



SUNPLAST PEX-AL-PEX pipe fittings can be mainly provided two categories:

PEX-AL-PEX Compression Fittings

 PEX-AL-PEX compression fittings

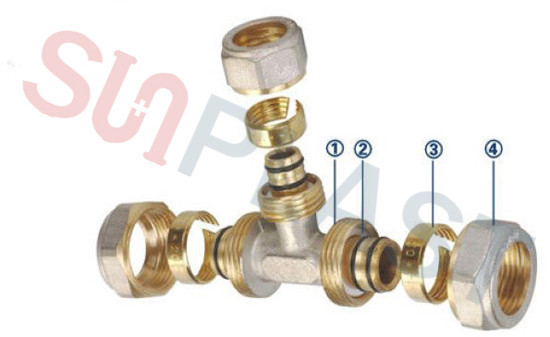

PEX-AL-PEX compression fittings are the most common fittings that are designed for SUNPLAST PEX-AL-PEX multilayer pipe, which is a kind of “insert-type fittings” . The fittings mainly include four parts:  brass body; EPDM O-rings; ③ compression nuts;  compression rings.

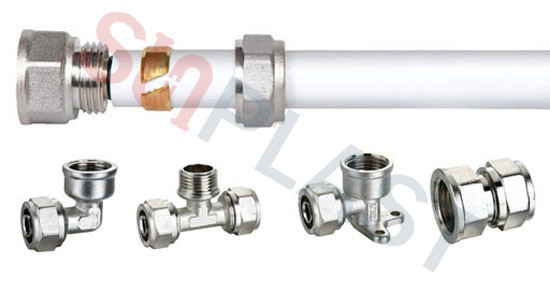

PEX-AL-PEX Brass Compression fittings

The PEX-AL-PEX compression fittings can be produced in a diameter of 16mm, 18mm, 20mm, 26mm & 32mm.

Check PEX-AL-PEX COMPRESSION FITTINGS to download the price list


The PEX-AL-PEX compression fittings repute many advantages as below:

※ Easy installation: No need special tools, only two wrenches can work.

※ Water tight designthe PEX-AL-PEX compression fittings owes two EPDM O-rings on the body, which can prevent the fittings from leaking.

※ Corrosion free: The fittings are made of high quality brass, which is corrosion resistant.

※ Can be recycled use to save resource.


PEX-AL-PEX PRESS FITTINGS

 PEX-AL-PEX press fittings

PEX-AL-PEX press fittings are alsoinsert-type fittings, which is designed for PEX-AL-PEX multilayer pipe specially.



Same to PEX-AL-PEX compression fittings, PEX-AL-PEX press fittings are also made by superior quality brass material, available for various configurations (like Tee, elbow, coupler...) & reputed most advantages that PEX-AL-PEX compression fittings have (such as water tight design, corrosion free, recycled use).

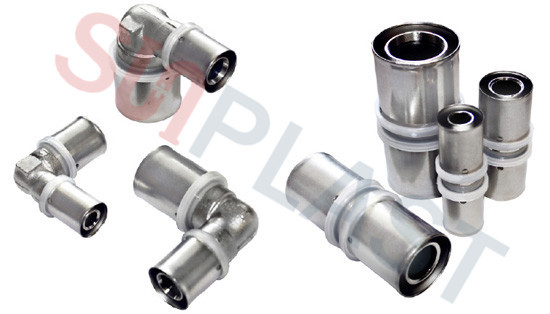

 PEX-AL-PEX Brass Press Fittings

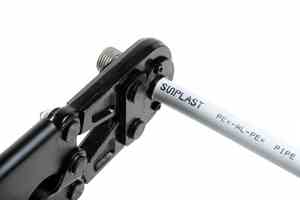

Different to PEX-AL-PEX compression fittings, the PEX-AL-PEX press fittings shall be installed by special press tools with special clamps.


SUNPLAST can provide PEX-AL-PEX press fittings in a diameter of 16mm, 20mm, 25mm or 26mm & 32mm.

Check PEX-AL-PEX PRESS FITTINGS to download the price list.


SUNPLAST PEX-AL-PEX pipe fittings are made by superior brass material, like 57-3, 58-2 or DZR brass, which is suitable for hot water plumbing & heating systems. Customized brass material is also available to us.



At the moment, the PEX-AL-PEX pipe fittings can be supplied in 2 colors as per customers’ requests, which are original brass & nickel-plated.
