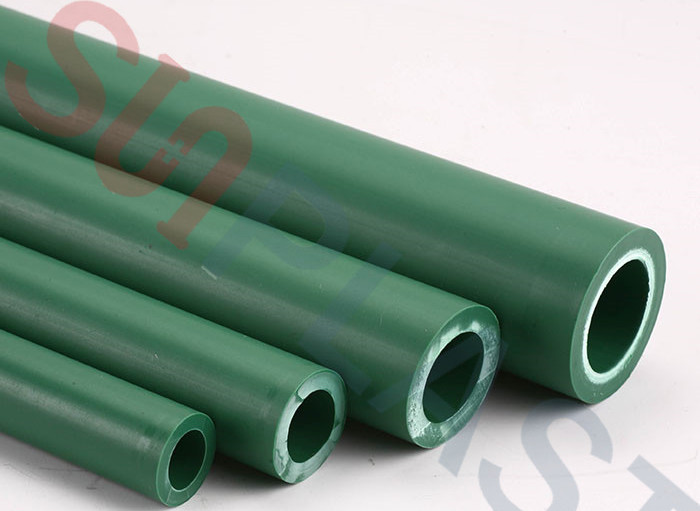

PPR Pipes

PPR pipe, also called Polypropylene Random Copolymer pipe, has been widely used for cold & hot water plumbing & heating systems around the world. It offers all advantages of plastics like overall durability, lightweight, corrossion resistance and flexibility. The most important is, PPR pipe is designed to resist temperature of max. 95and high pressure of max. PN20 bars encountered in hot water systems for long time service.



 PPR pipe is considered as the optimal pipe material for cold and hot water systems. Pipes & fittings made from polypropylene random copolymer exhibit superior performance for hot and cold water plumbing of residential buildings, commercial complexes, offices and hotels.

 PPR Pipes For Water



Specifications

SUNPLAST PPR pipes can be provide from dn20-110mm, with pressure ratings PN10 bars/PN12.5 bars/PN16 bars/PN20 bars.

PPR Pipe

Standard: GB/T 18742 , DIN 8077/8078, EN ISO 15874

S5/ PN10bars

S4/ PN12.5bars

S3.2/ PN16bars

S2.5/ PN20bars

20×2.0

20×2.3

20×2.8

20×3.4

25×2.3

25×2.8

25×3.5

25×4.2

32×2.9

32×3.6

32×4.4

32×5.4

40×3.7

40×4.5

40×5.5

40×6.7

50×4.6

50×5.6

50×6.9

50×8.3

63×5.8

63×7.1

63×8.6

63×10.5

75×6.8

75×8.4

75×10.3

75×12.5

90×8.2

90×10.1

90×12.3

90×15.0

110×10.0

110×12.3

110×15.1

110×18.3

 Click to view  PPR PIPES AND FITTINGS to download our price list



Main Features of SUNPLAST PPR pipe

1. SUNPLAST PPR pipes are made into GB/T18742 standards and sanitary requirements. At the same time, it can also conforms to EN ISO 15874 standard &  DIN8077/8078 standard.


2. SUNPLAST PPR pipes are made from high quality material with excellent performance from South Korea Hyosung (brand name: R200P), which is which is recognized as one of the best quality material in the world.


3. SUNPLAST PPR pipes are regularly provided in colors of WHITE, GREEN & GREY, or as per customers’ request. The pipe be used for cold water be marked blue strips (lines), while the pipe for hot water with red strips.


4. The standard length for exporting is 4m, 5.8m or 11.8m length, or as per customers’ request.


5. SUNPLAST PPR pipes have 4 pressure ratings: PN10 bars/PN12.5 bars/PN16 bars/PN20 bars.

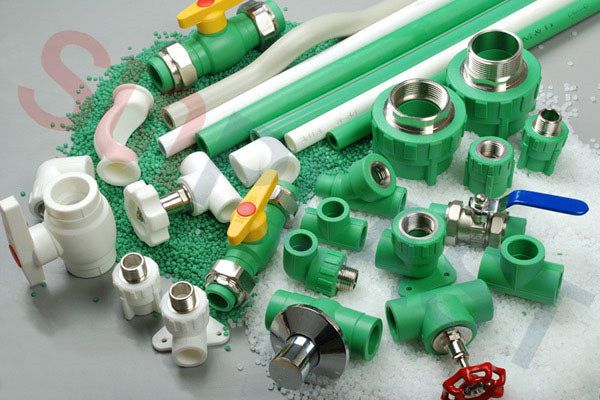

6. SUNPLAST can also provide full range of PPR pipe fittings in green/white/grey colors. All fittings are PN25 bars, which can be used for connecting of any pressure ratings of pipe.

PPR PIPE FITTINGS

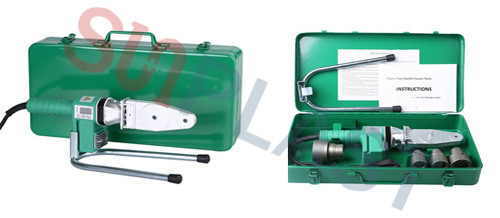

7. SUNPLAST can also provide PPR pipe welding machines.

PPR PIPE WELDING MACHINE


8. The The superior performances of SUNPLAST PPR pipes can fully meet with all requirements on GB/T18742 standards & EN ISO 15874 standards:

Characteristic

Requirements

Test Methods

Physical characteristics for PPR pipe

Impact resistance of PPR pipe

(0℃)

10%

ISO 9854

Longitudinal reversion of PPR pipe

(135℃)

≤2%

EN 743

Thermal stability by hydrostatic pressure testing of PPR pipe

(110℃, 1.9Mpa)

No bursting during the test period

EN921



Melt Flow Rate of PPR pipe

(2.16Kg,230℃,10min.)

30 % maximum difference compared with compound

ISO 1133

Mechanical characteristics for PPR pipe

Resistance to internal pressure

Hydrostatic (hoop) stress 16.0Mpa; Temperature 20℃; Test time 1 hour

No failure during the test period

EN 921



Hydrostatic (hoop) stress 5.1Mpa; Temperature 95℃; Test time 22 hour

No failure during the test period

Hydrostatic (hoop) stress 4.2Mpa; Temperature 95℃; Test time 165 hour

No failure during the test period

Hydrostatic (hoop) stress 3.5Mpa; Temperature 95℃; Test time 1000 hour

No failure during the test period



 SUNPLAST is ready to provide our best quality PPR pipes to all customers around the world.


For 24 hours contact details as below:


Email: [email protected] sunplastpipe.com

           [email protected]

Tel: 0086-574-87226883/87467583

Mobile/whatsApp/Wechat: 0086-15968493053/18858041865
