Whats HDPE Pipe Fittings?

HDPE pipe fittings, also called polyethylene pipe fittings or poly fittings, are used for the connection of HDPE piping systems.


Regularly, the HDPE pipe fittings are available in most common configurations of couplers, tees, reducers, elbows, stub flanges & saddles.,etc.


Whats the the major difference between the HDPE pipe fittings that are made by PE80 material & PE100 material?

The HDPE pipe fittings made by “PE80 material”, are also called PE80 fittings, while “PE100 fittings” means the HDPE pipe fittings made by PE100 material.


PE80 fittings & PE100 fittings are the most common HDPE pipe fittings in the markets.


The major difference between the PE80 fittings & PE100 fittings are density, MFR(melt-flow rate), viscous stress & quasi-static stress. The PE100 material has a higher strain hardening modulus than PE80 material, that makes the HDPE pipe fittings made by PE100 material can perform a better viscous stress and quasi-static stress, which allow the PE100 fittings has a thinner wall for the same pressure ratings.



For examples: for the HDPE pipe fittings with same diameter & same designed pressure rating, like: DN200-PN10 bars HDPE pipe, the wall thickness will be 11.9mm for PE100 fittings, while for PE80 fittings, the wall thickness will be 14.7mm.



Since PE100 material owes a higher strain hardening modulus & lower MFR, a higher moulding pressure & higher injection temperature shall be requested while producing HDPE pipe fittings made by PE100 material.



What kind of HDPE pipe fittings that SUNPLAST can provide?

SUNPLAST is integrated provider of HDPE piping systems,and we can provide the HDPE pipe fittings with various items & specifications.


The HDPE pipe fittings, which are made by excellent quality material, are the ideal choice for the connection of the HDPE pipe that are made by SUNPLAST.


SUNPLAST HDPE pipe fittings can be provided in various ranges, consisting: PP compression fittings, HDPE butt fusion fittings, HDPE electrofusion fittings.

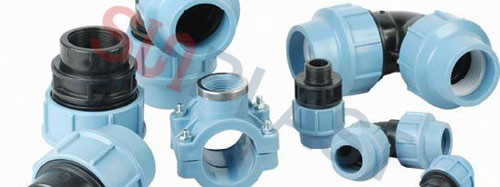

PP Compression Fittings

PP Compression Fittings

The PP compression fittings are the premier choice for small diameter HDPE pipes up to 110mm, especially for water plumbing & irrigation systems.


SUNPLAST can provide PP compression fittings from dn20-110mm with designed pressure ratings PN16 bars.

Product name

Specifications available

Pressure Ratings

configurations

PP Compression Fittings

20/25/32/40/50/63/

75/90/110mm

PN16

Coupler, reducer, Tee, elbow 90 degree,

reducing tee, female/male thread coupler,

female/male thread elbow, female/male thread

 tee, end cap, flanges, clamp saddle

Download our price list SUNPLAST PP compression fittings

Easy to assemble & disassemble, labor cost saving & reliable use are the major performances of PP compression fittings. No welding, no special tools need & fast installation allow the PP compression fittings be widely used for water plumbing & irrigation systems for agriculture and Gardening.

PP compression fittings Specification

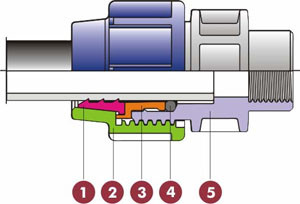

The PP compression fittings are the most frequently used unions. Its components are a plastic accessory (5) with the following elements in each side: one nut to close the system (2), one o-ring (4), one washer or insert (3) and one split ring or clearing (1). This last element, when the pipe is inserted and the nut is tight, makes a pressure on the pipe fixing it. The o-ring provides the perfect sealing of the union.


The PP compression fittings are available in various configurations, like couplers, tees, elbows, reducers, reducing tees, female thread or male thread couplers, female thread or male thread tees, female thread or male thread elbows, clamp saddles, tapping saddles.,etc.

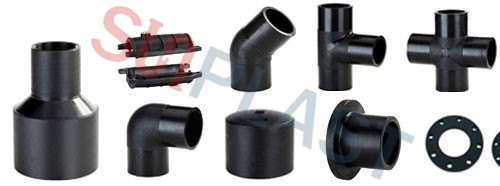

 HDPE Butt Fusion Fittings

HDPE Butt Fusion Fittings

The HDPE butt fusion fittings have become the most common & reliable fittings for HDPE pipe connection.


The HDPE butt fusion fittings allow to adopt a thermofusion process, by using HDPE pipe welding machine to fusion both the ends of HDPE pipe/HDPE pipe fittings simultaneously, then  two end surfaces are then brought together under controlled pressure for a specific cooling time and a homogeneous fusion joint is formed.


SUNPLAST HDPE butt fusion fittings can be provided in a diameter dn63mm to dn1200mm. The diameter DN63-800mm can be injection moulded in SDR17 & SDR11, while DN900-1200mm can be provided in FABRICATED TYPE only.

Product name

Specifications available

Pressure Ratings

configurations

HDPE Butt Fusion Fittings

(Moulded Type)

63/75/90/110/125/140/160/180/

200/225/250/280/315/355/400/

450/500/560/630/710/800

SDR17-PN10

SDR11-PN16

Tee, elbow 90 degree, elbow 45 degree,reducing tee, reducer, end cap, stub flanges

HDPE Butt Fusion Fittings

(Fabricated Type)

900/1000/1200

SDR11/SDR13.6/SDR17/

SDR21/SDR26

Tee, elbow 90 degree, elbow 45 degree,reducing tee, reducer, end cap, stub flanges

Download the price list of HDPE BUTT FUSION FITTINGS


The HDPE butt fusion fittings made by PE100 material can offer a pressure rating of PN16 bars for SDR11 & PN10 bars for SDR17, while PE80 fittings are PN12.5 bars for SDR11 & PN8 bars for SDR17.


SUNPLAST HDPE butt fusion fittings can be offered in various items of reducer, elbows, tees, flanges...etc.

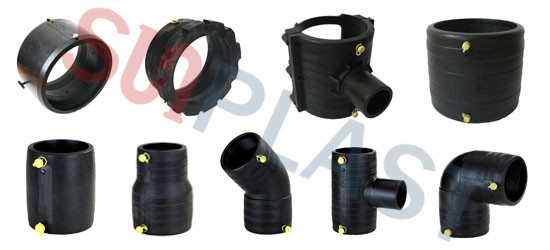

HDPE Electrofusion fittings

HDPE Electrofusion Fittings

HDPE electrofusion fittings are the more reliable & simple solution that are for HDPE pipe connection.


Like HDPE butt fusion fittings, HDPE electrofusion fittings also adopt a thermofusion process to joint to the HDPE pipe, by using HDPE pipe electrofusion machine, the electric power go through the brass wire that is coiled inside the surface of the both of ends of fittings, melting the outer surface of HDPE pipe & inside surface of the HDPE electrofusion fittings.


SUNPLAST can offer HDPE electrofusion fittings from dn20mm to dn630mm with pressure rating SDR11-PN16 bars.

Product name

Specifications available

Pressure Ratings

configurations

HDPE electrofusion Fittings

20/25/32/40/50/63/75/90/110/125/

140/160/180/200/225/250/280/315/

355/400/450/500/560/630

SDR11-PN16

Tee, elbow 90 degree, elbow 45 degree,reducing tee, reducer, end cap, stub flanges, Saddles

Download the price list of HDPE ELECTROFUSION FITTINGS


Which standards does SUNPLAST HDPE pipe fittings be made into?

SUNPLAST HDPE pipe fittings, which are excellent performance, can fully meet with international standards:

HDPE butt fusion fittings: ISO4427-3, ENI2201-3, AS4129

HDPE electrofusion fittings:  ISO4427-3, ENI2201-3, AS4129

PP compression fittings: ISO17885



How does SUNPLAST to assure the quality of the HDPE pipe fittings? What certificate can SUNPLAST provide for HDPE pipe fittings?

SUNPLAST values “product quality” as company’s life.


To guarantee the best quality of the HDPE pipe fittings that are delivered to our customers, we have been executing a strict quality system based on ISO 9001 standard, which are going through the whole production process.


Firstly, we only use the best quality HDPE material from famous suppliers in worldwide, like Borealis, Sinopec, Sabic.,etc, and the materials are approved by PE100+ association (see: www.pe100plus.com). The material with superior quality is the first step to assure the top quality of all HDPE pipe fittings.


Secondly, during the production process, all dimensional inspection & surface inspection (as well as resistivity test for HDPE electrofusion fittings) shall be made by our professional workers, and the testing will be made for each piece of HDPE pipe fittings.


Finally, the final finishing products will be tested in our laboratory. The essential testing for HDPE pipe fittings shall be included:

(1) Density; (2) Melt flow rate; (3) Longitudinal reversion; (4) Tensile strength; (5) Elongation at break; (6) Thermal stability; (7) Internal hydrostatic pressure test.


We assure to our customers, for each HDPE pipe fittings, they have been well tested before shipment.


SUNPLAST HDPE pipe fittings are approved by CE certificate & test reporters issued by creditable international test centers.



Whats the warranty time in quality of HDPE pipe fittings from SUNPLAST?

Theoretically, the HDPE pipe fittings, which are made of virgin material, can be serviced for 50 years for normal use.


SUNPLAST HDPE pipe fittings are all manufactured by the superior quality material, and all can be guaranteed for 15 years for normal use.


HDPE butt fusion fittings & HDPE electrofusion fittings, which one is better?

HDPE butt fusion fittings & HDPE electrofusion fittings, both are the most common used HDPE pipe fittings.


The below is a comparison table between HDPE butt fusion fittings & HDPE electrofusion fittings:

Characteristic

Comparison Between HDPE butt fusion fittings & HDPE electrofusion fittings

Material Costs

The HDPE butt fusion fittings are regular much cheaper prices than HDPE electrofusion fittings. No like electrofusion, the HDPE pipes can be connected by a butt fusion methods, no need special coupler fittings , so less fittings will be requested, and much lower on material costs.

Installation Costs

The HDPE electrofusion fittings can be welded in much simpler way, which can be used for the certain circumstances where butt fusion is not practicable, such as where valves, elbows, and tees must be added. The HDPE pipe electrofusion machine will be much lower on prices. So, HDPE electrofusion fittings will have less installation costs than HDPE butt fusion fittings

Reliability of Jointing

HDPE electrofusion fittings has a more reliable jointing than HDPE butt fusion fittings. The HDPE electrofusion fittings can weld in second times when a leak happens.


It is difficult to distinguish which one is better, because both of them reputes excellent performances. The HDPE electrofusion fittings can save installation costs and provider a more reliable jointing while HDPE butt fusion fittings are much lower on material costs.


In addition, for the HDPE pipe with a diameter higher to 200mm, the HDPE butt fusion fittings are a more efficient and economical option.


Shall we use the HDPE pipe fittings in SDR17-PN10 to connect our HDPE pipe in SDR13.6-PN12.5?

No, to guarantee the stability of the pipeline, the HDPE pipe fittings with higher pressure rating or at least same pressure rating as pipeline shall be adopted.


For examples: the HDPE pipe is SDR17-PN10, then the HDPE pipe fittings SDR17-PN10 or higher pressure SDR11-PN16 shall be requested.


Shall we use the HDPE pipe fittings be made in PE100 material to weld our HDPE pipes made in PE80?

Yes, this is available to work. The heat fusion can be done between different generation of material grade.


But to assure the best welding, please try best to use the same generation of HDPE pipe fittings to weld the HDPE pipe.


What technology do HDPE pipe fittings be made? Is it same to HDPE pipe manufacturing?

The HDPE pipe fittings are made by injection moulded technology. The one-time injection moulded with out any jointing makes the HDPE pipe fittings the most reliable solution for HDPE piping systems.


HDPE pipe is made by extrusion moulding, which is different to HDPE pipe fittings.


Can all HDPE pipe fittings be provided in stock?

To satisfy our customers’ prompt delivery request, SUNPLAST stacks large inventory of HDPE pipe fittings.


Most of HDPE pipe fittings with regular sizes & items are all available in stock, like 63/75/90/110/160/200/250/315/400/450..etc


Whats the packing methods of SUNPLAST HDPE pipe fittings?

For the diameter dn20-315mm HDPE pipe fittings, they are regularly packed by cartons with plastic bags wrapped inside.


For the HDPE pipe fittings with the diameter large to 315mm, they are wrapped by PP bags for each items.


Can SUNPLAST provide HDPE pipe fittings with our logo?

Yes, SUNPLAST can provide HDPE pipe fittings with customers logo marked, when the quantity of order reaches a certain request.


Small quantity of order can be provided in our stock only, which has no logo on it.


How to inquire to SUNPLAST for a quote of HDPE pipe fittings?

 SUNPLAST is ready to provide our best quality HDPE pipe fittings to all customers around the world.



For 24 hours contact details as below:

Email: export@ sunplastpipe.com

            sunplastpipe@gmail.com

Tel: 0086-574-87226883/87467583

Mobile/whatsApp/Wechat: 0086-15968493053/18858041865

View as

HDPE Butt Fusion 90 Degree Elbow

HDPE Butt Fusion 90 Degree Elbow

Injection moulded HDPE Butt Fusion 90 Degree Elbow for HDPE pipes, available 63-800mm in SDR11 & SDR17, high quality warranted with 15 years, competitive wholesale prices, STOCK AVAILBLE for regular sizes, prompt delivery available. Contact us for more details of HDPE Butt Fusion 90 Degree Elbow!!!

Read MoreSend Inquiry
HDPE Butt Fusion 45 Degree Elbow

HDPE Butt Fusion 45 Degree Elbow

Injection moulded HDPE Butt Fusion 45 Degree Elbow for HDPE pipes, available 63-800mm in SDR11 & SDR17, high quality warranted with 15 years, competitive wholesale prices, STOCK AVAILBLE for regular sizes, prompt delivery available. Contact us for more details of HDPE Butt Fusion 45 Degree Elbow!!!

Read MoreSend Inquiry
HDPE Butt Fusion 22.5 Degree Elbow

HDPE Butt Fusion 22.5 Degree Elbow

Injection moulded HDPE Butt Fusion 22.5 Degree Elbow for HDPE pipes, available 110-800mm in SDR11 & SDR17, high quality warranted with 15 years, competitive wholesale prices, stock available for regular sizes, prompt delivery available. Contact us for more details of HDPE Butt Fusion 22.5 Degree Elbow!!!

Read MoreSend Inquiry
HDPE Butt Fusion Cross Fittings

HDPE Butt Fusion Cross Fittings

Injection moulded HDPE Butt Fusion Cross Fittings for HDPE pipes, available 63-630mm in SDR11 & SDR17, high quality warranted with 15 years, competitive wholesale prices, stock available for regular sizes, prompt delivery available. Contact us for more details of HDPE Butt Fusion Cross Fittings!!!

Read MoreSend Inquiry
HDPE Butt Fusion Equal Tee

HDPE Butt Fusion Equal Tee

Injection moulded HDPE Butt Fusion Equal Tee for HDPE pipes, available 63-800mm in SDR11 & SDR17, high quality warranted with 15 years, competitive wholesale prices, stock available for regular sizes, prompt delivery available. Contact us for more details of HDPE Butt Fusion Equal Tee!!!

Read MoreSend Inquiry

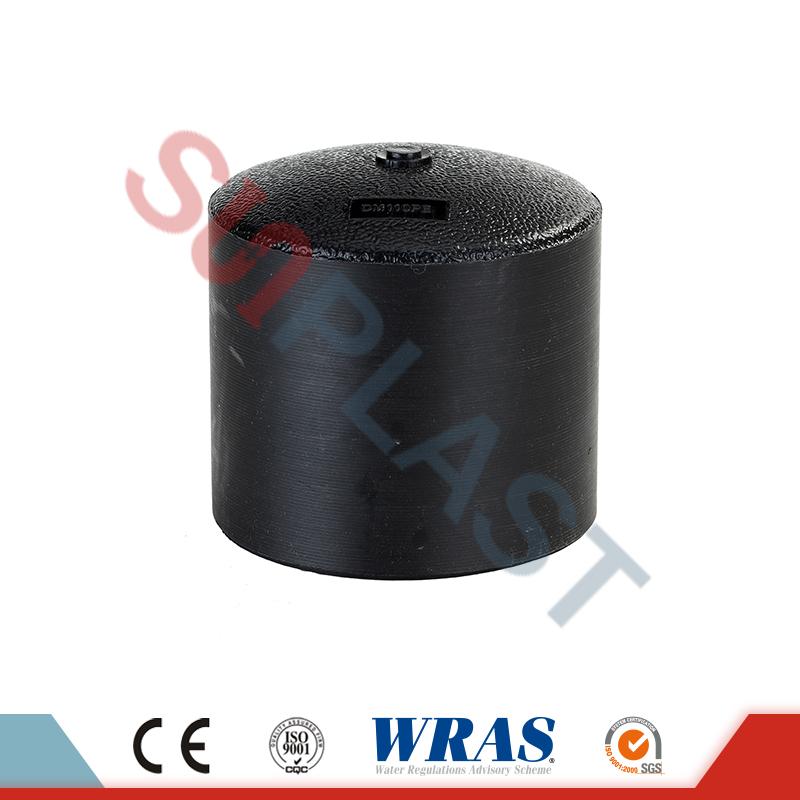

HDPE Butt Fusion End Cap
