HDPE Water Pipe Manufacturers

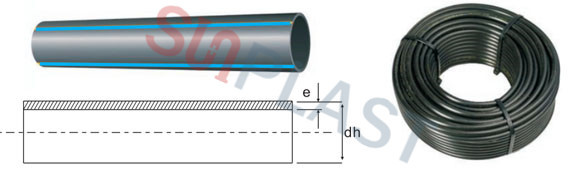

HDPE Water Plumbing PipeHDPE water pipe or HDPE pressure pipe, is the HDPE pipe that are used for water plumbing & drainage systems, fire works.,etc. HDPE water pipe has been the first choice for municipal water supply & drainage systems, because it has superior performance rather than the other traditional piping:

HDPE water Pipe is hygiene, no heavy metal, no poison, no germ, suitable for drinking water for human being.

※ HDPE water pipe is corrosion resistance, resist chemical erosion

※ UV resistance. The HDPE water pipe in black color contains 2-3% carbon black, that makes it is UV-resistance, can be exposed under sunshine.

※ Melt fusion technology. The HDPE water pipe normally be connected by a butt fusion or electrofusion methods. The melt fusion makes the piping systems 100% free leaking.

※ Smooth wall & high flow capacity. The HDPE water pipe smooth wall allows the highest flow capacity of water.

※ 50 years service time in normal use basis.


SUNPLAST can provide HDPE water pipe with diameter dn20-1200mm, and the SDR ratings of SDR9/SDR11/SDR13.6/SDR17/SDR21/SDR26/SDR33.

HDPE pipe specifications

SDR Ratings

(Standard Dimension Rate)

SDR33

SDR26

SDR21

SDR17

SDR13.6

SDR11

SDR9

Normal Pressure (PN) For

PE80 (Mpa)

0.4

0.5

0.6

0.8

10

12.5

16

Normal Pressure (PN) For

PE100 (Mpa)

0.5

0.6

0.8

1.0

12.5

16

20

Norminal Diameter

dn (mm)

Wall Thickness

e (mm)

20











2.0

2.3

25









2.0

2.3

3.0

32







2.0

2.4

3.0

3.6

40





2.0

2.4

3.0

3.7

4.5

50



2.0

2.4

3.0

3.7

4.6

5.6

63



2.5

3.0

3.8

4.7

5.8

7.1

75



2.9

3.6

4.5

5.6

6.8

8.4

90



3.5

4.3

5.4

6.7

8.2

10.1

110



4.2

5.3

6.6

8.1

10.0

12.3

125



4.8

6.0

7.4

9.2

11.4

14.0

140



5.4

6.7

8.3

10.3

12.7

15.7

160



6.2

7.7

9.5

11.8

14.6

17.9

180



6.9

8.6

10.7

13.3

16.4

20.1

200



7.7

9.6

11.9

14.7

18.2

22.4

225



8.6

10.8

13.4

16.6

20.5

25.2

250



9.6

11.9

14.8

18.4

22.7

27.9

280



10.7

13.4

16.6

20.6

25.4

31.3

315

9.7

12.1

15.0

18.7

23.2

28.6

35.2

355

10.9

13.6

16.9

21.1

26.1

32.2

39.7

400

12.3

15.3

19.1

23.7

29.4

36.3

44.7

450

13.8

17.2

21.5

26.7

33.1

40.9

50.3

500

15.3

19.1

23.9

29.7

36.8

45.4

55.8

560

17.2

21.4

26.7

33.2

41.2

50.8

62.5

630

19.3

24.1

30.0

37.4

46.3

57.2

70.3

710

21.8

27.2

33.9

42.1

52.2

64.5

79.3

800

24.5

30.6

38.1

47.4

58.8

72.6

89.3

900

27.6

34.4

42.9

53.3

66.2

81.7



1000

30.6

38.2

47.7

59.3

72.5

90.2



1200

36.7

45.9

57.2

67.9

88.2



Download our price list SUNPLAST HDPE WATER PIPE


The main features of SUNPLAST HDPE water pipe:

1. The HDPE water pipe manufactured into ISO4427 standard, at the same time, it can also conform to EN12201/AS4130 standards. The pipe is honored with various certificates issued by creditable test center in the worldwide, such as ISO4427 certificate, CE certificate.,etc.


2. SUNPLAST HDPE water pipes are made of superior PE100 or PE80 raw materials from famous manufacturers, such as: HE3490-LS from Borealis, CRP100 from Basell and YGH041T from Sinopec, etc, which is certified as the highest quality HDPE material in the world.


3. The color of HDPE water pipes will be black with blue strips or blue color. HDPE pipes & fittings with black color should contain 2%-2.5% black carbon, so they are UV-resistant.


4. The standard length for exporting is 5.8 meters or 11.8 meters for container loading. Pipe diameter less than 63mm would be packed in coil, also it could be decided at clients’ request


5. The superior performances of SUNPLAST HDPE water pipes comply with the standard ISO4427, see the below table for its physical performance:

Item

Technical Index

Density (g/cm³)

0.941~ 0.965

Black Carbon Content

2 ~ 2.5%

Vica Softening Point  (℃)

≥126

Melt Flow Rate, 190℃, 5kg   (g/10min)

0.2 ~ 1.4

Longitudinal Shrinking Rate

≤3%

Elastic Modulus  (Mpa)

600 ~ 900

Coefficient Of Linear Expansion  (mm/m℃)

0.16 ~ 0.20

Oxidation Induced Time , 200℃ (min)

≥20

Extension Rate Break

≥350%

Hydraulic test for PE100 pipe

20℃,100h, Circumferential Stress 12.4Mpa

No leakage/no rupture

80℃,165h, Circumferential Stress 5.5Mpa

No leakage/no rupture

80℃,1000h, Circumferential Stress 5.0Mpa

No leakage/no rupture

Hydraulic test for PE80 pipe

20℃,100h, Circumferential Stress 9.0Mpa

No leakage/no rupture

80℃,165h, Circumferential Stress 4.6Mpa

No leakage/no rupture

80℃,1000h, Circumferential Stress 4.0Mpa

No leakage/no rupture

<Note>: Black Carbon Content is only applicable to HDPE water pipes with black color.


6.  SUNPLAST HDPE water pipe has 7 SDR grades:SDR33, SDR26, SDR21, SDR17, SDR13.6, SDR11 & SDR9. Different SDR has different PN for PE100 pipes & PE80 pipes. See below:

HDPE Water Pipe

SDR (Standard Dimension Ration)

SDR9

SDR11

SDR13.6

SDR17

SDR21

SDR26

SDR33

PN, bar (Normal Working Pressure)

PE80 Pipe

PN16

PN12.5

PN10

PN8

PN6

PN5

PN4

PE100 Pipe

PN20

PN16

PN12.5

PN10

PN8

PN6

PN5



7.  SUNPLAST can provide full ranges of HDPE pipe fittings for our HDPE water pipe, including: PP compression fittings, HDPE butt fusion fittings & HDPE electrofusion fittings

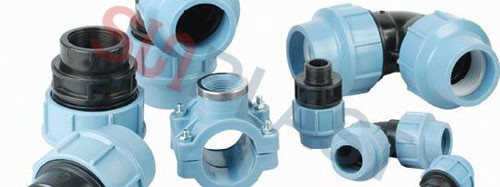

PP compression fittings

PP Compression Fittings

The PP compression fittings are regularly used for the HDPE pipes with small diameters up to DN110mm. No welding & easy installation has made PP compression fittings to be the first choice for small diameter pipe connection.


SUNPLAST can provide PP compression fittings from dn20mm to dn110mm, with working temperature PN16 bars.


Download our price list for SUNPLAST PP COMPRESSION FITTINGS



 HDPE butt fusion fittings

HDPE Butt Fusion Fittings

The HDPE butt fusion fittings are the most common used fittings for HDPE pipe.



SUNPLAST HDPE butt fusion fittings can be produced in wide diameters dn50-dn1200mm, the diameter dn50-800mm are injection moulded while dn900-1200mm is fabricated type.



The HDPE butt fusion fittings are regular in SDR17-PN10 bars & SDR11-PN16 bars. The fabricated type fittings can be provided at any SDR rating based on pipe.


Download our price list for SUNPLAST HDPE BUTT FUSION FITTINGS

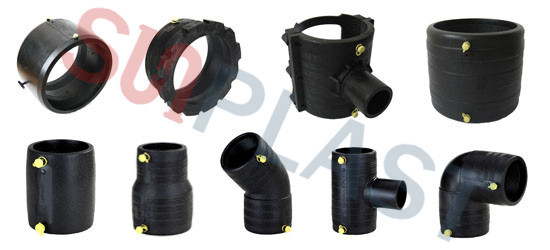

 HDPE electrofusion fittings

HDPE Electrofusion Fittings

HDPE electrofusion fittings provide a more reliable connection for HDPE pipe, which are more & more adopted by our customers.



SUNPLAST HDPE electrofusion fittings can be offered from dn20mm to dn630mm, with pressure rating SDR11-PN16 bars for water.


Download price list of SUNPLAST HDPE ELECTROFUSION FITTINGS


8. The HDPE pipe welding machine can also be provided for our HDPE water pipe. The HDPE pipe welding machine consists HDPE butt fusion welding machine & HDPE electrofusion welding machine.

HDPE pipe butt fusion machine

HDPE pipe butt fusion machine

The HDPE pipe butt fusion machine can be provided in various models, which can be divided into: manual type & hydraulic type.


Manual type is regular for small diameter pipe d50-dn160mm, dn50-dn200mm & dn90-250mm, which is a option of light-weight & cheaper prices.


Hydraulic type: hydraulic type welding machine uses hydraulic pressure to control the HDPE pipe’s movements while welding, providing a certain & stable pressure while welding, which can max. ensure the welding results.


The hydraulic type HDPE pipe butt fusion machine can be produced for all diameters up to 50mm, which are: 63-160mm, 63-200mm, 90-250mm, 160-315mm, 160-355mm, 280-450mm, 280-500mm, 450-630mm, 630-800mm, 710-1000mm, 800-1200mm.


Download the price list of SUNPLAST HDPE PIPE BUTT FUSION MACHINE

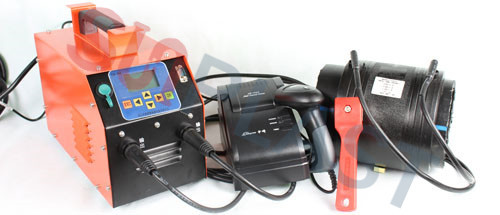

 HDPE pipe electrofusion machine

HDPE pipe electrofusion machine.

SUNPLAST HDPE pipe electrofusion machine is newly designed for the connection of our HDPE electrofusion fittings.



The HDPE pipe electrofusion welding machines can be offered in four models: SPE315 model is available to weld the diameter dn20-315mm, SPE400 model for the diameter dn20-400mm, SPE500 model for the diameter dn20-500mm while SPE630 model is for dn20-630mm.


Download the price list of HDPE PIPE ELECTROFUSION MACHINE




SUNPLAST is ready to provide our best quality HDPE water pipes to all customers around the world.
