PEX-AL-PEX Multilayer Pipe Manufacturers

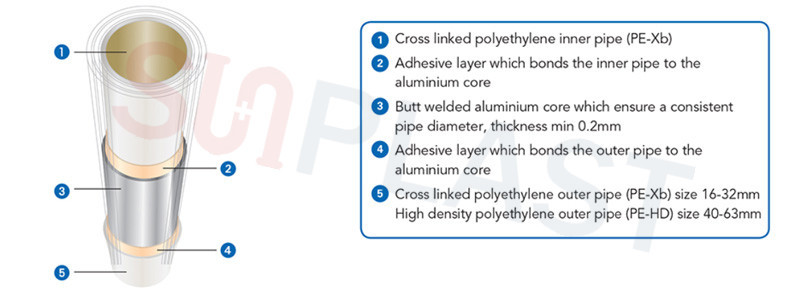

PEX-AL-PEX Multilayer Pipe Structure

PEX-AL-PEX multilayer pipe, also called PEX-AL-PEX pipe, is a composite pipe comprised of 5 layers (PEX-Adhesive-Aluminum-Adhesive-PEX) bonded together. The middle aluminum layer is welded in a seamless laser welding methods (or overlap welding methods). The PEX-AL-PEX multilayer pipe combines all advantages of a metal and plastic pipe:

● Flexible & packed in coils.

PEX-AL-PEX multilayer pipe can be packed in coils with 100m-500m length.

● Resistant against high temperature-and pressure

PEX-AL-PEX multilayer pipe can be serviced at max. 95temperature water, and bear max. 1.0Mpa pressure for long time use.

● Oxygen-impermeable

The aluminum core makes PEX-AL-PEX multilayer pipe 100% oxygen barrier, which can prevent incrustation in the plumbing & heating system

● Hygienically and neutral

PEX-AL-PEX multilayer pipe is hygienically and neutral, no toxic, suitable for drinking water supply.

● Corrosion free

PEX-AL-PEX multilayer pipe is absolute corrosion free, can have a reliable life-time.



Specifications

SUNPLAST PEX-AL-PEX multilayer pipe comes in nominal pipe sizes ranging from 12mm to 32mm, also labelled as diameter (NPS) sizes from 3/8” to 1”.

Specification

Outer Dia.

Inner Dia.

Wall Thick

Alu. Thick

Coil Length

(mm)

(inch)

(mm)

(mm)

(mm)

(mm)

(m/coil)

0912

3/8"

12

9

1.5

0.15~0.20

50/100/200/300/500

1216

1/2"

16

12

2.0

0.16~0.20

50/100/200/300/500

1620

5/8"

20

16

2.0

0.20~0.25

50/100/200

2025

3/4"

25

20

2.5

0.25~0.30

50/100

2026

3/4"

26

20

3.0

0.25~0.30

50/100

2632

1"

32

26

3.0

0.25~0.30

50/100

PEX-AL-PEX MULTILAYER PIPE - click to view our price list


Main Features Of SUNPLAST PEX-AL-PEX Multilayer Pipe

1. SUNPLAST PEX-AL-PEX multialyer pipe is made into GB/T18997 standard. At the same time, it can confirm to ASTM F 1281/1282 & EN ISO 21003 standard.


2. SUNPLAST mainly adopts the high quality PEX-b material from Constab Germany, which is recognized as one of the best quality material in the world.


3. SUNPLAST PEX-AL-PEX multilayer pipe can be serviced at max. 95temperature water & withstand max. 1.0Mpa pressure for long time use.


4. SUNPLAST PEX-AL-PEX multilayer pipe is regularly supplied in various colors: white/red colors for hot water supply, yellow color for indoor gas. Other colors available as per

customers’ request.


5. Our standard exporting packing method is by coils, 12/16/20mm pipe can be packed in 50-500m length while 25/26/32mm be in 50m/100m length. The outer packing can be  brown paper or cartons, inside be wrapped by plastic films.

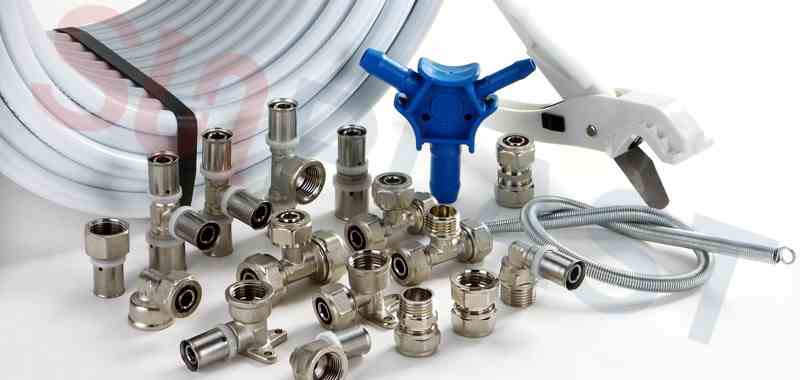

6. SUNPLAST can also provide PEX-AL-PEX compression fittings & PEX-AL-PEX press fittings, which is designed for our PEX-AL-PEX multilayer pipe

PEX-AL-PEX PIPE FITTINGS


7. PEX-AL-PEX pipe installation tools are also available in SUNPLAST, like cutter, reamer, bending springs, press tools that are auxiliary tools for PEX-AL-PEX multilayer pipe


8. SUNPLAST PEX-AL-PEX multilayer pipe can fully meet with all requirements that requested in our standard, with technical parameter as below:

Specif.

  (mm)

Min. pipe

burst pressure

(Mpa)

Min. pipe

 ring strength

(N)

Hydrostatic

strength

(Mpa)

Working

temperature

(℃)

Working

Pressure

(Mpa)

1216

6.0

2300

2.72

-4095

1.0

1418

6.0

2300

2.72

-4095

1.0

1620

5.0

2500

2.72

-4095

1.0

2025

4.0

2500

2.72

-4095

1.0

2026

4.0

2500

2.72

-4095

1.0

2632

4.0

2650

2.72

-4095

1.0





SUNPLAST is ready to provide our best quality PEX-AL-PEX Multilayer Pipe to all customers around the world.
